Engine Assembly: Components

WARNING: This page is about a different variant/trim than selected.

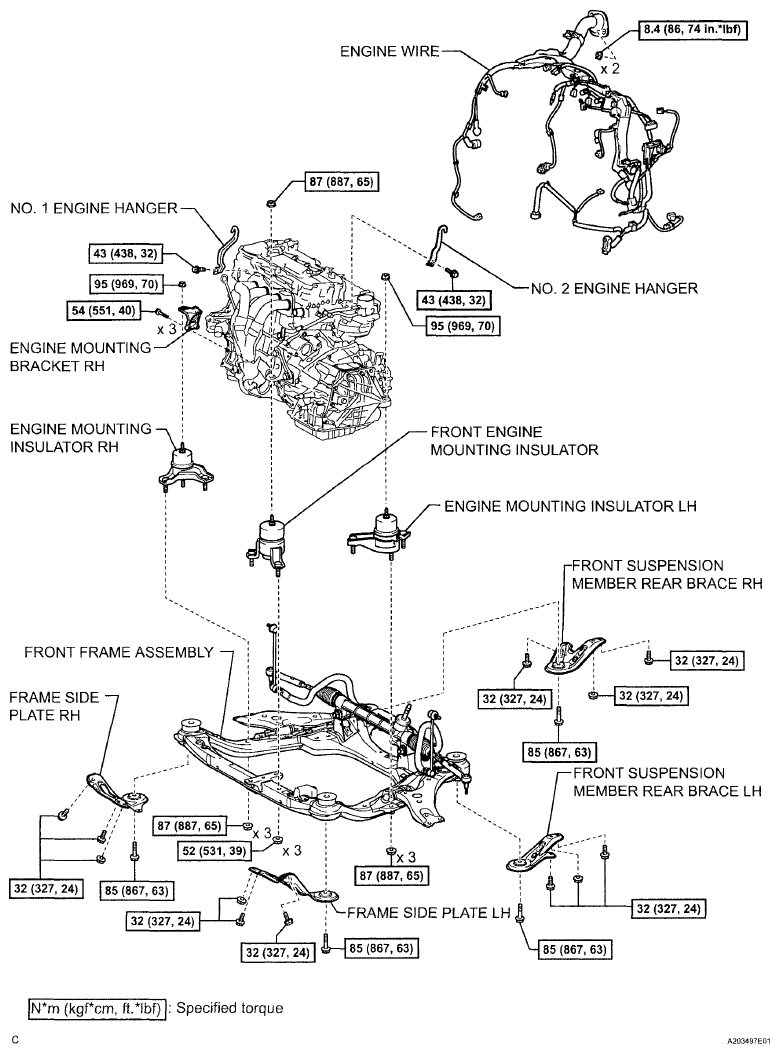

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

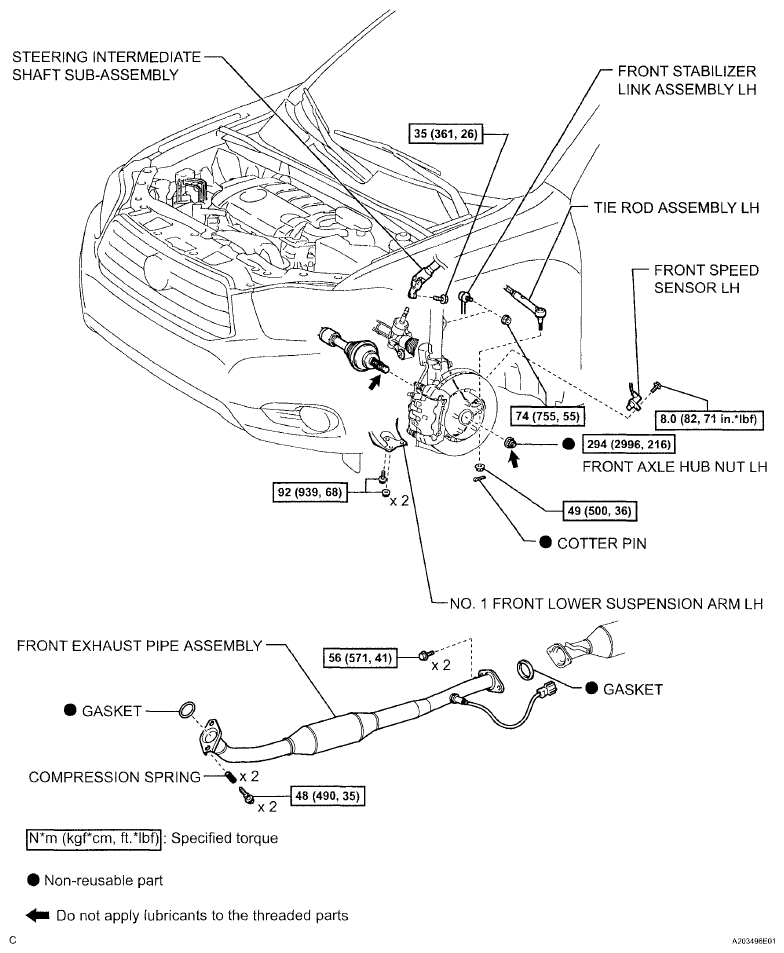

Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

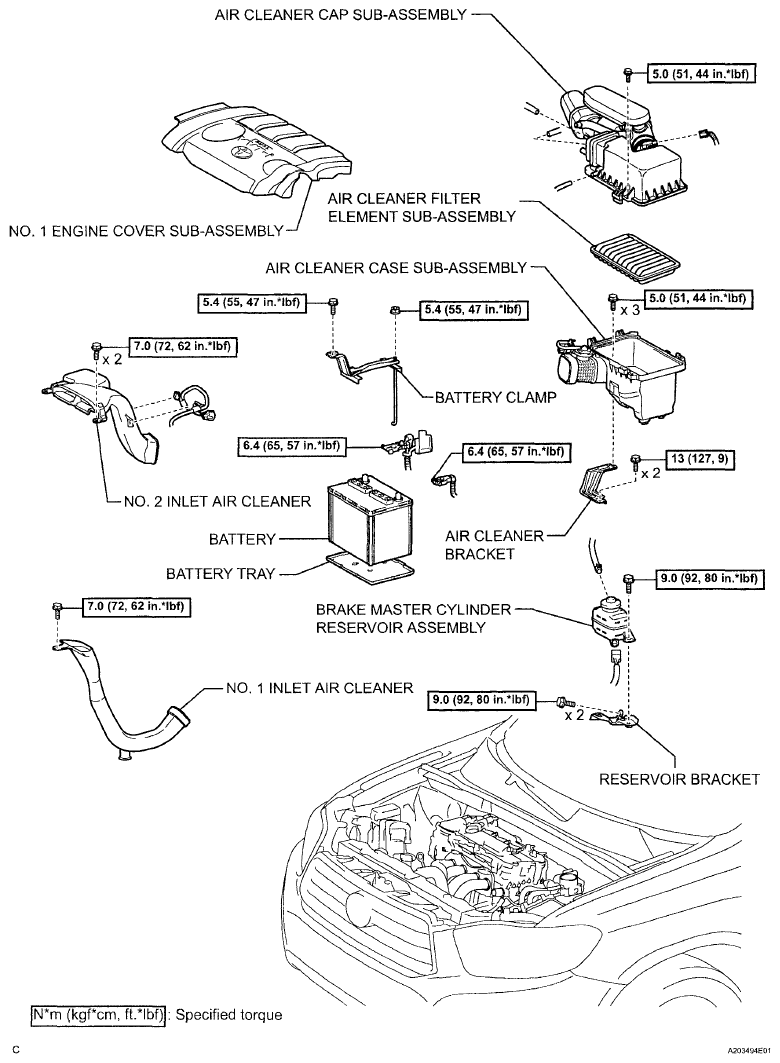

Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

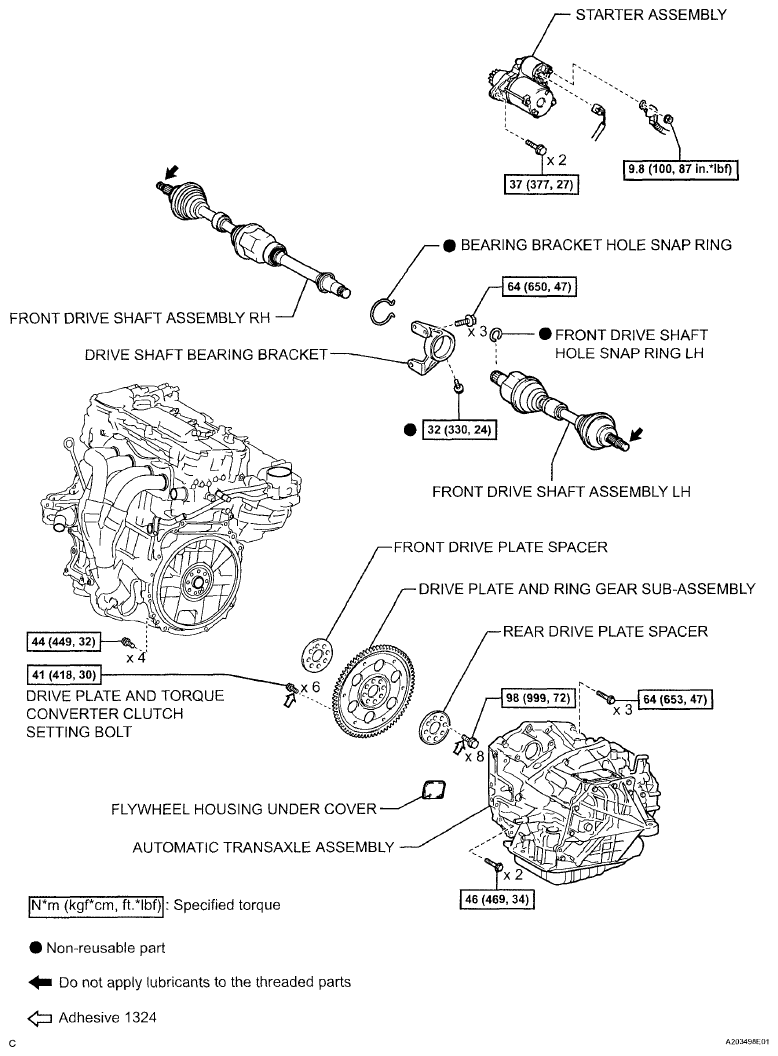

Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

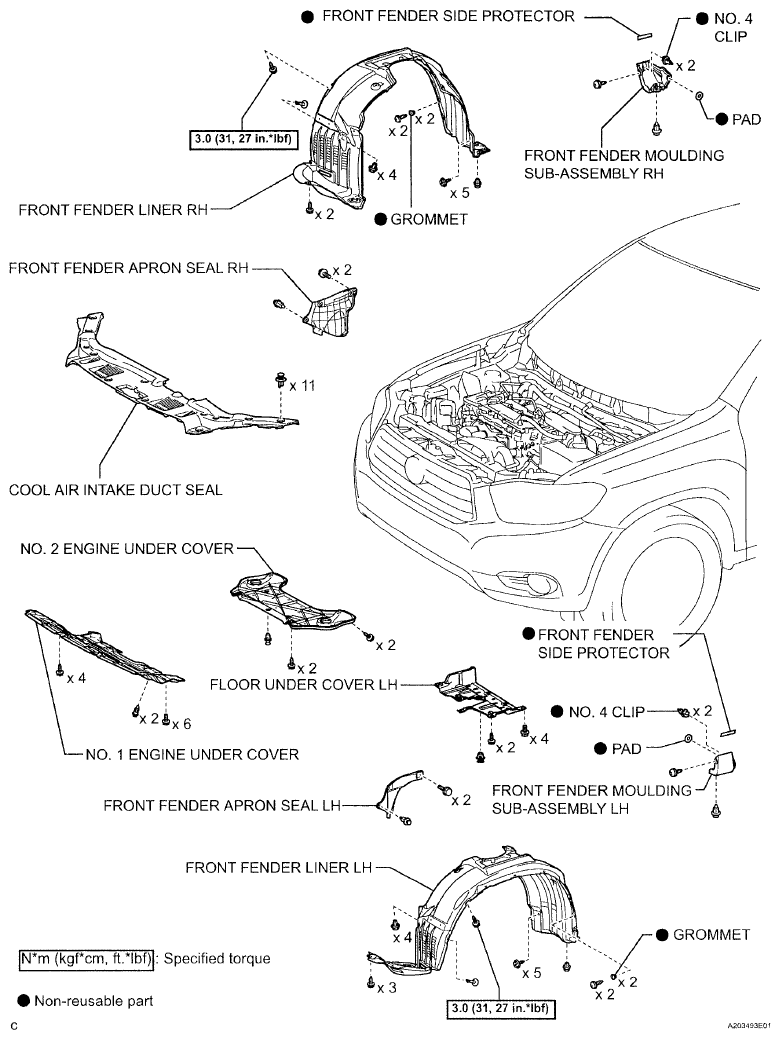

Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

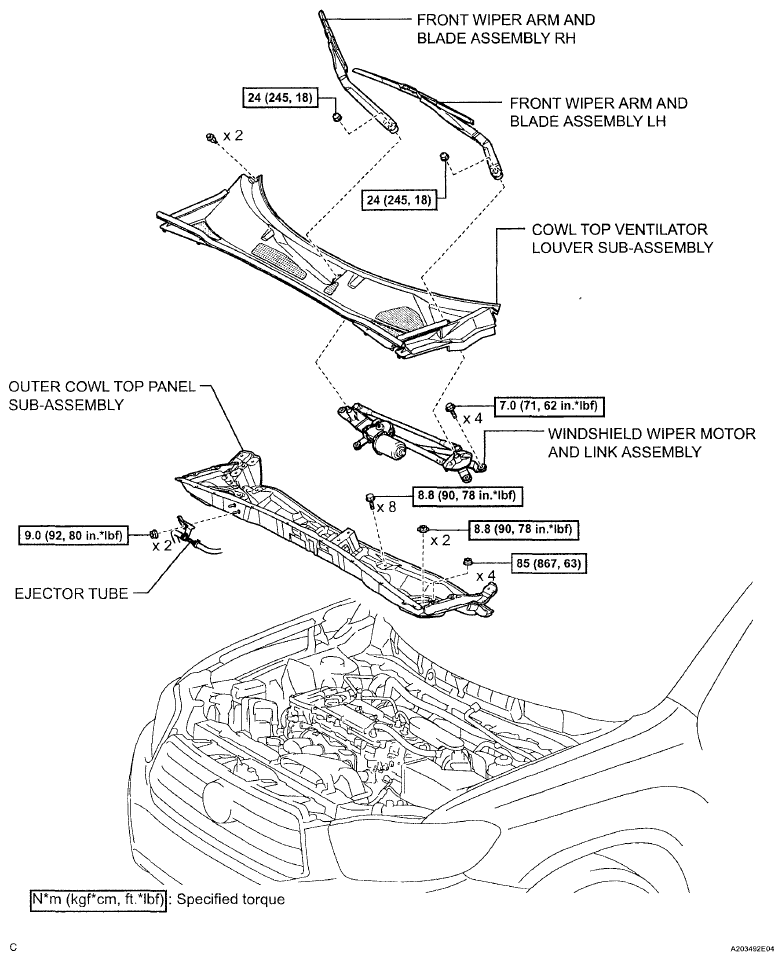

Fig 6: Engine Assembly Replacement Components With Torque Specifications (6 Of 8)

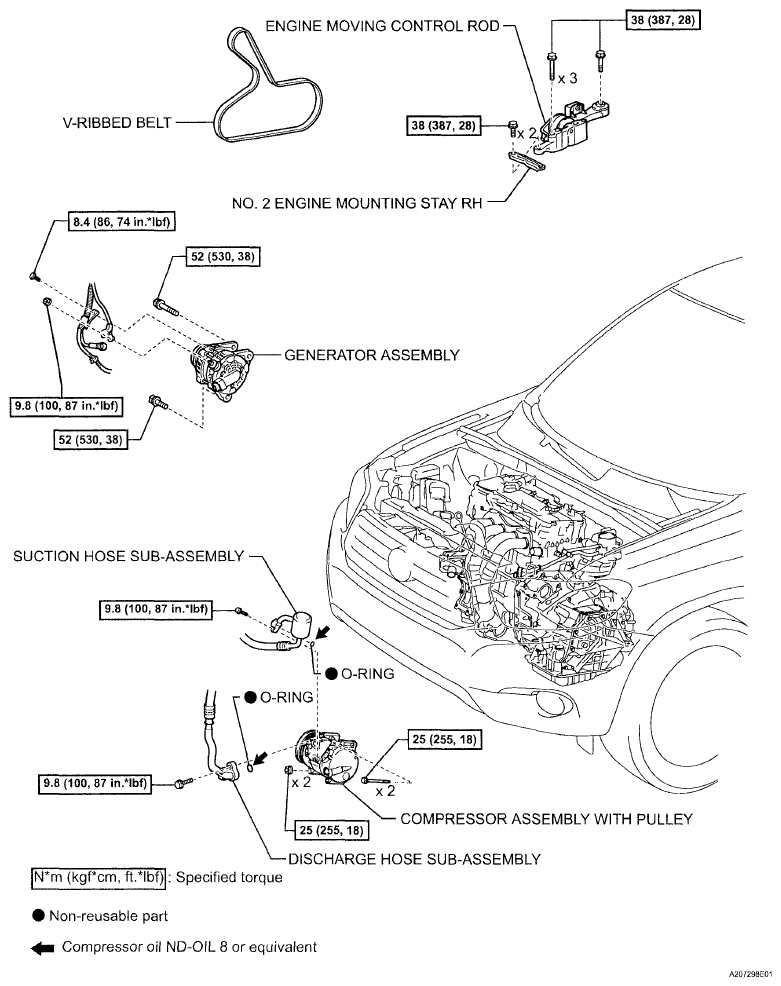

Fig 7: Engine Assembly Replacement Components With Torque Specifications (7 Of 8)

Fig 8: Engine Assembly Replacement Components With Torque Specifications (8 Of 8)
