Drive Belt: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE NO. 1 ENGINE UNDER COVER
  3. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH
    1. Remove the clip.
    2. Using a 4 mm hexagon wrench, remove the screw.
      Fig 1: Identifying Front Fender Moulding Sub-Assembly With Screw And Clip
      G06111903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Peel off the front fender side protector, disengage the 3 clips, and then remove the front fender moulding sub-assembly RH.
    4. Remove the pad from the front fender moulding sub-assembly RH. o
    5. Remove the 2 No. 4 clips from the front fender moulding sub-assembly RH.
      Fig 2: Identifying Clips Of Front Fender Moulding Sub-Assembly RH
      G06111904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the front fender side protector from the front fender moulding sub-assembly RH.
  4. REMOVE FRONT FENDER LINER RH  (See REMOVAL )
  5. REMOVE FRONT FENDER APRON SEAL RH  (See REMOVAL )
    Fig 3: Identifying Front Fender Side Protector
    G06111905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE V-RIBBED BELT

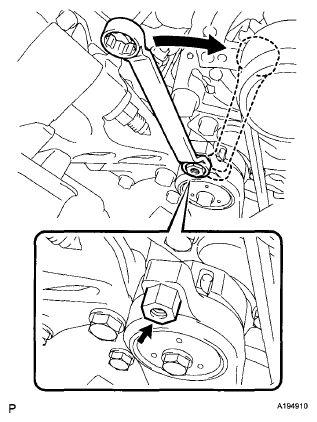

    1. Attach a wrench to the hexagonal portion of the belt tensioner as shown in the illustration, rotate the belt tensioner clockwise, and remove the V-ribbed belt.
    Fig 4: Removing V-Ribbed Belt Using Wrench
    G05997686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
