Drive Belt: Components

WARNING: This page is about a different variant/trim than selected.

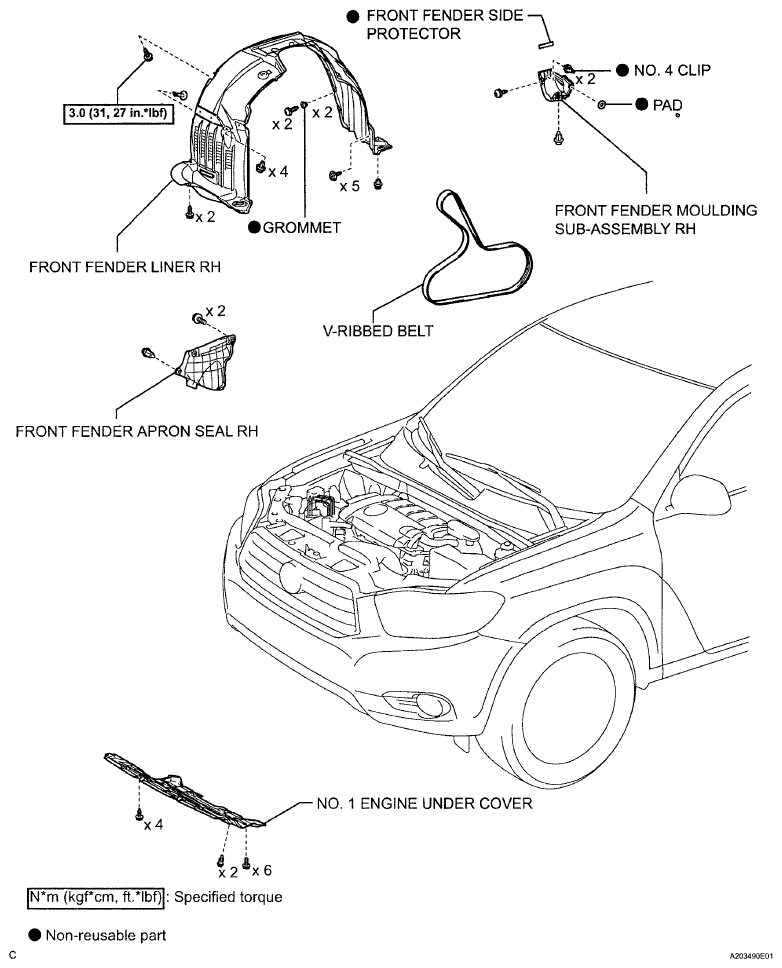

Fig 1: Drive Belt Replacement Components With Torque Specifications
G06111900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
