Cylinder Head Gasket: Components

WARNING: This page is about a different variant/trim than selected.

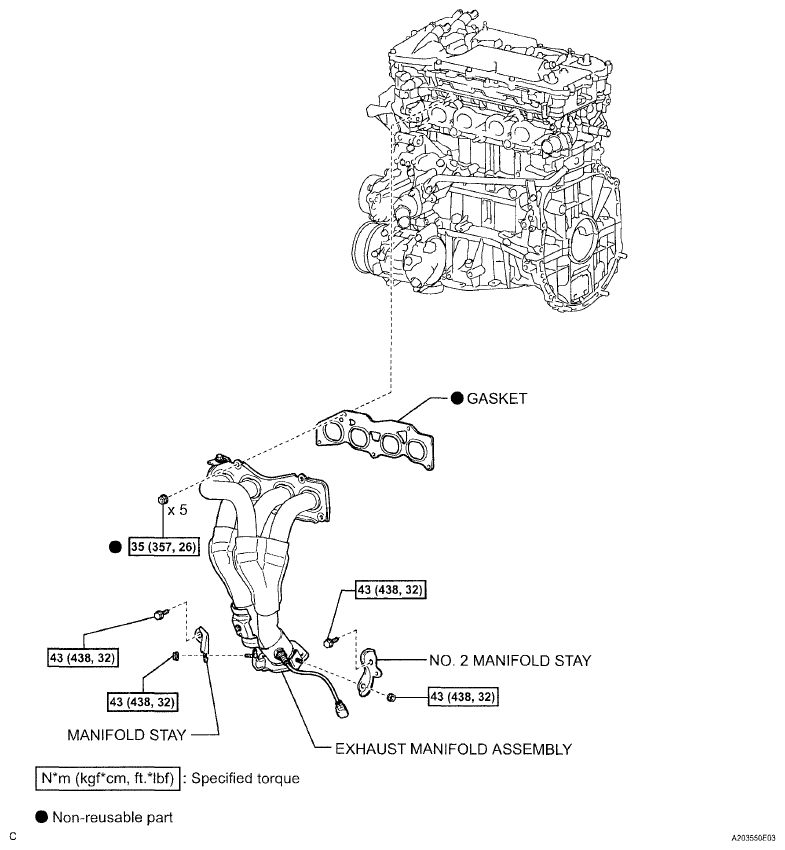

Fig 1: Engine Unit Components With Torque Specification (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

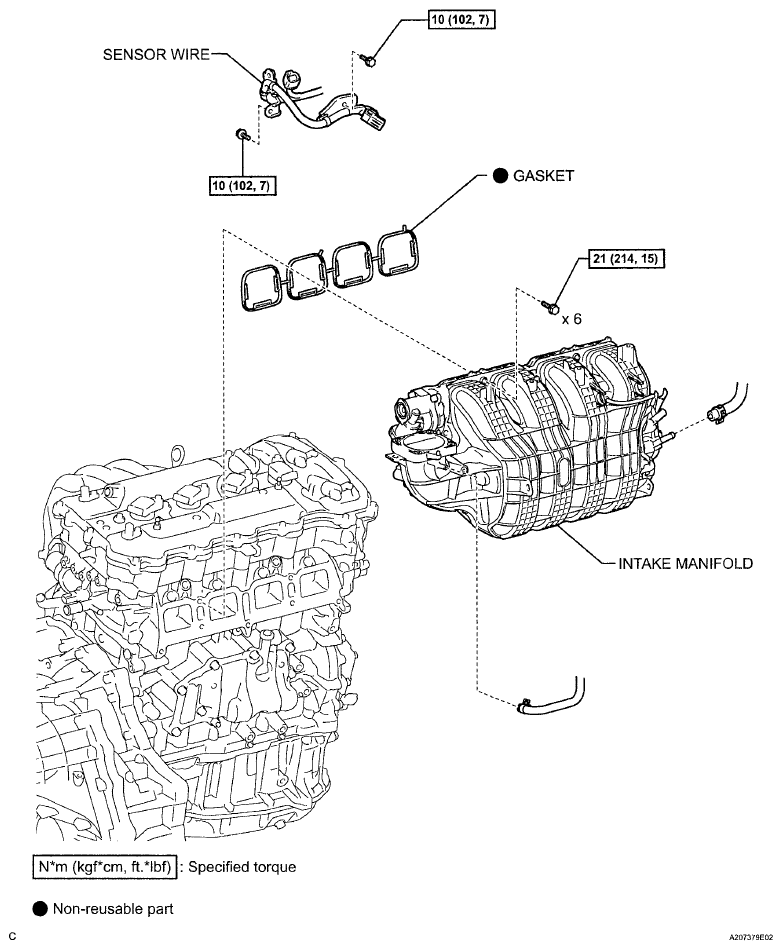

Fig 2: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

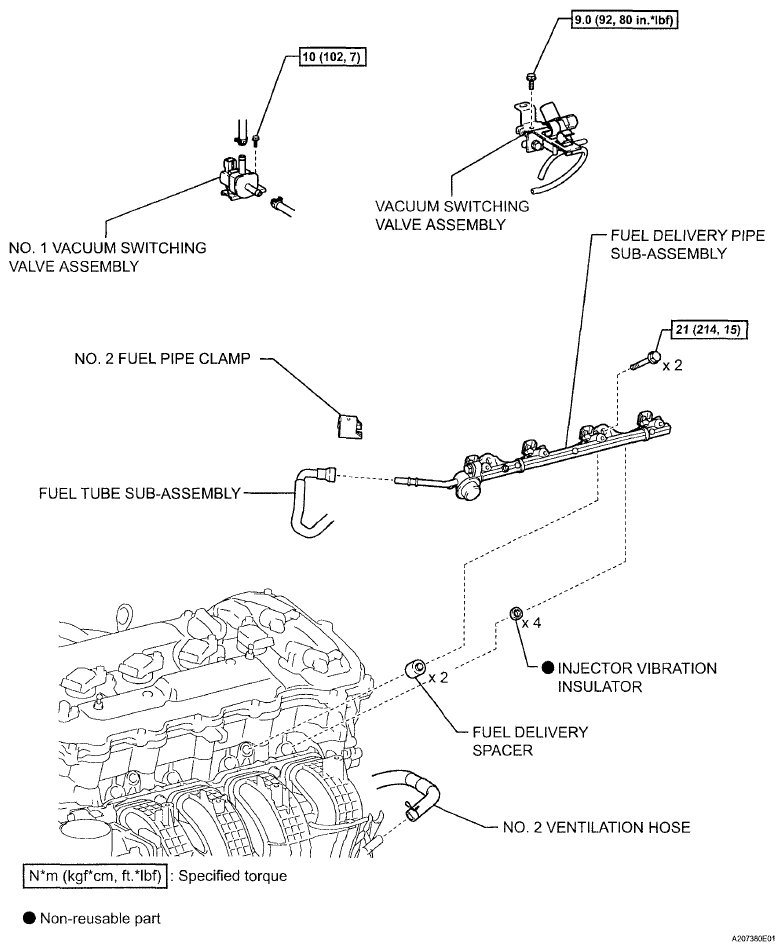

Fig 3: Cylinder Head Gasket Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

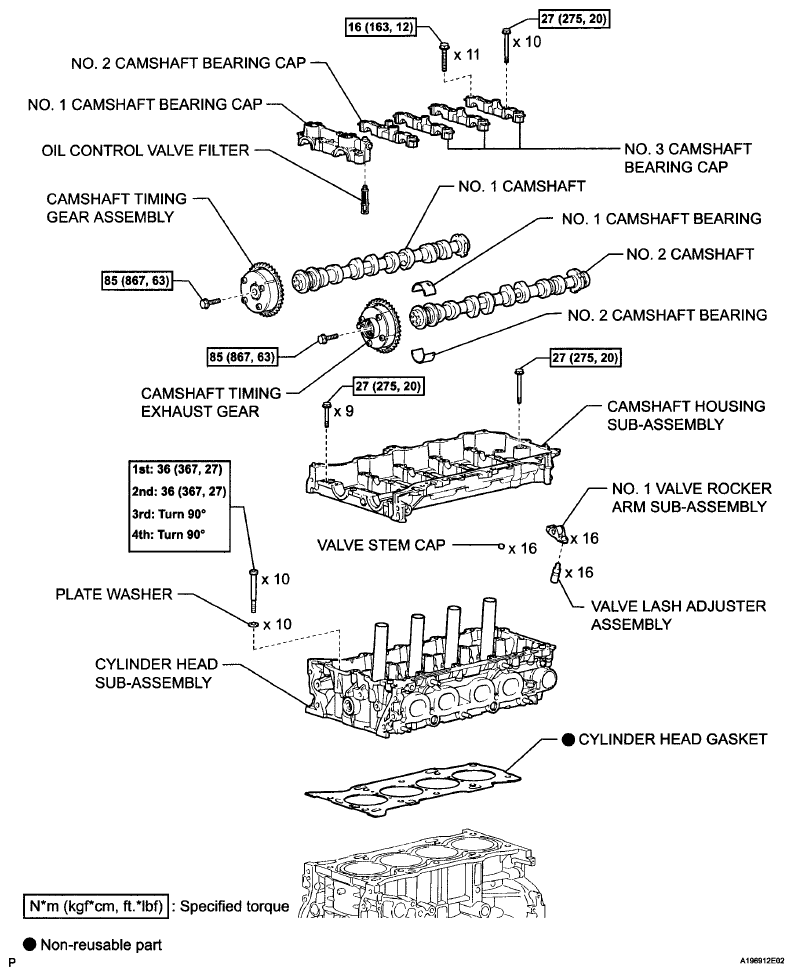

Fig 4: Cylinder Head Gasket Replacement Components With Torque Specifications (4 Of 5)

Fig 5: Cylinder Head Gasket Replacement Components With Torque Specifications (5 Of 5)
