Cylinder Block: Replacement

WARNING: This page is about a different variant/trim than selected.

Fig 1: Pushing Check Valve A And Applying Air Into B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REPLACE RING PIN

NOTE: It is not necessary to remove the ring pin unless it is being replaced.

Using a plastic-faced hammer, install 12 new ring pins.

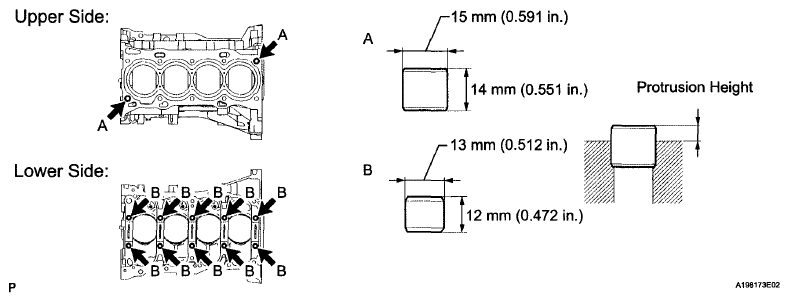

Fig 2: Identifying Ring Pin Protrusion Height

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Protrusion Height

PROTRUSION HEIGHT SPECIFICATION

Item	Specified Condition
A	5.0 to 7.0 mm (0.197 to 0.276 in.)
B	4.0 to 7.0 mm (0.157 to 0.276 in.)

REPLACE STRAIGHT PIN

NOTE: It is not necessary to remove the straight pin unless it is being replaced.

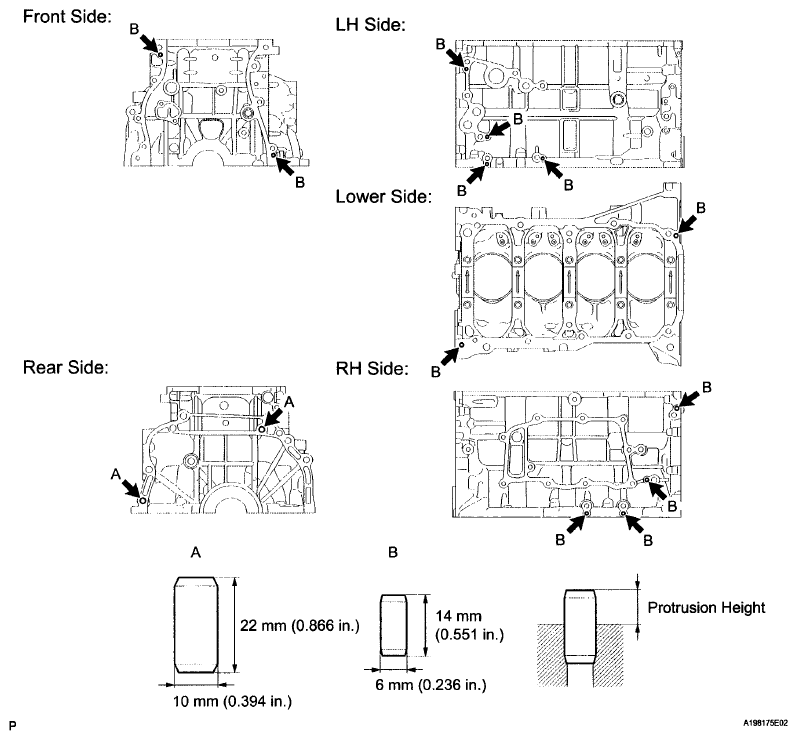

Fig 3: Locating Straight Pins With Protrusion Height

Standard Protrusion Height

PROTRUSION HEIGHT SPECIFICATION

Item	Specified Condition
A	11.0 to 13.0 mm (0.433 to 0.512 in.)
B	5.0 to 7.0 mm (0.197 to 0.276 in.)
