DTC P0504 Brake Switch "A"/"B" Correlation: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

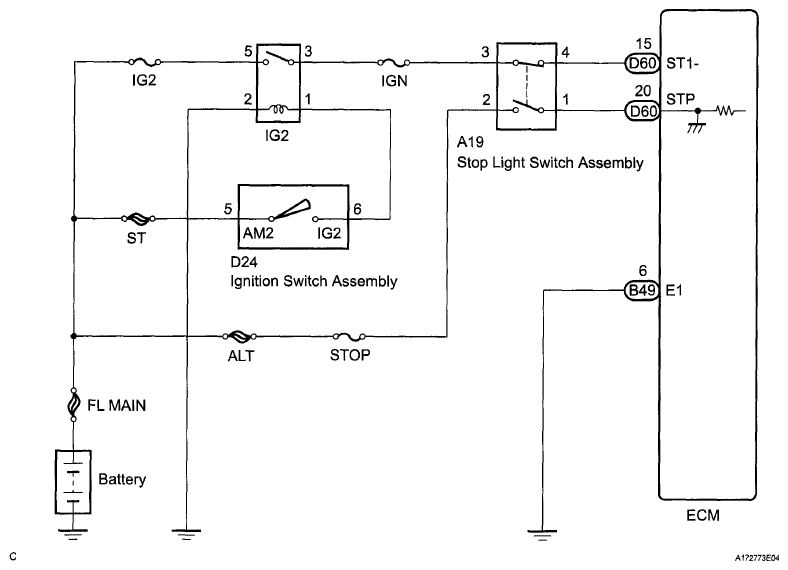

Fig 1: Brake Switch "A"/"B" Correlation - Wiring Diagram
G06111069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
