DTC P0500 Vehicle Speed Sensor "A": Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

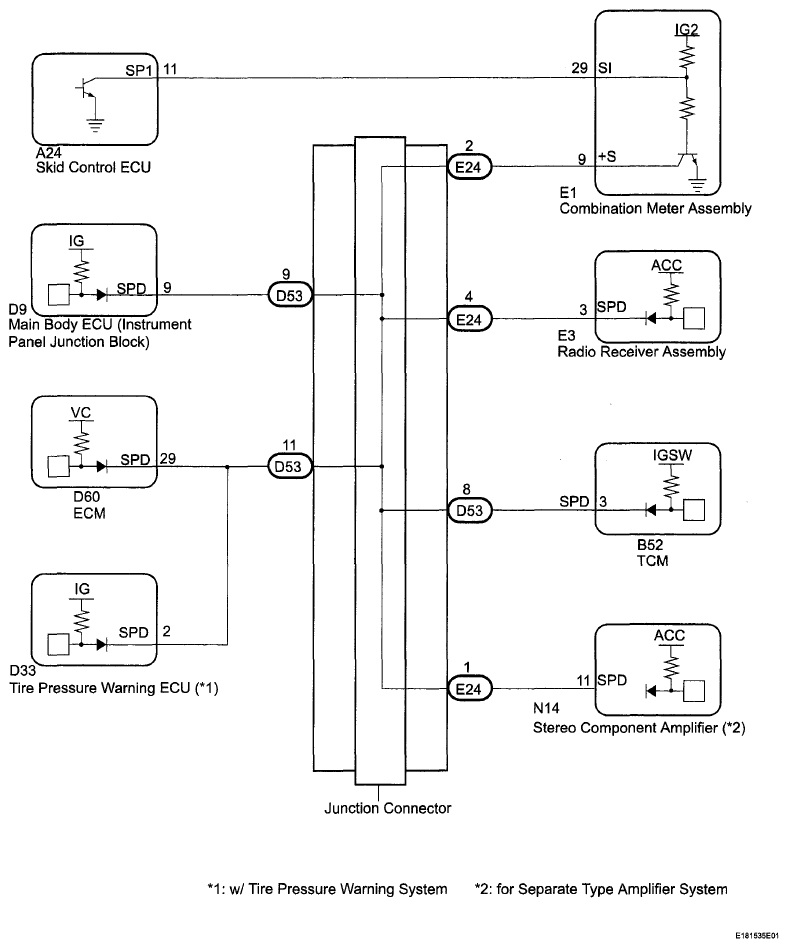

Fig 1: Vehicle Speed Sensor "A" - Wiring Diagram
G06111065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
