Section 16 (Engine Control System (1AR-FE) - Circuit Testing, Component Inspection, Removal & Installation): ECM: Components

WARNING: This page is about a different variant/trim than selected.

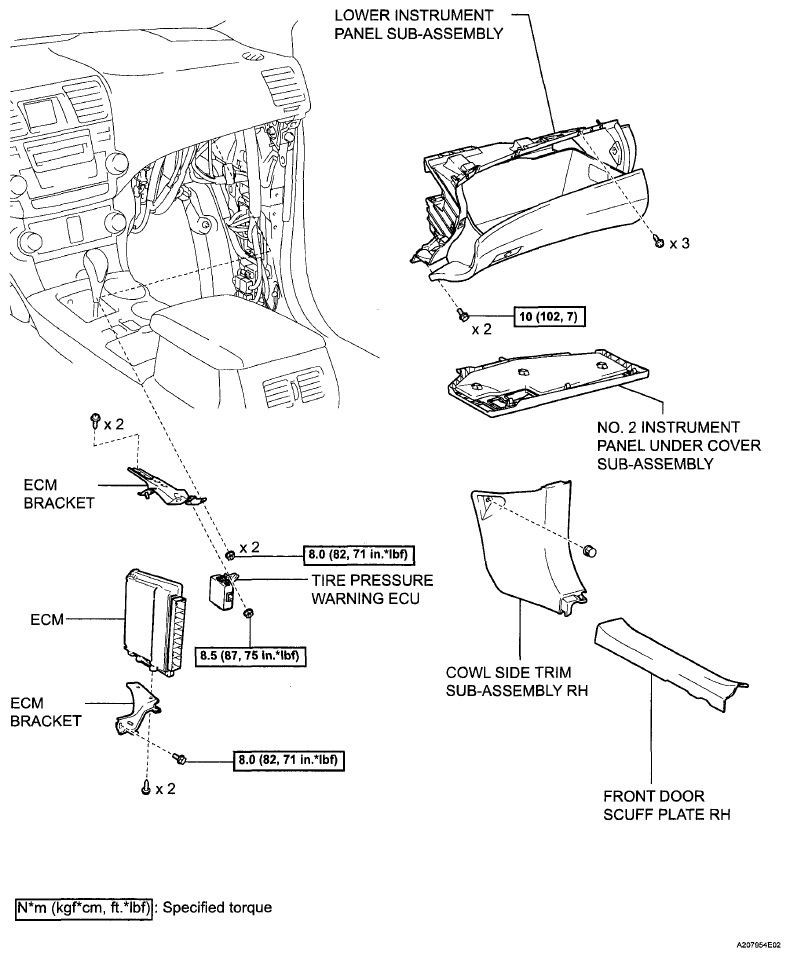

Fig 1: ECM Replacement Components With Torque Specifications
