Section 12 (Intake (1AR-FE))
>>
Intake System
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

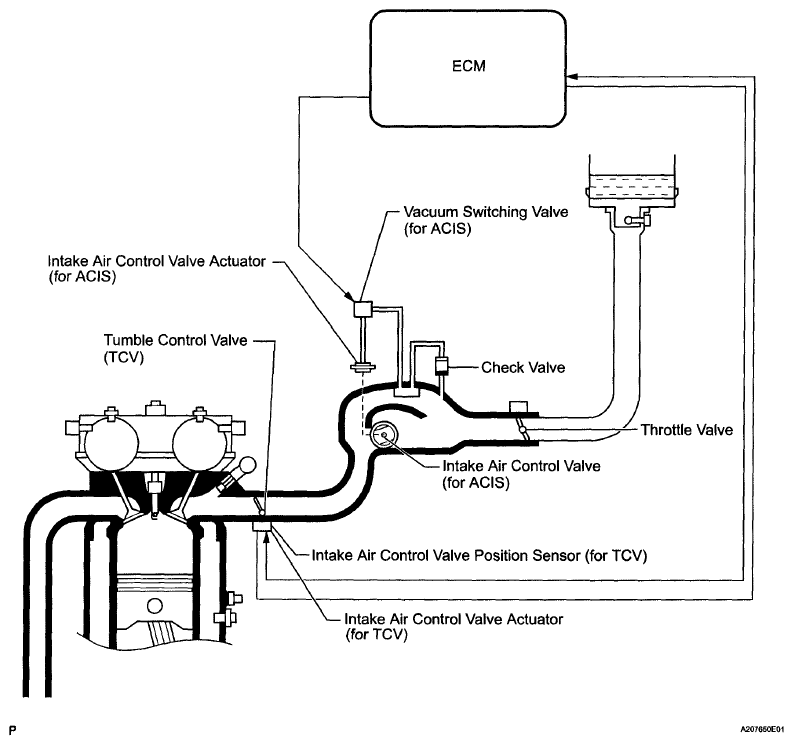

Fig 1: Intake System - System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Intake System - System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

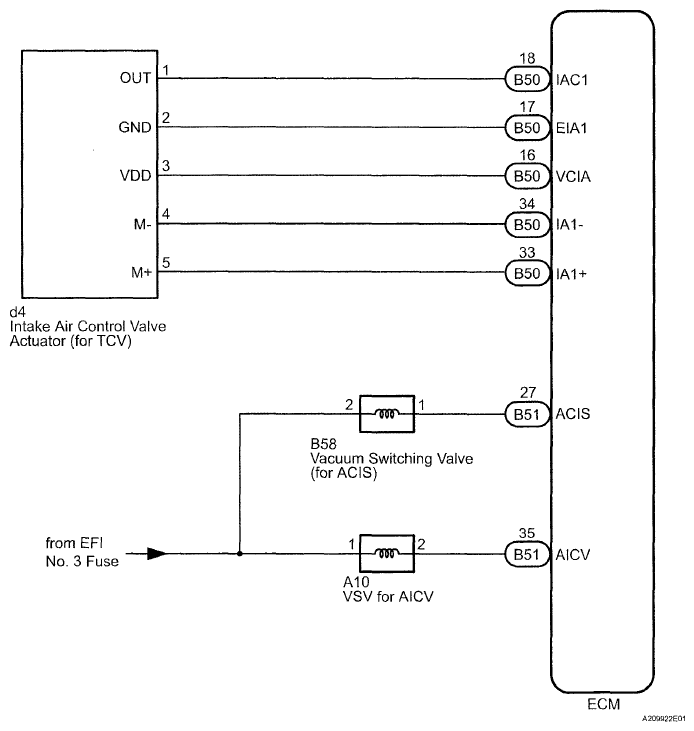

Fig 3: Intake System - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
