Connector Joining Wire Harness, Wire Harness, and Ground Point Locations: [2GR-FE]

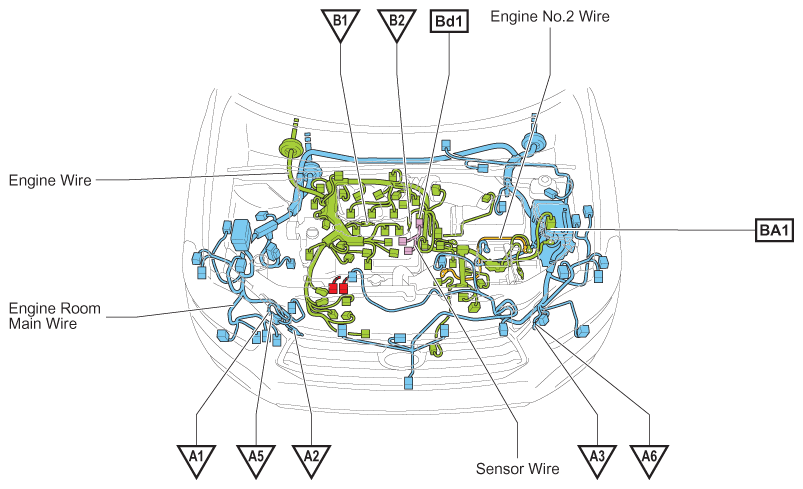

Fig 1: Locating Wire Harnesses And Ground Points (2GR-FE)

G07608377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
