Smart Key System

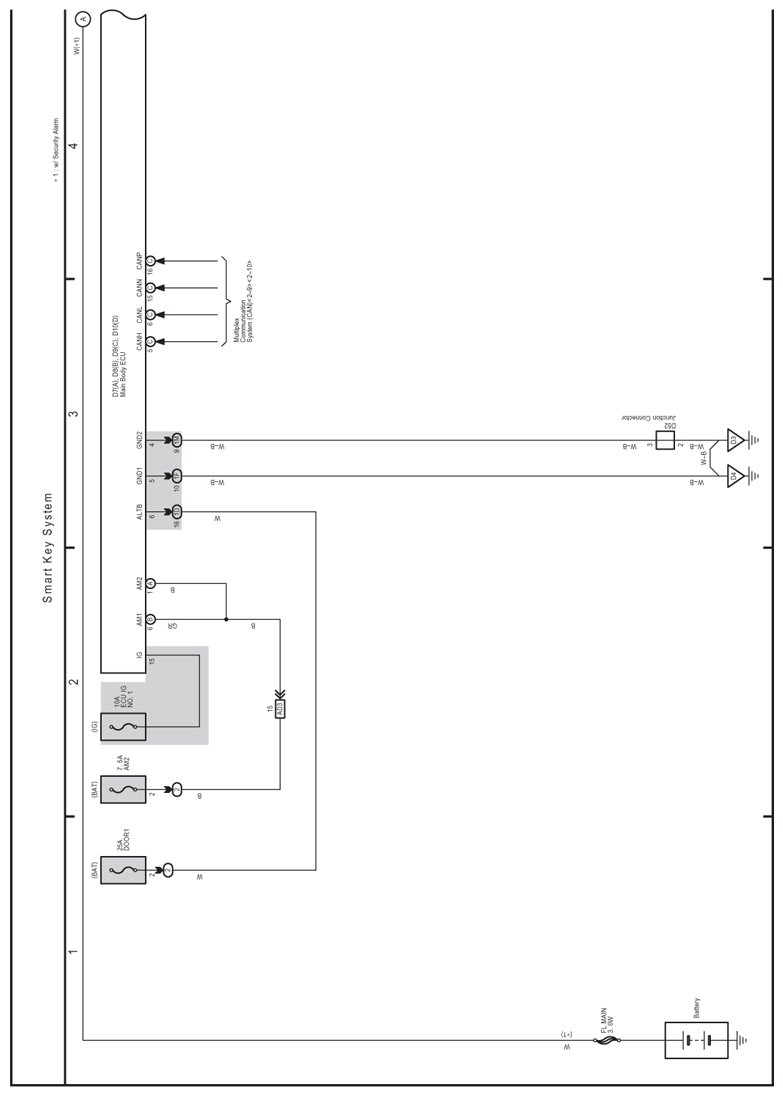

Fig 1: Smart Key System Electrical Wiring Diagram (1 Of 5)
G07610783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

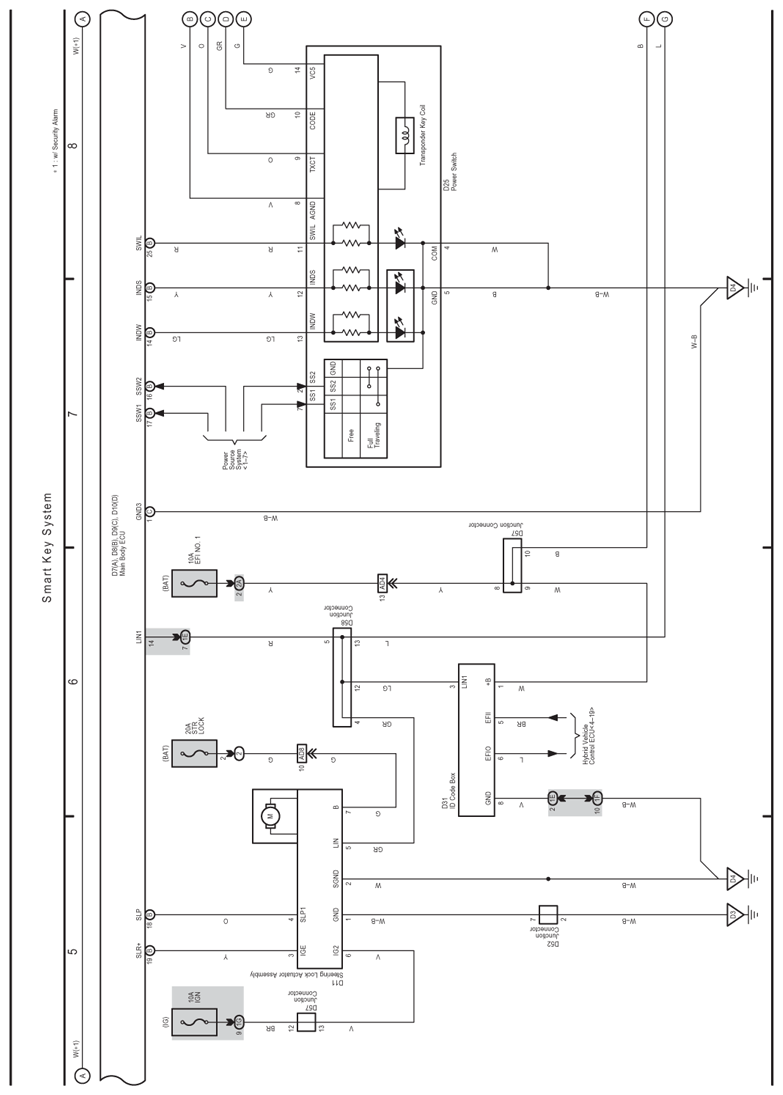

Fig 2: Smart Key System Electrical Wiring Diagram (2 Of 5)
G07610784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

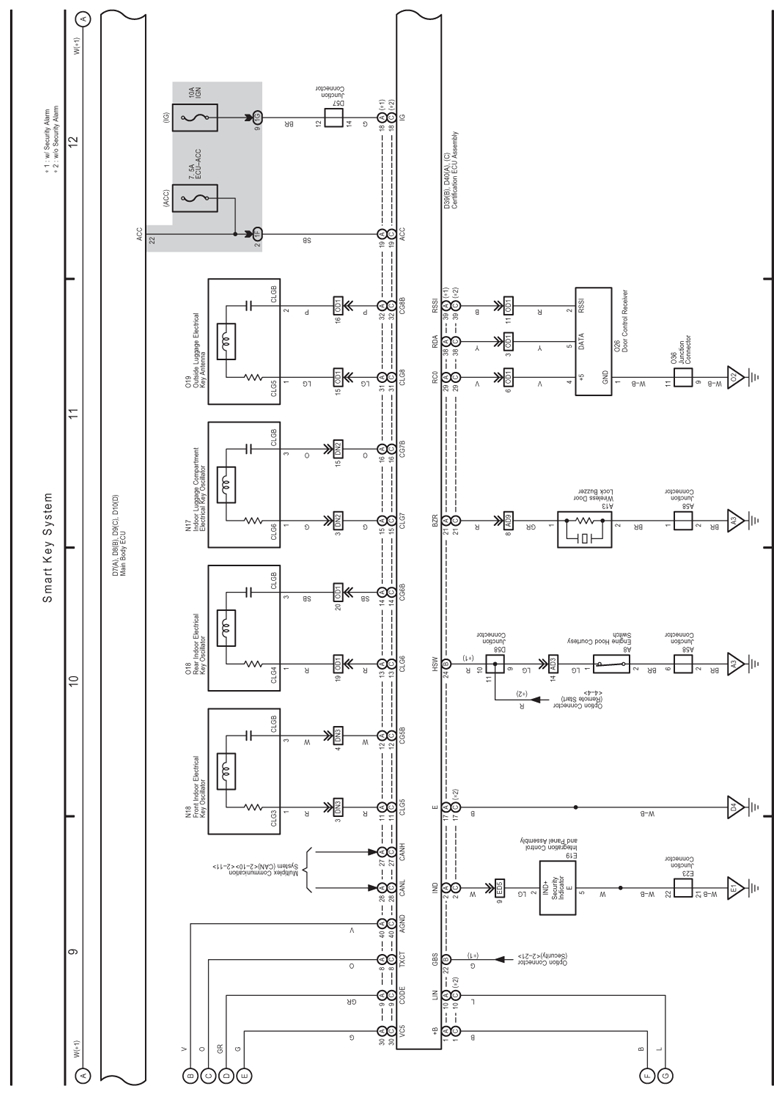

Fig 3: Smart Key System Electrical Wiring Diagram (3 Of 5)
G07610785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

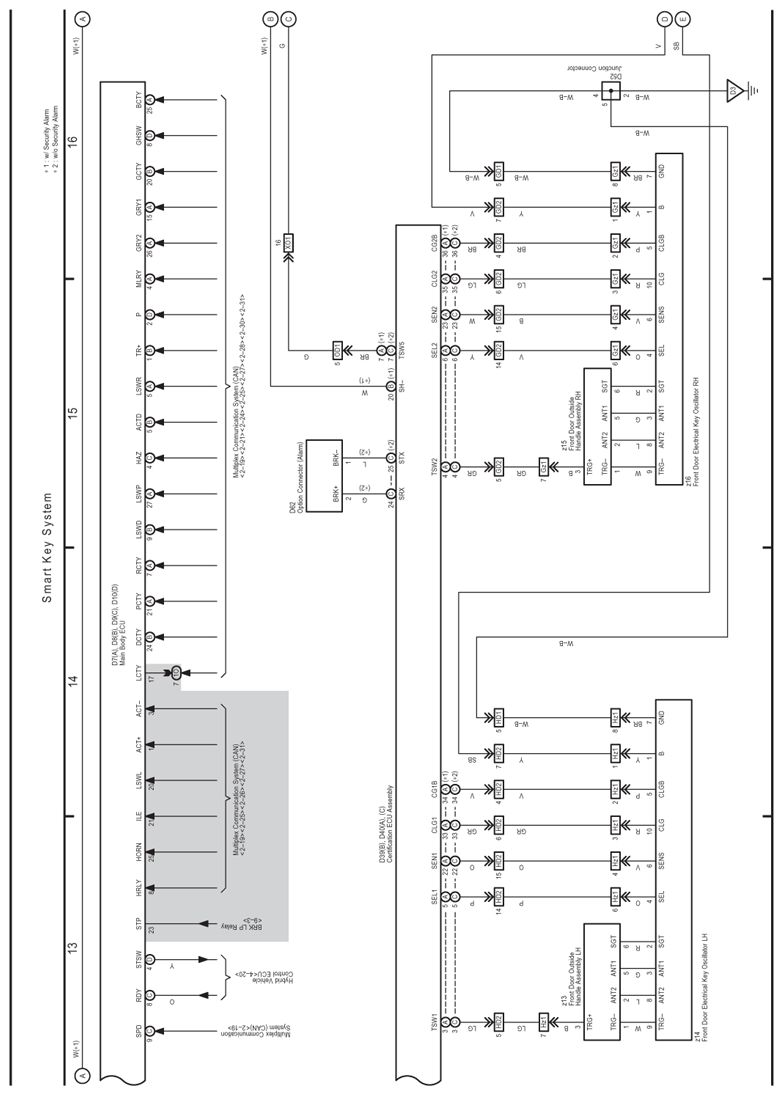

Fig 4: Smart Key System Electrical Wiring Diagram (4 Of 5)
G07610786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

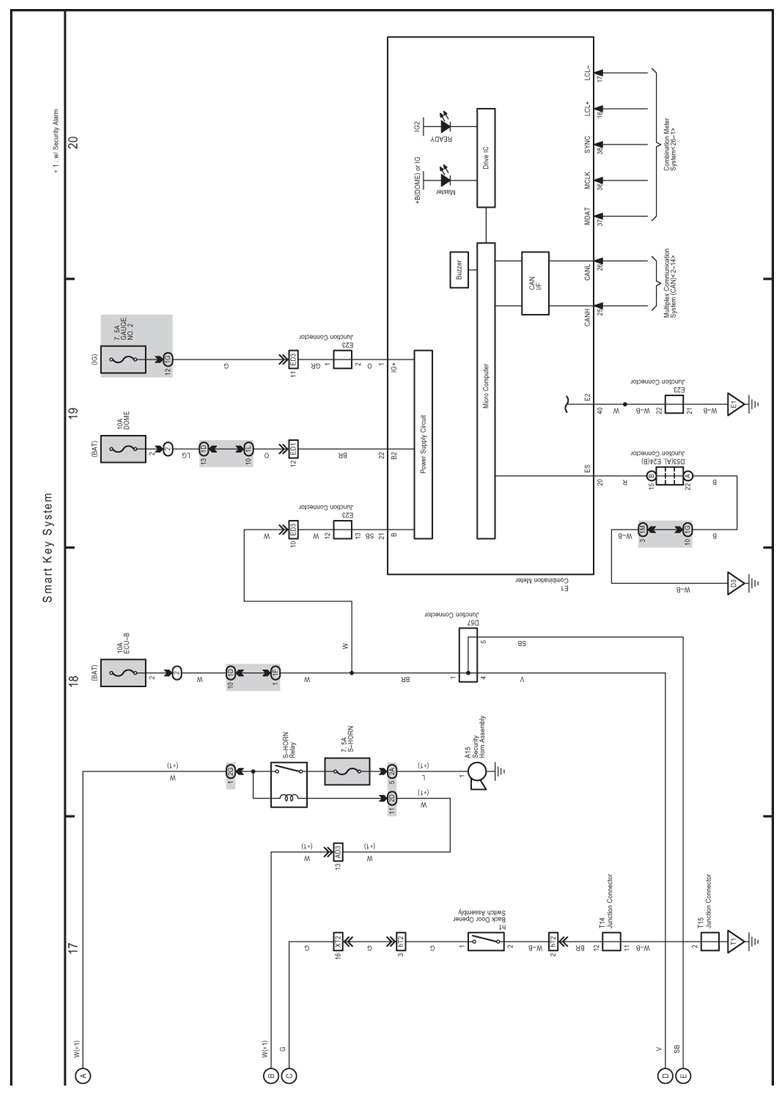

Fig 5: Smart Key System Electrical Wiring Diagram (5 Of 5)
G07610787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
