Seat Heater

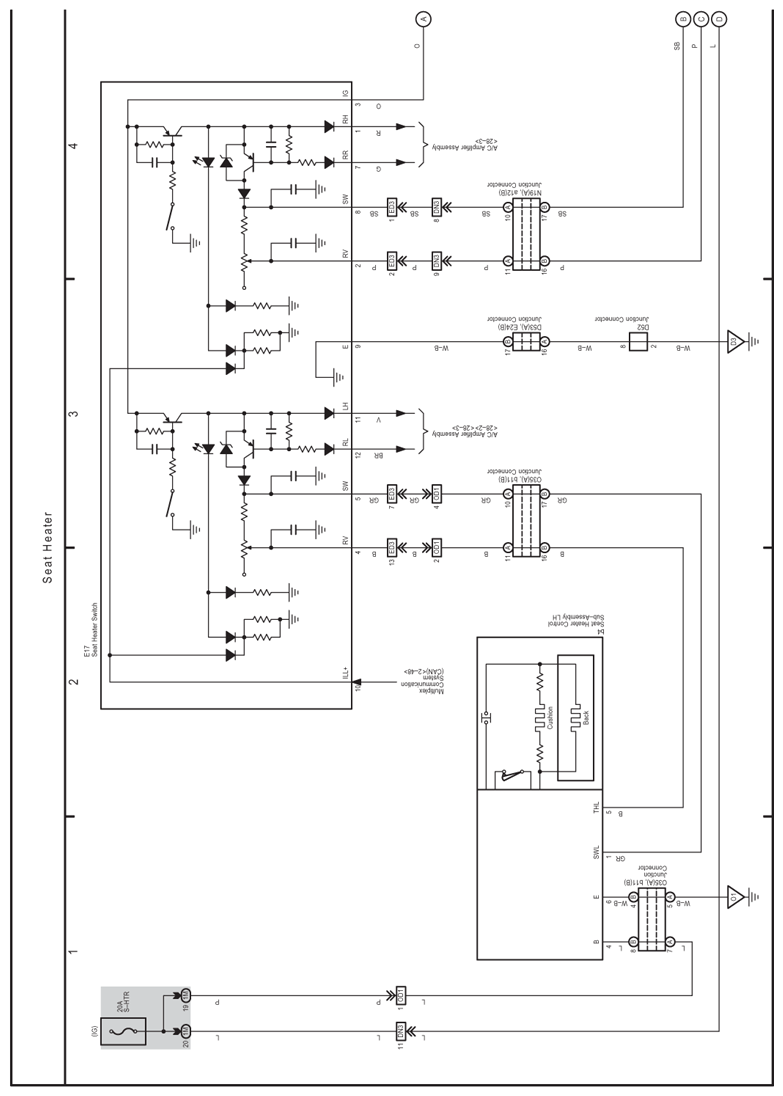

Fig 1: Seat Heater Electrical Wiring Diagram (1 Of 2)
G07610818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

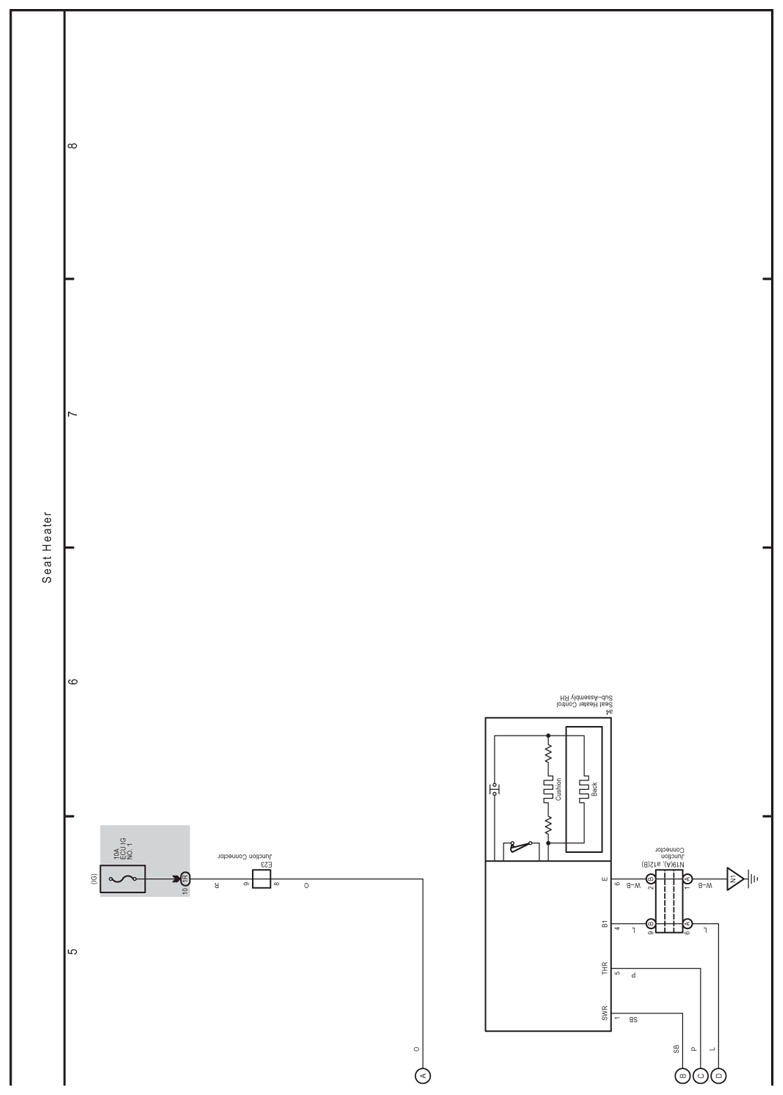

Fig 2: Seat Heater Electrical Wiring Diagram (2 Of 2)
G07610819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
