Power Seat (Driver's Seat), Power Seat (Front Passenger's Seat)

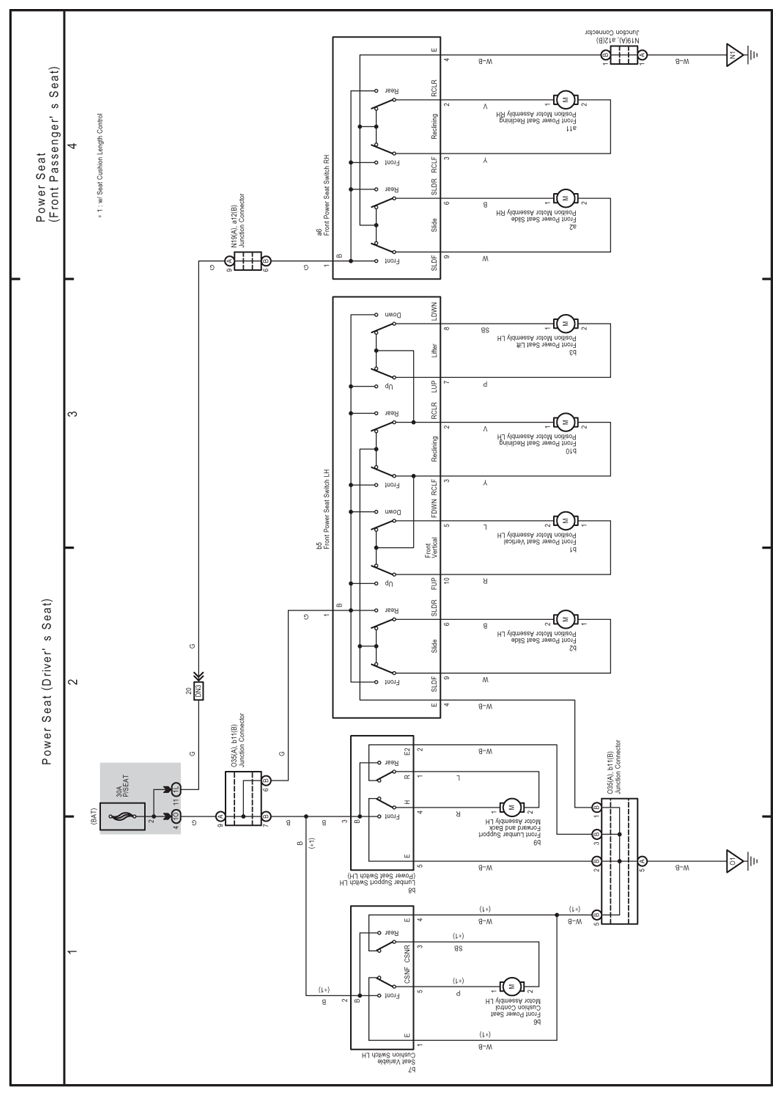

Fig 1: Power Seat (Driver's Seat/Front Passenger's Seat) Electrical Wiring Diagram

G07610817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
