Power Outlet (115V), Power Outlet (12V)

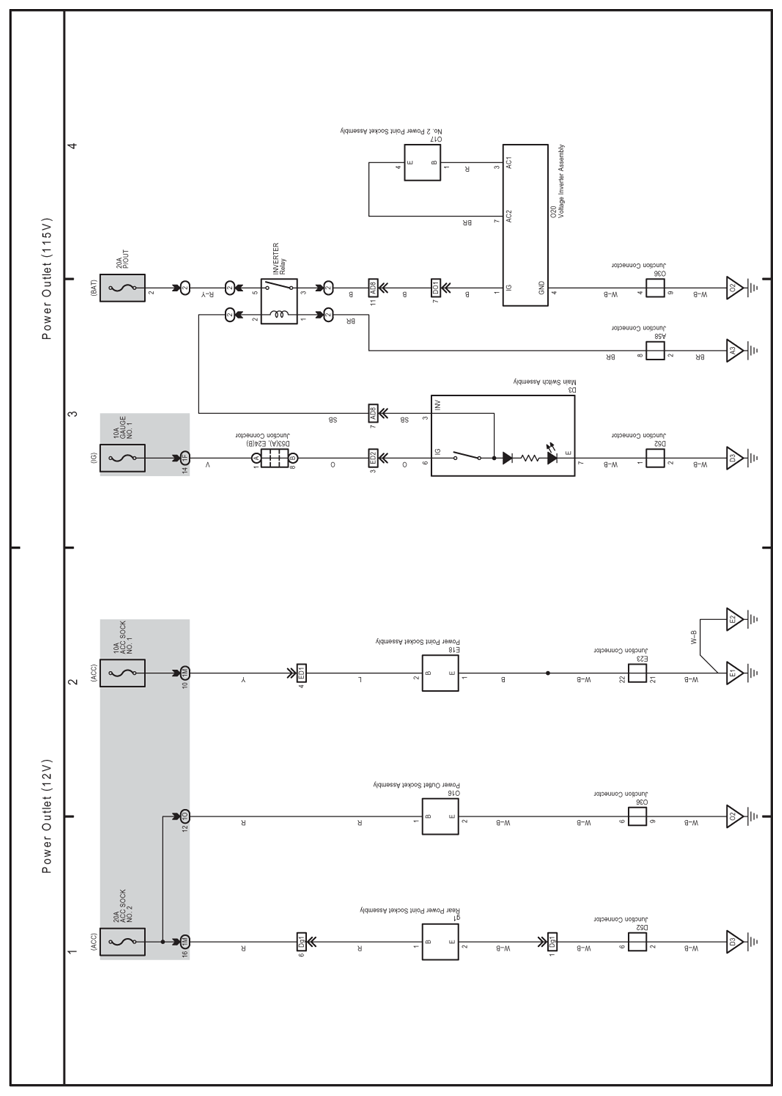

Fig 1: Power Outlet (12 V And 115V) Electrical Wiring Diagram

G07610808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
