Highlander Limited, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Power Back Door
Power Back Door

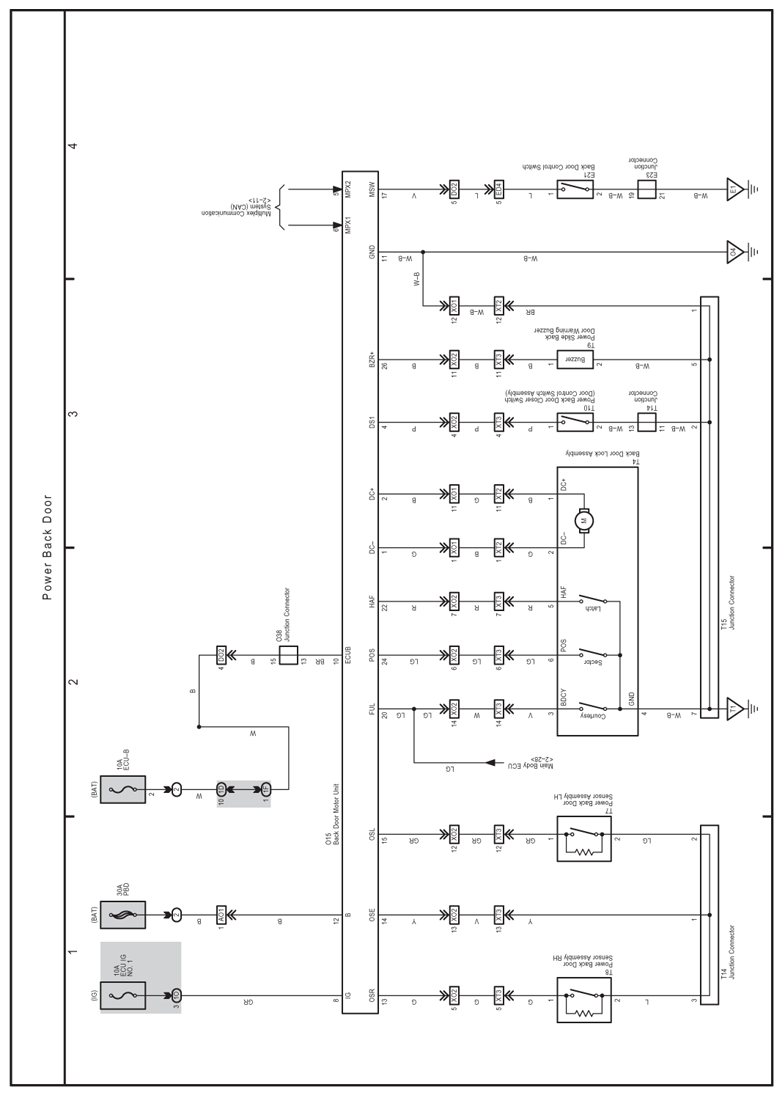

Fig 1: Power Back Door Electrical Wiring Diagram
