Multi-Display, Parking Assist (Rear View Monitor)

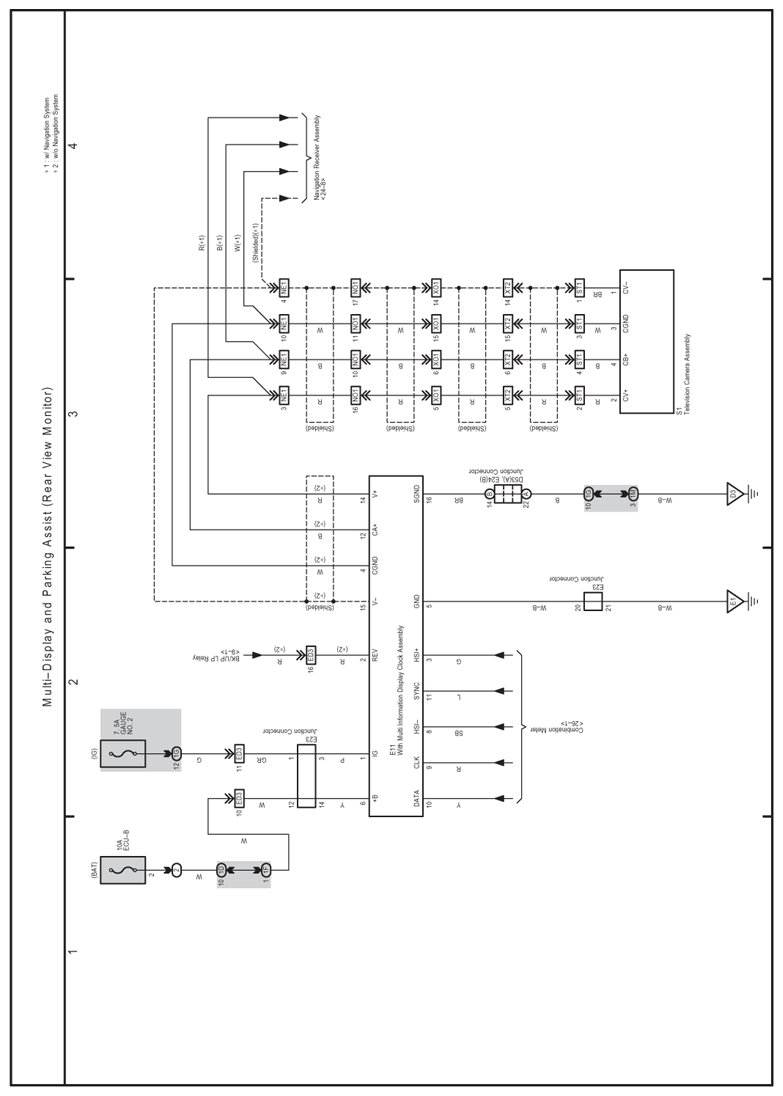

Fig 1: Multi-Display And Parking Assist (Rear View Monitor) Electrical Wiring Diagram

G07610823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
