Body Electrical
>>
OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Data Link Connector
Data Link Connector

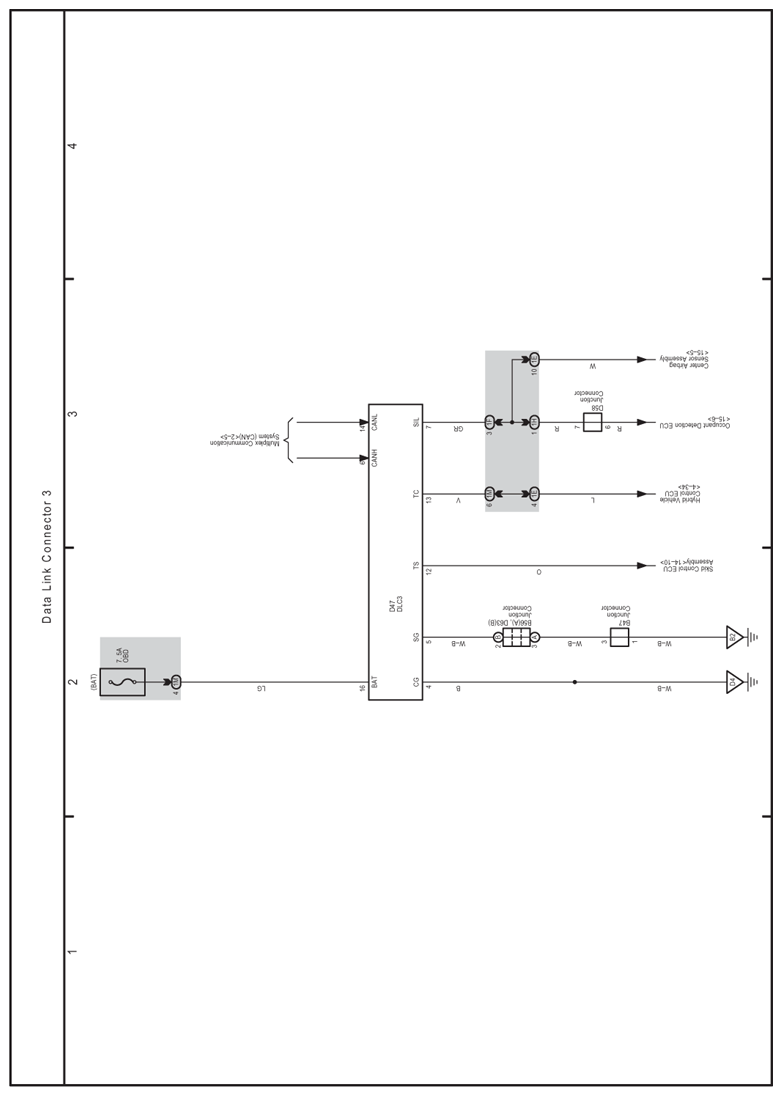

Fig 1: Data Link Connector 3 Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
