Cooling Fan, Rear Window Defogger

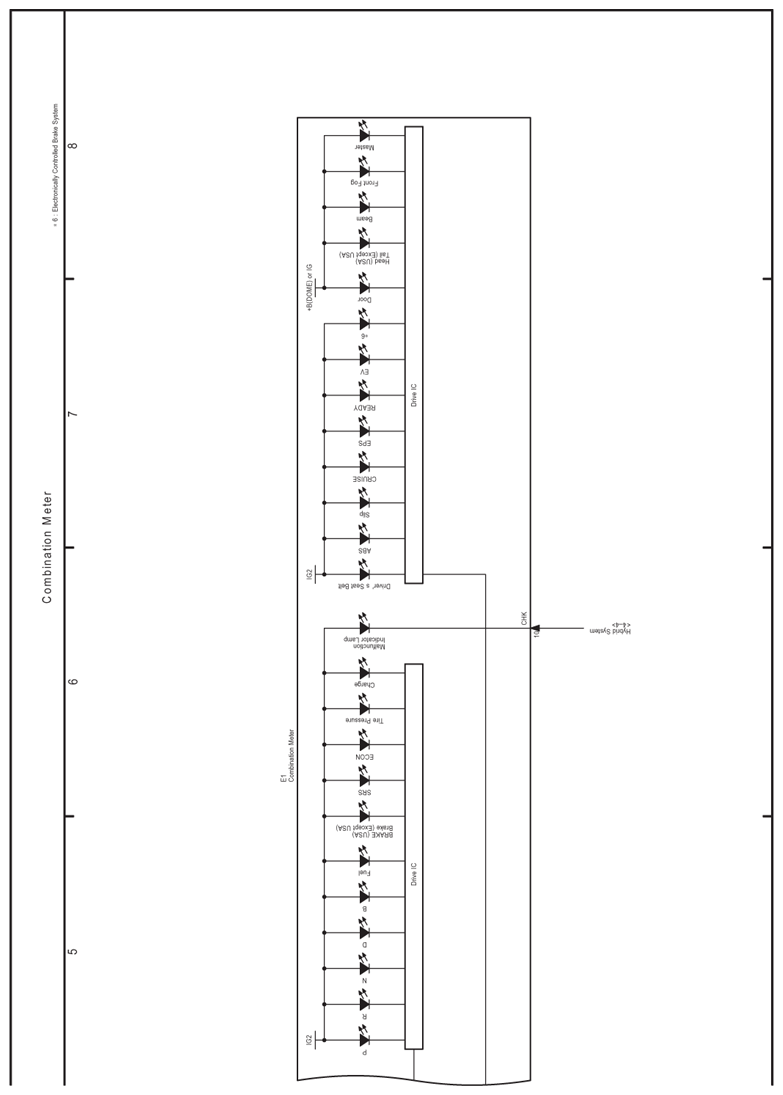

Fig 1: Combination Meter Electrical Wiring Diagram (2 Of 2)
G07610830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

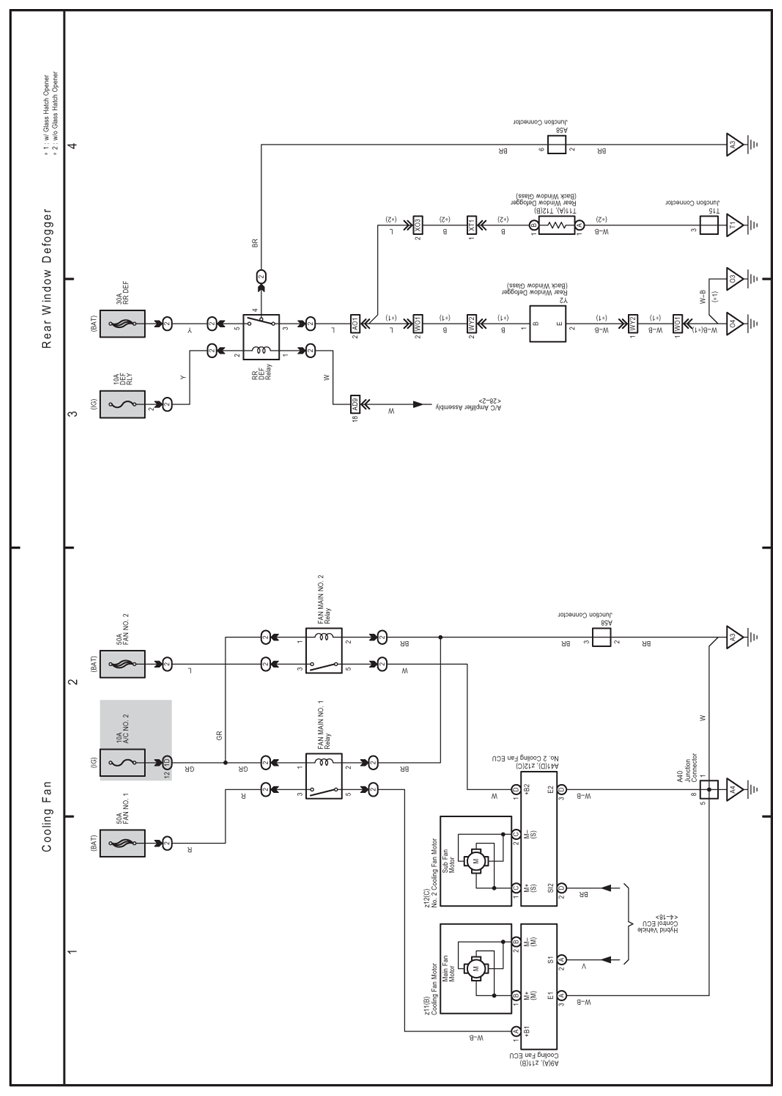

Fig 2: Cooling Fan And Rear Window Defogger Electrical Wiring Diagram
G07610831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
