OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Automatic Glare-Resistant EC Mirror, Sliding Roof
Automatic Glare-Resistant EC Mirror, Sliding Roof

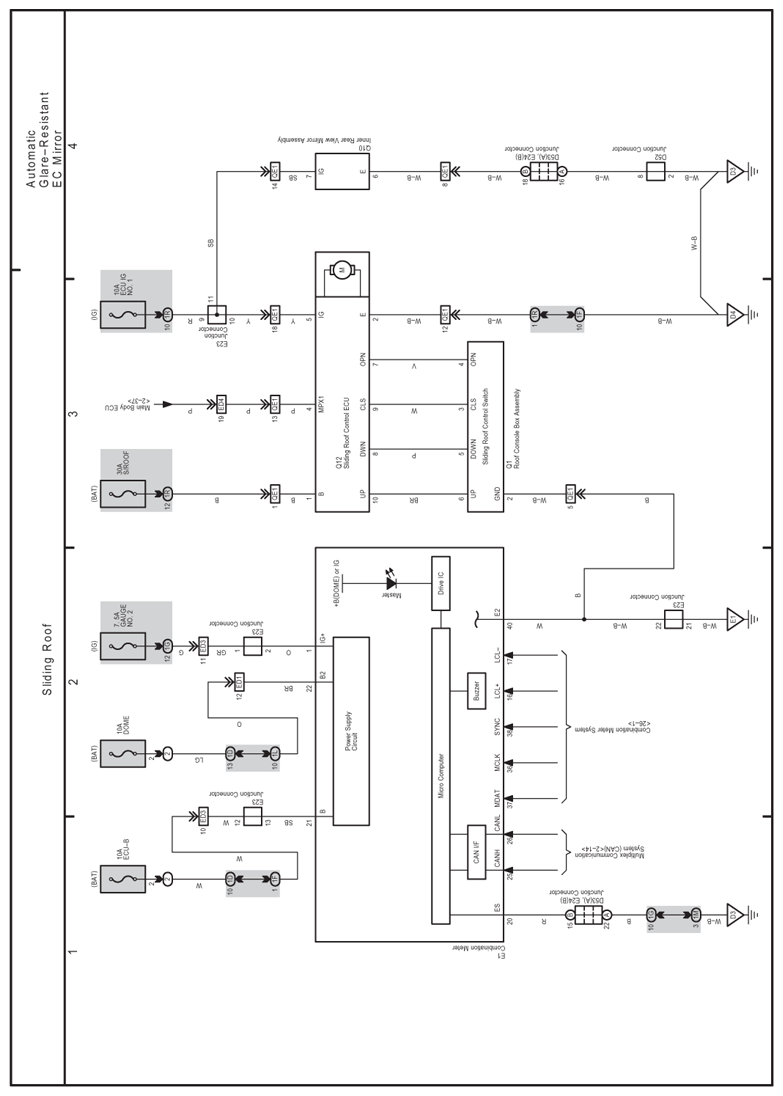

Fig 1: Sliding Roof And Automatic Glare-Resistant EC Mirror With Compass Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
