Highlander Limited, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Audio System (JBL), Navigation System
Audio System (JBL), Navigation System

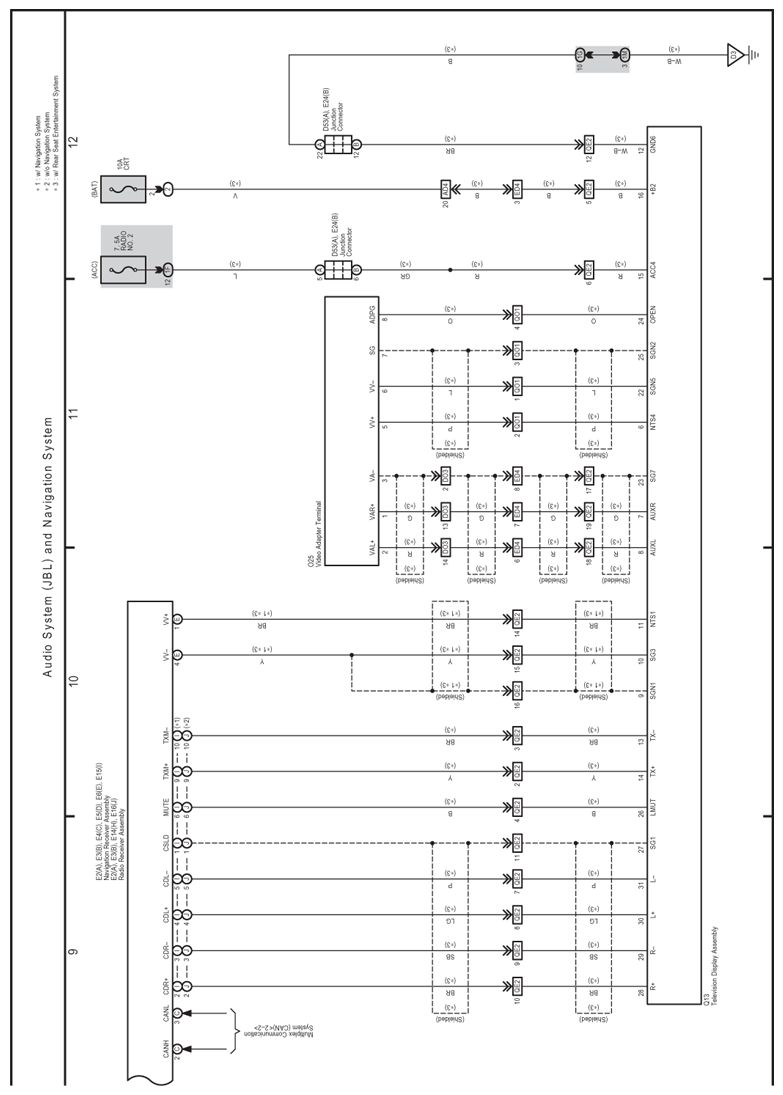

Fig 1: Audio System (JBL) And Navigation System Electrical Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

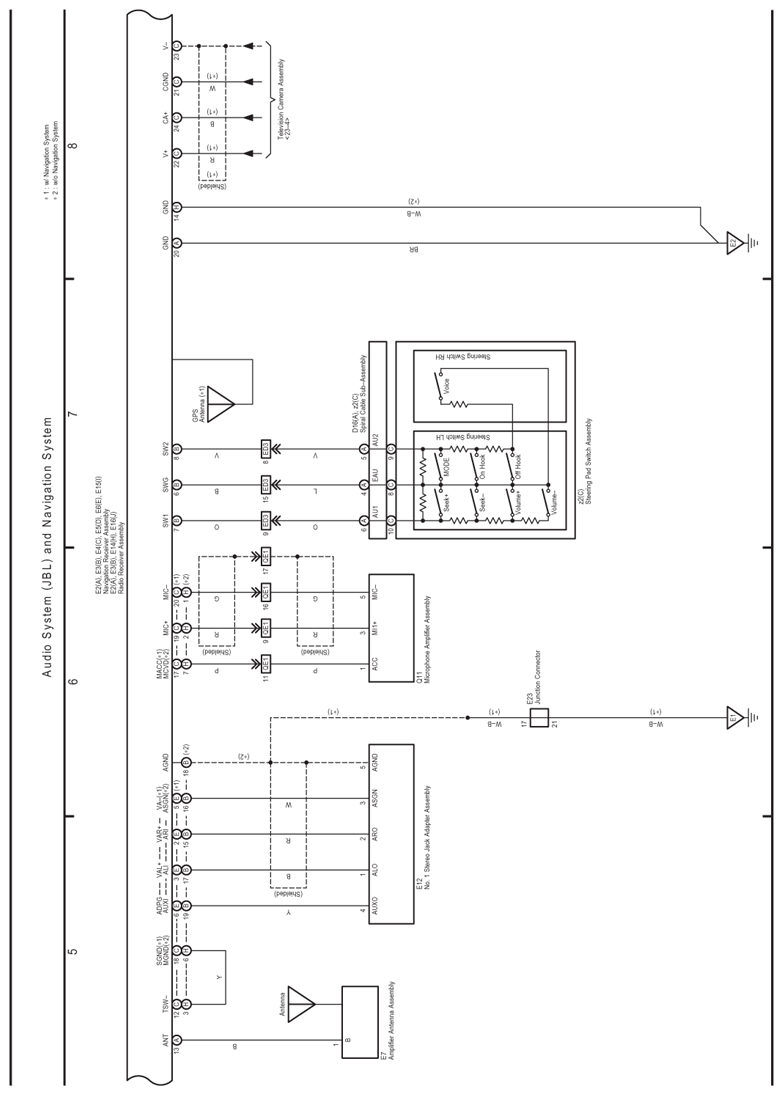

Fig 2: Audio System (JBL) And Navigation System Electrical Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

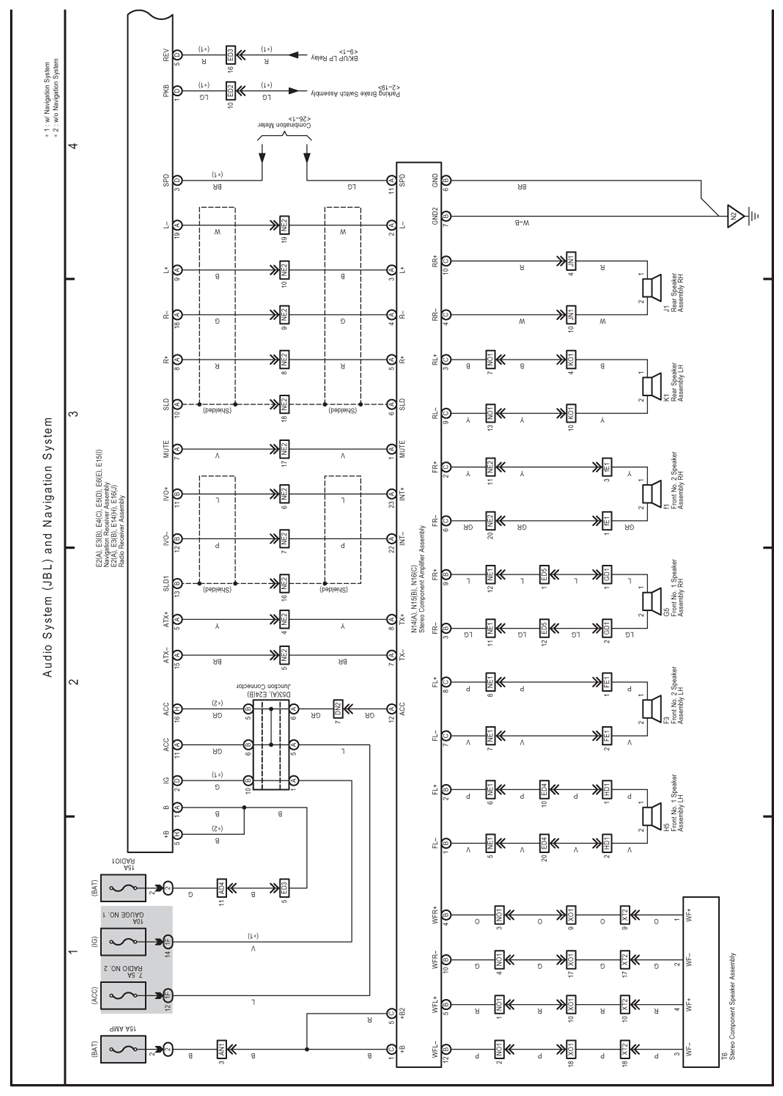

Fig 3: Audio System (JBL) And Navigation System Electrical Wiring Diagram (3 Of 3)
