Audio System (Except JBL)

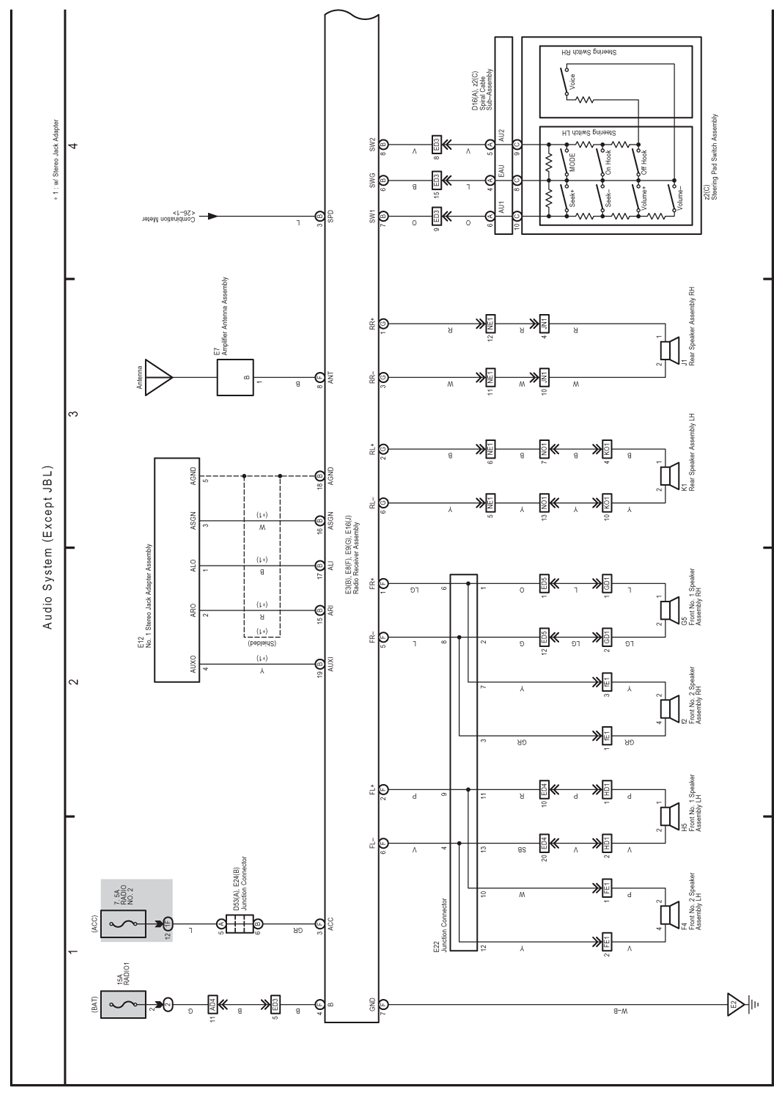

Fig 1: Audio System (Except JBL) Electrical Wiring Diagram (1 Of 2)
G07610827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

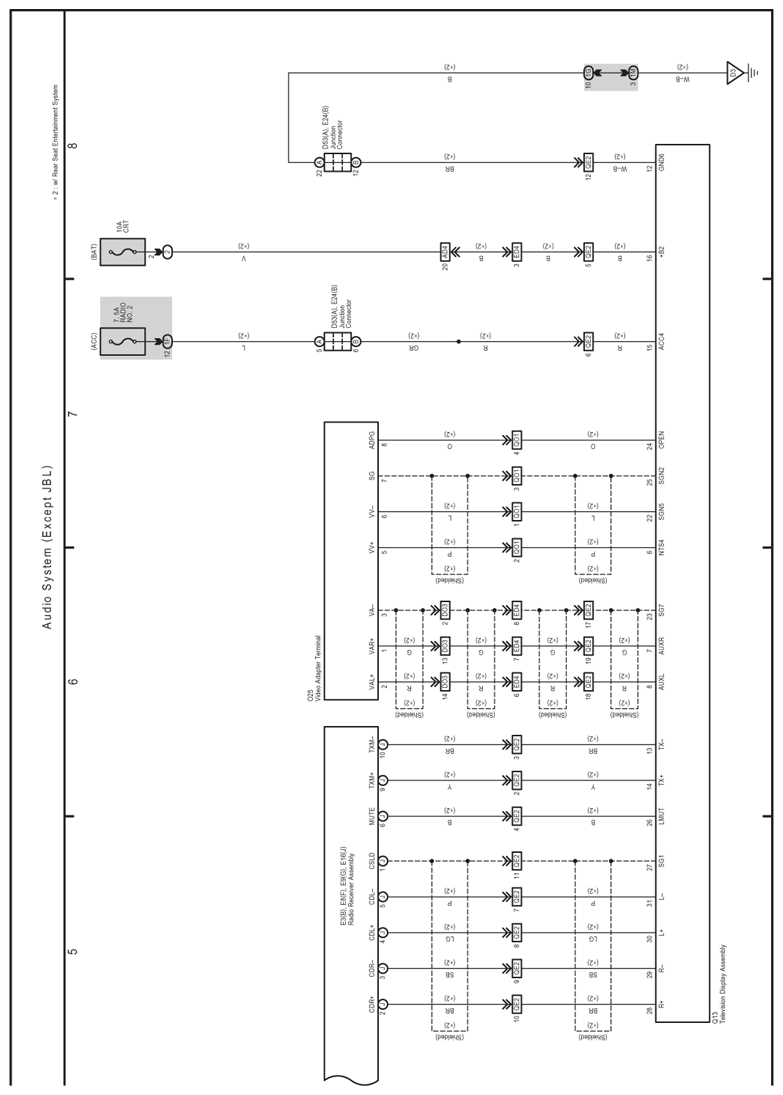

Fig 2: Audio System (Except JBL) Electrical Wiring Diagram (2 Of 2)
G07610828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
