Home >> Toyota >> 2009 >> Highlander Limited, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Rear Wiper and Washer, Trailer Towing

Rear Wiper and Washer, Trailer Towing

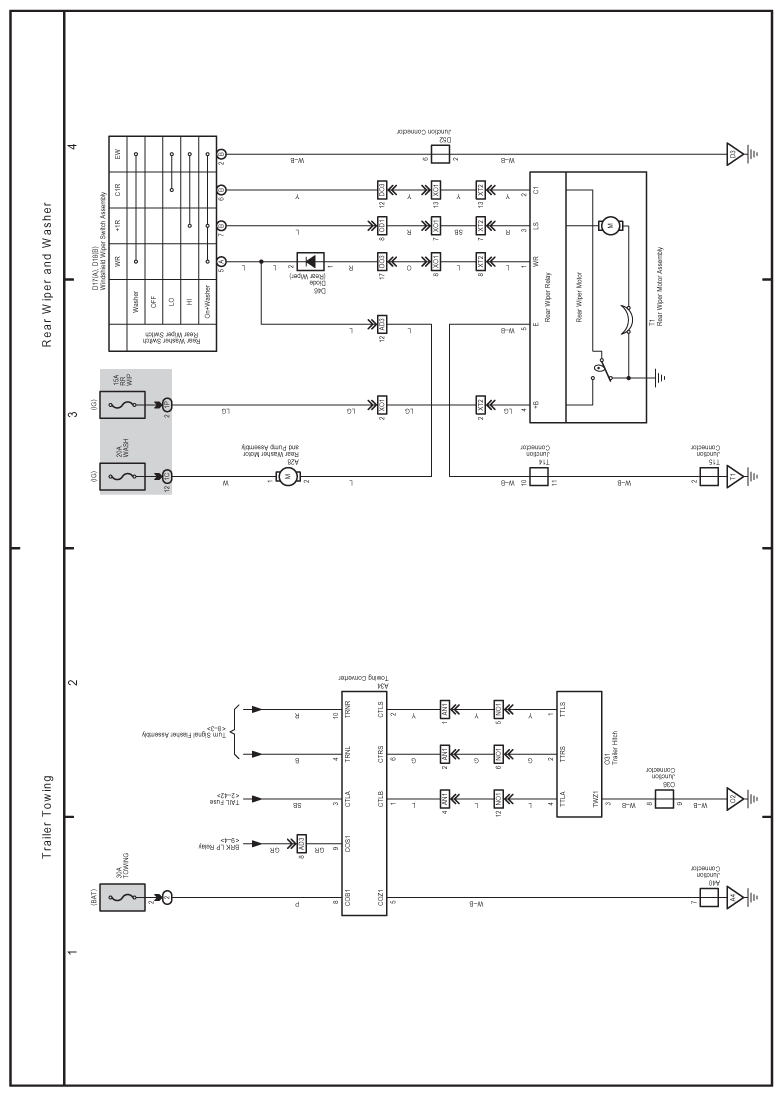

Fig 1: Rear Wiper And Washer Electrical Wiring Diagram

G07608717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
