Multi Display, Parking Assist (Rear View Monitor w/o Navigation System)

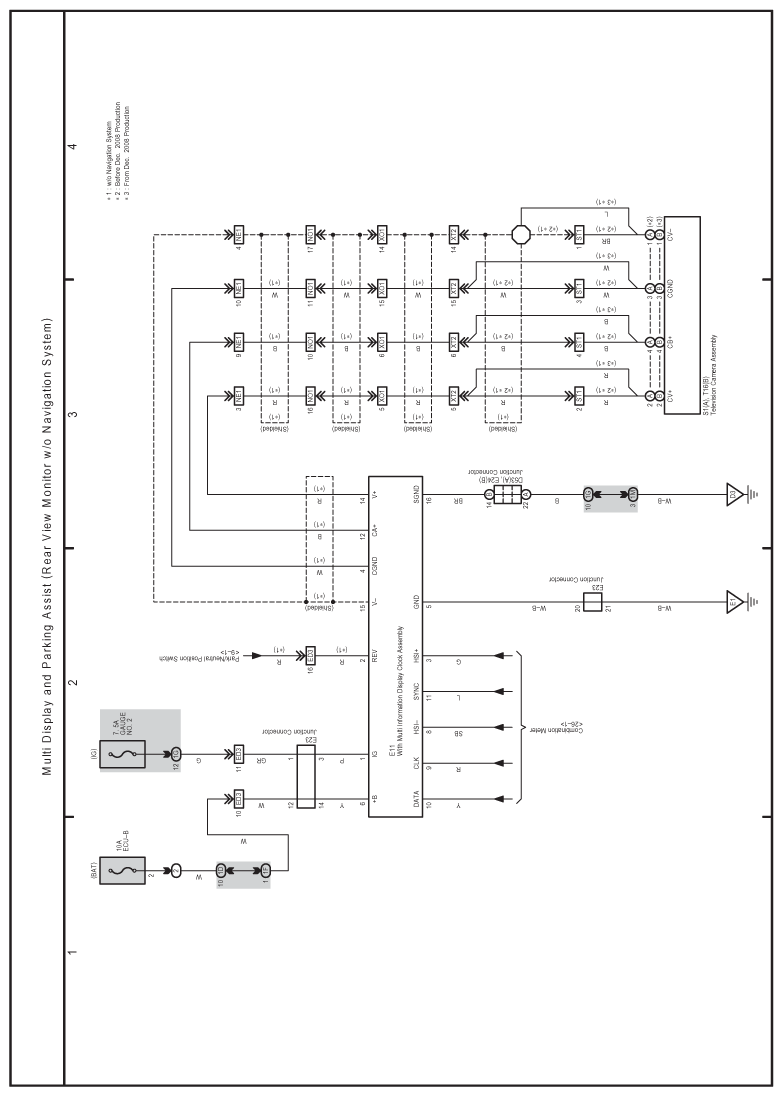

Fig 1: Multi Display And Parking Assist (Rear View Monitor W/O Navigation System) Electrical Wiring Diagram
G07608732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
