Mirror Heater, Remote Control Mirror

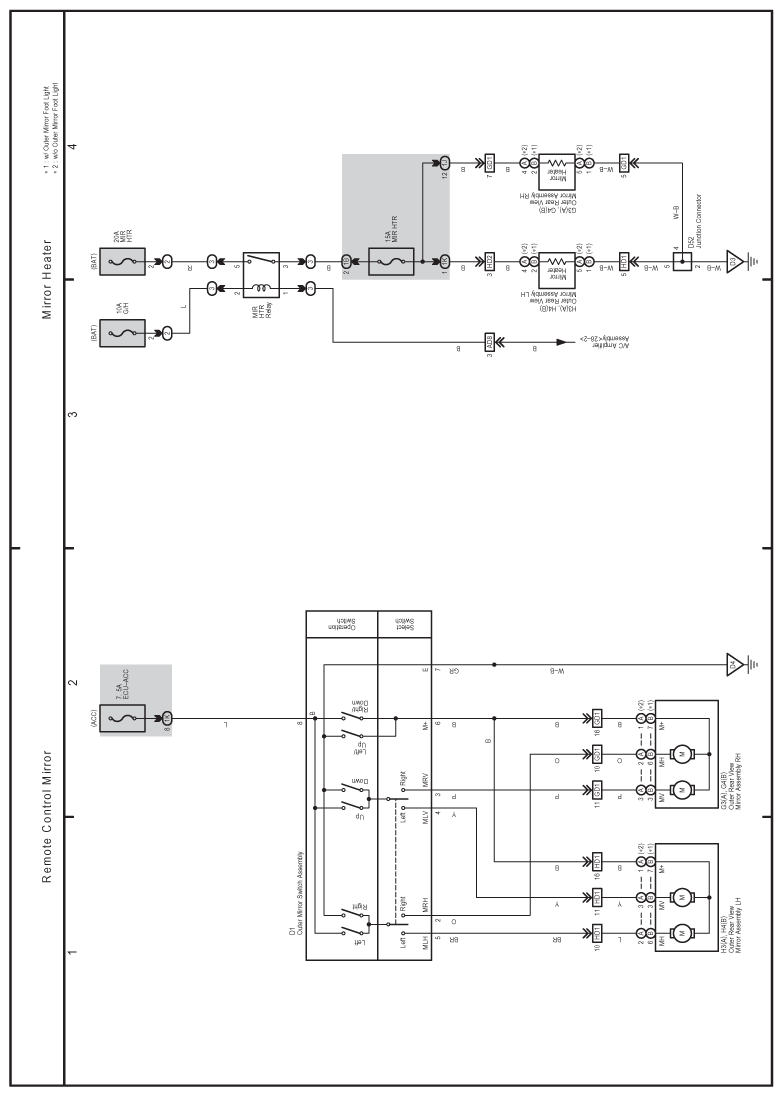

Fig 1: Mirror Heater Electrical Wiring Diagram

G07608729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
