Front Window Deicer, Horn, Shift Lock

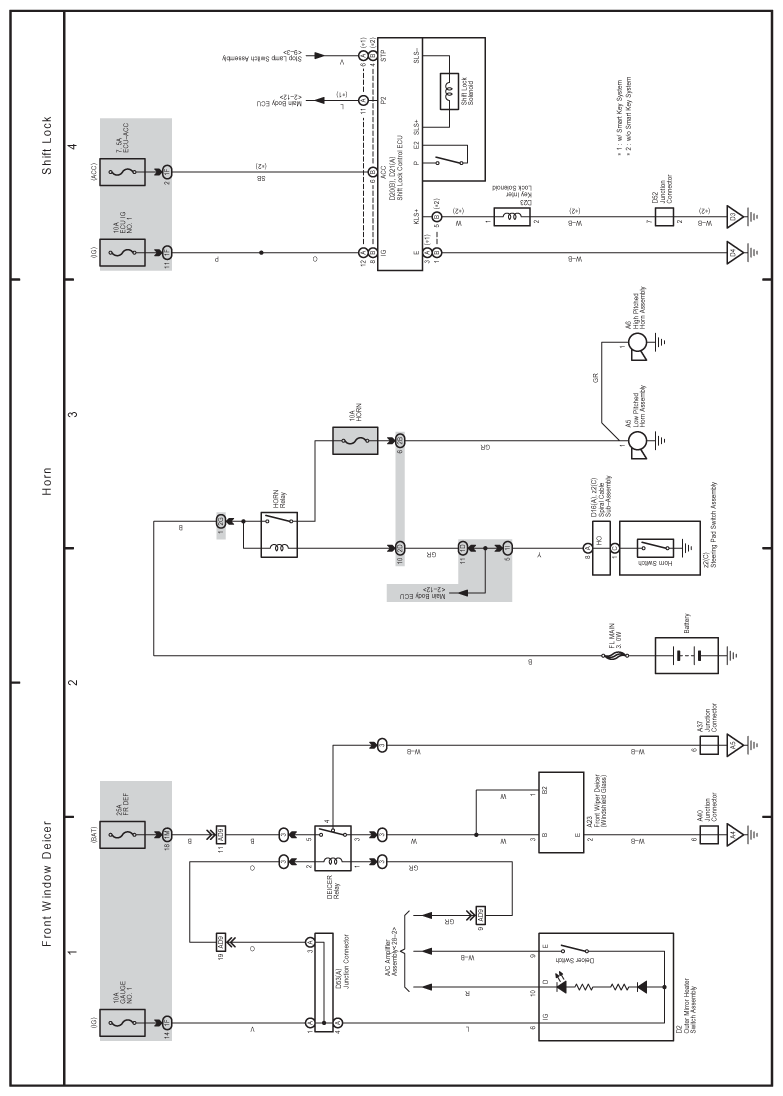

Fig 1: Horn Electrical Wiring Diagram

G07608730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
