Automatic Glare-Resistant EC Mirror with Compass, Clock (w/o Multi Display), Sliding Roof

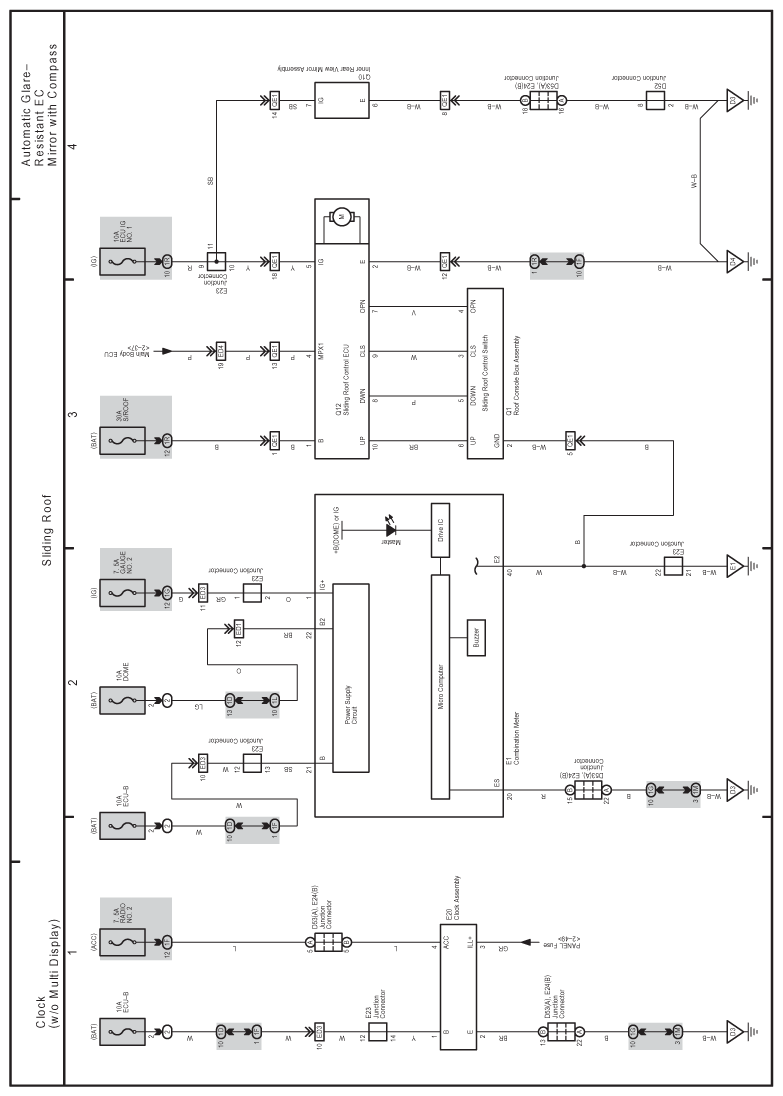

Fig 1: Sliding Roof Electrical Wiring Diagram

G07608718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
