Toyota
>>
2009
>>
Highlander Limited, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Audio System (JBL), Navigation System, Parking Assist (Rear View Monitor w/ Navigation System)
Audio System (JBL), Navigation System, Parking Assist (Rear View Monitor w/ Navigation System)

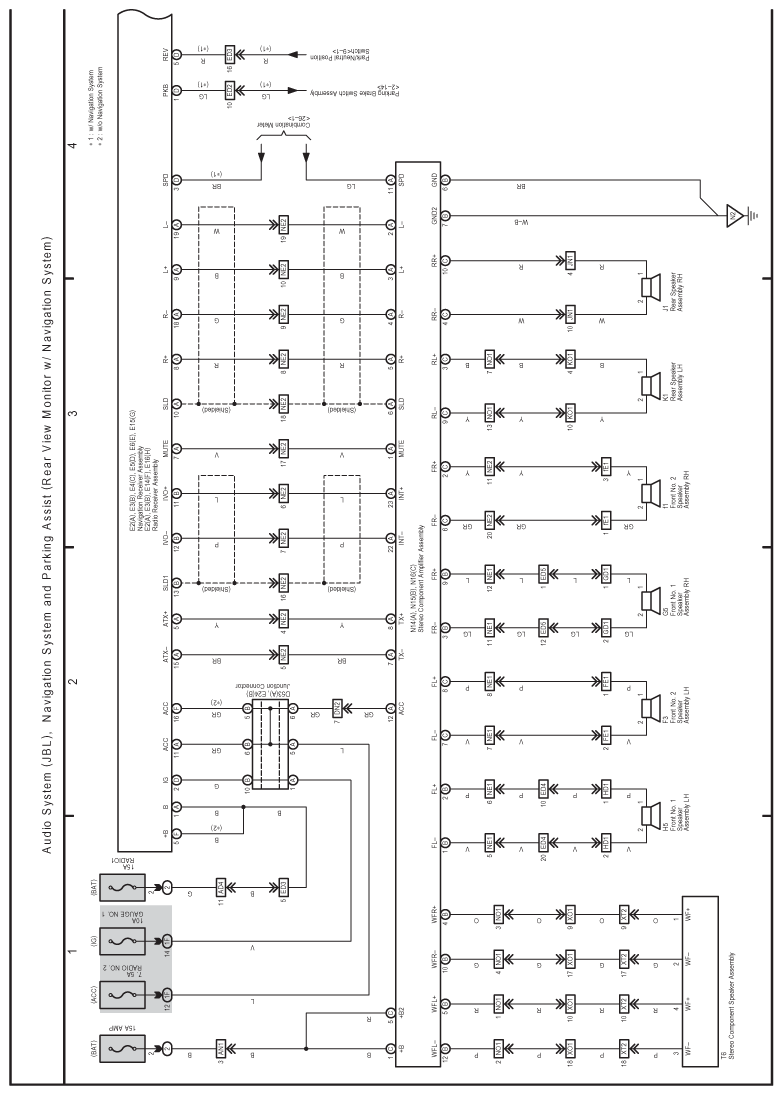

Fig 1: Multi Display And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

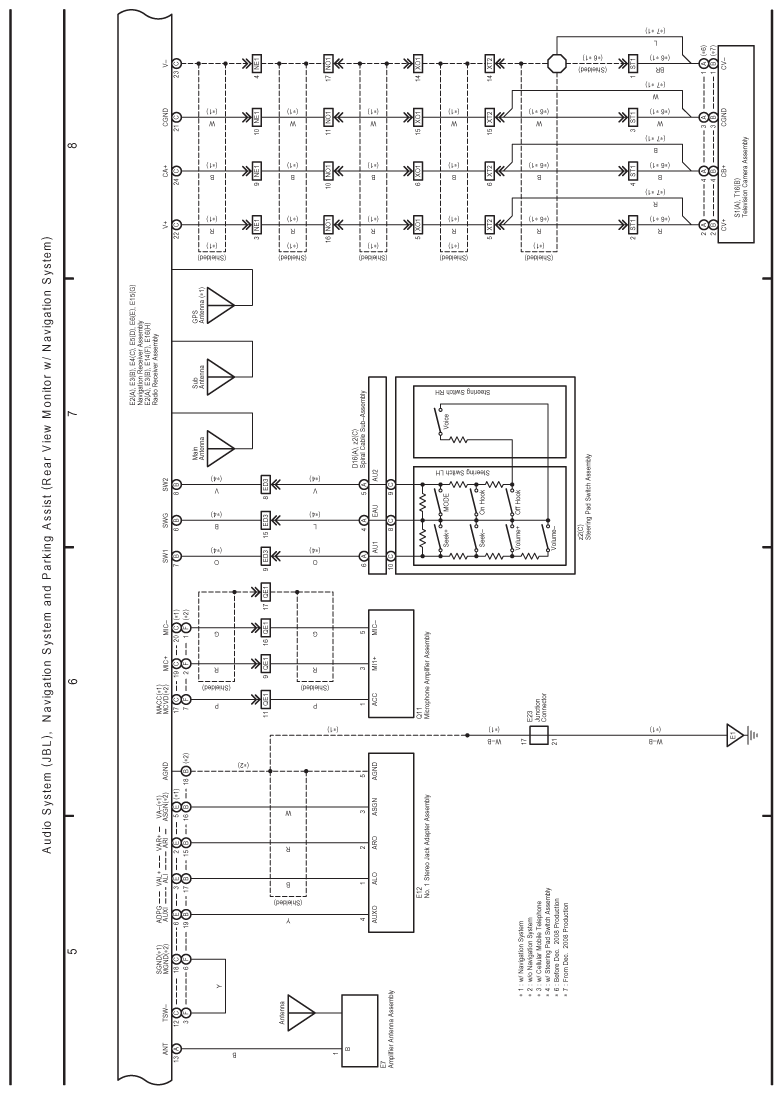

Fig 2: Multi Display And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

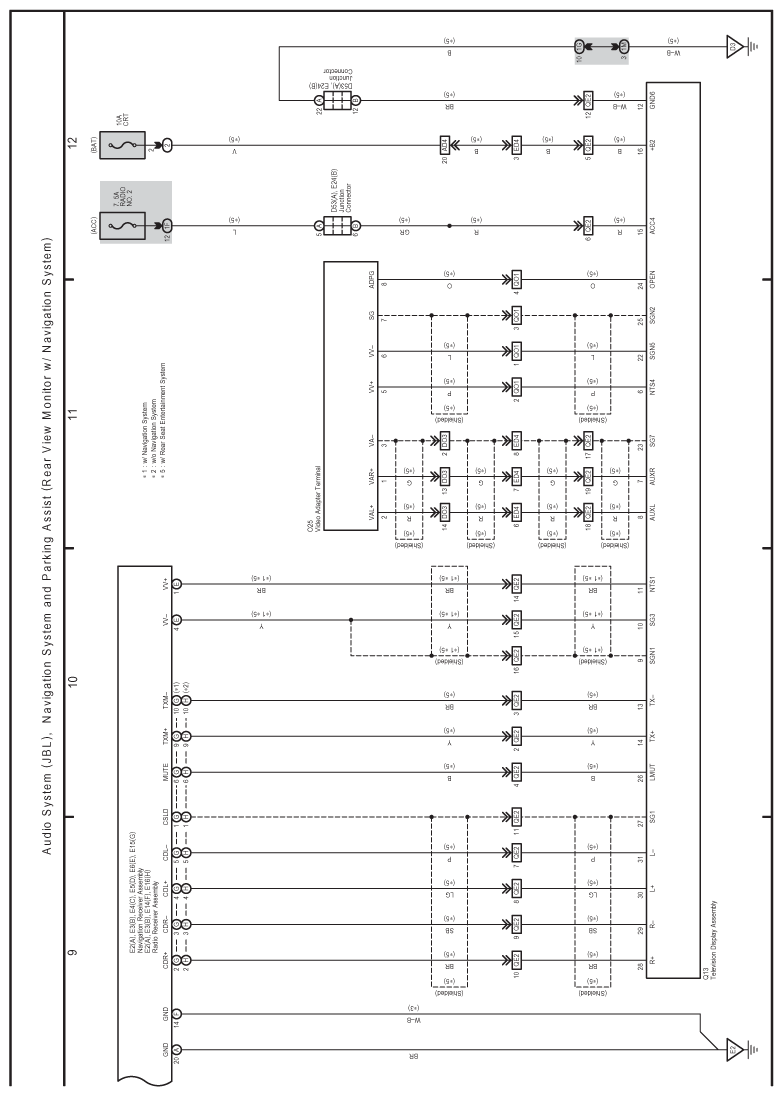

Fig 3: Multi Display And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
