Air Conditioning

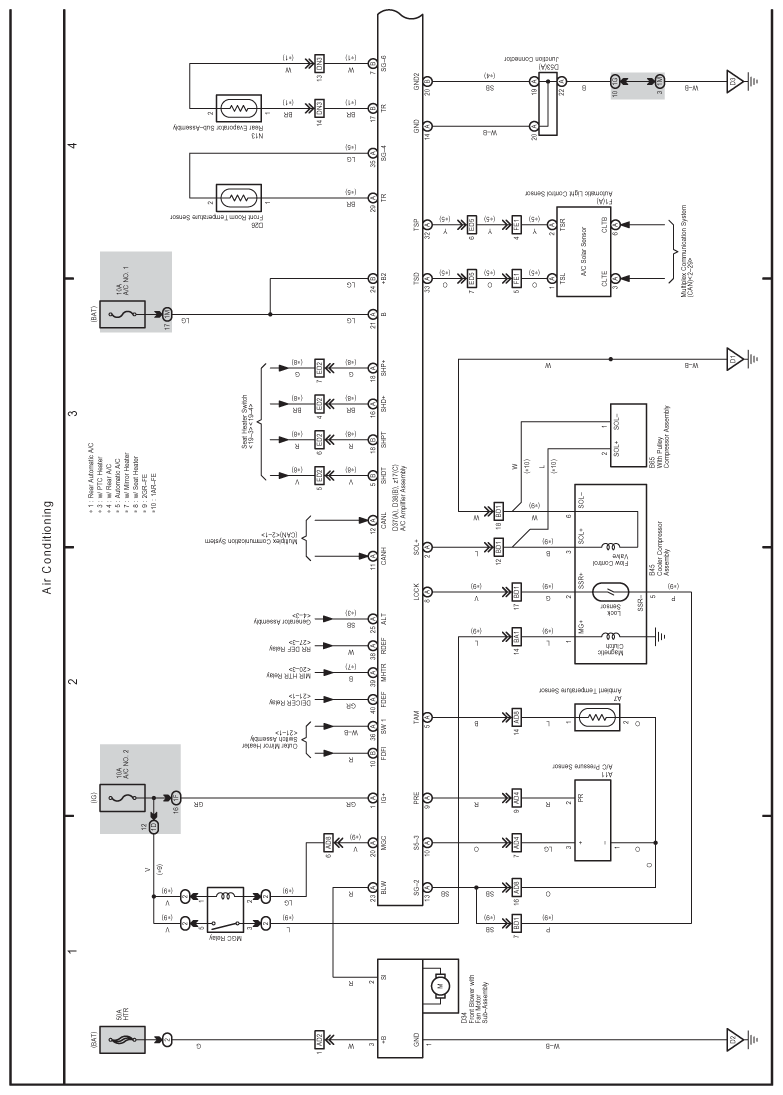

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 3)
G07608741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

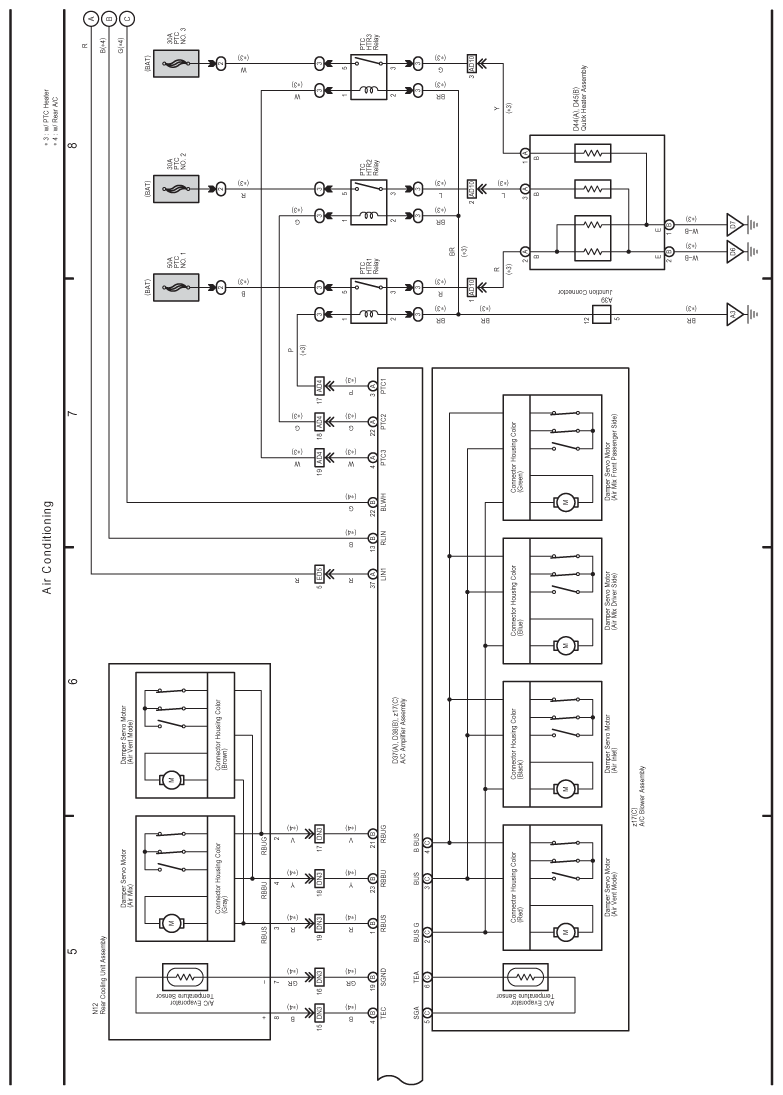

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 3)
G07608742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

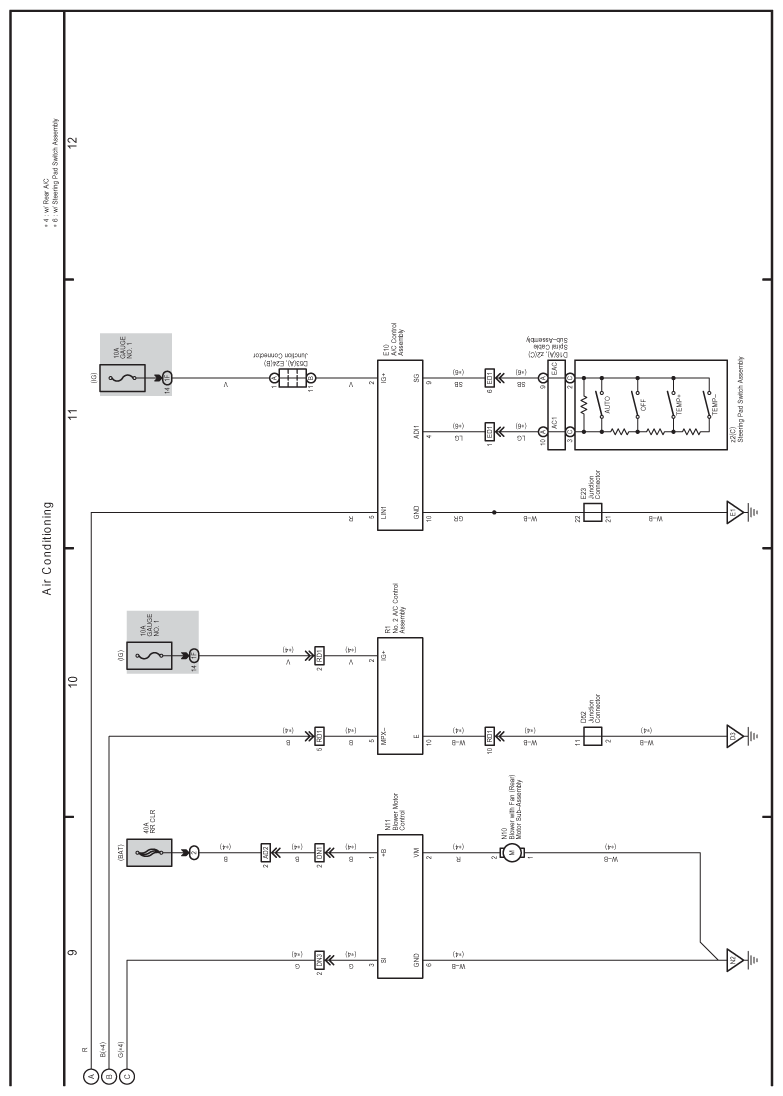

Fig 3: Air Conditioning Electrical Wiring Diagram (3 Of 3)
G07608743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
