Position of Parts in Engine Compartment: [1AR-FE]

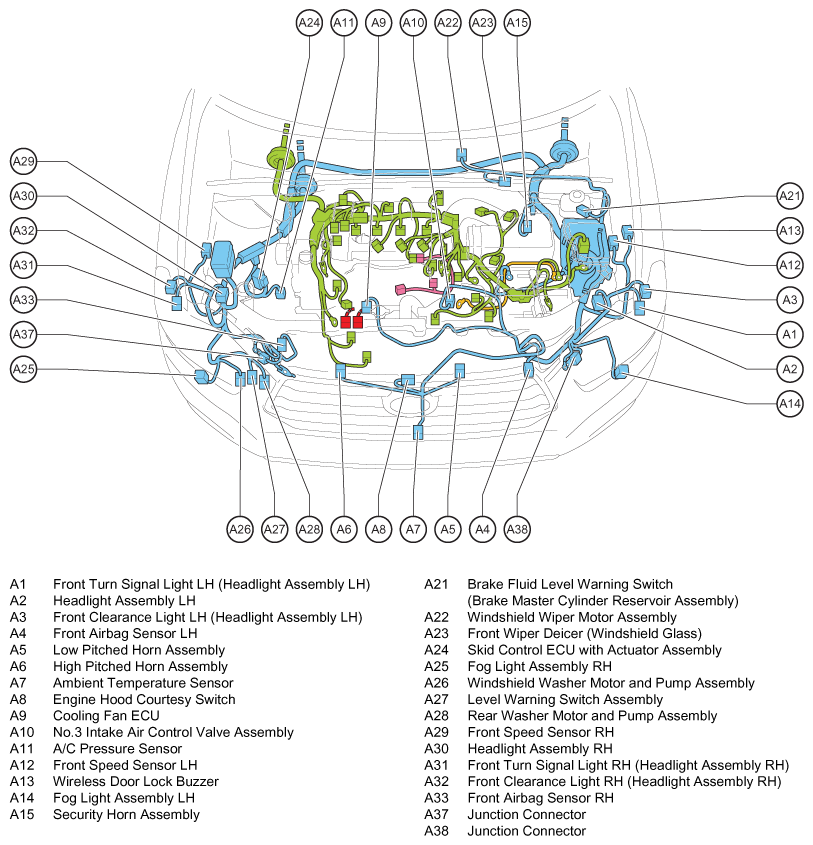

Fig 1: Engine Compartment Parts - 1AR-FE (1 Of 2)
G07608365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

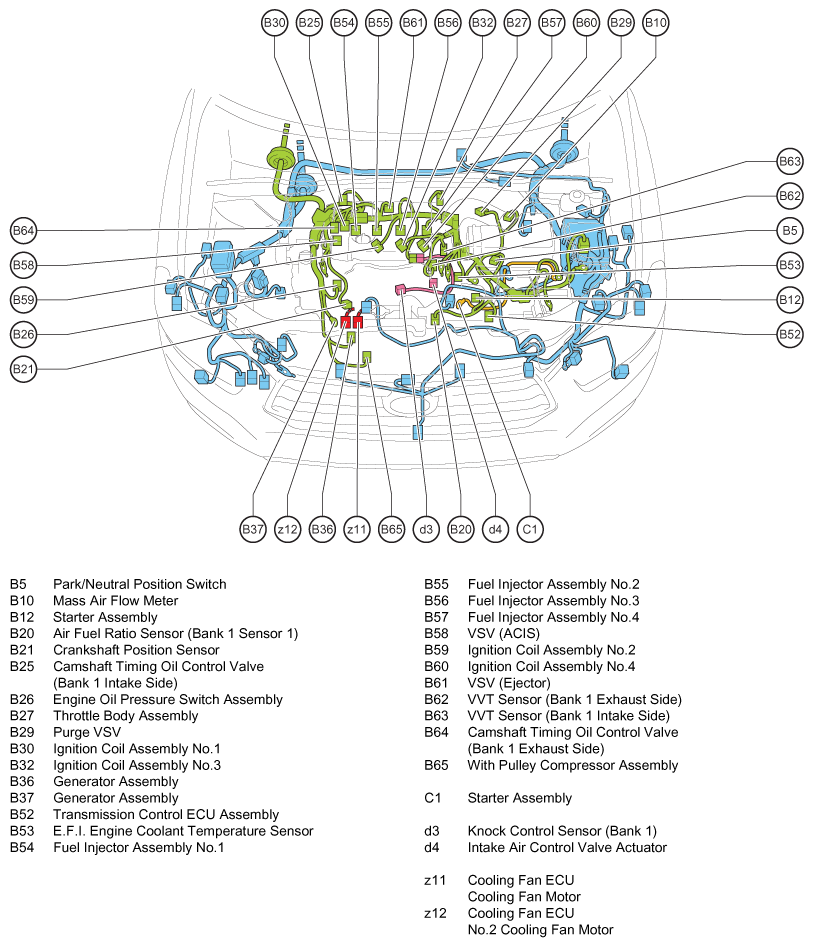

Fig 2: Engine Compartment Parts - 1AR-FE (2 Of 2)
G07608366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
