Position of Parts in Body

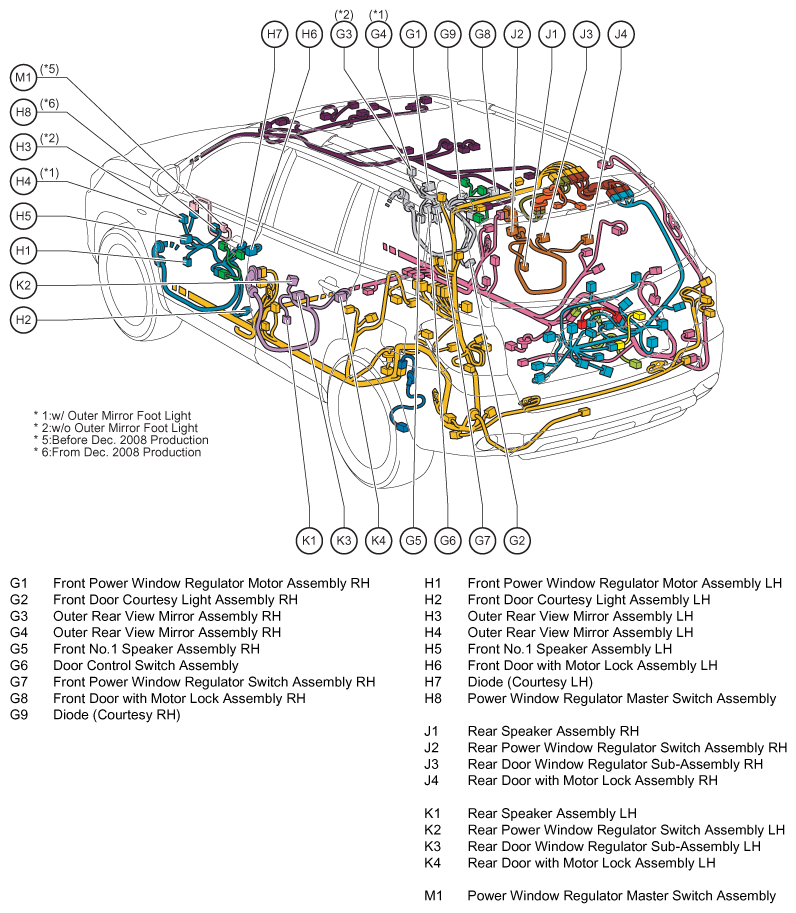

Fig 1: Body Parts (1 Of 4)
G07608371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

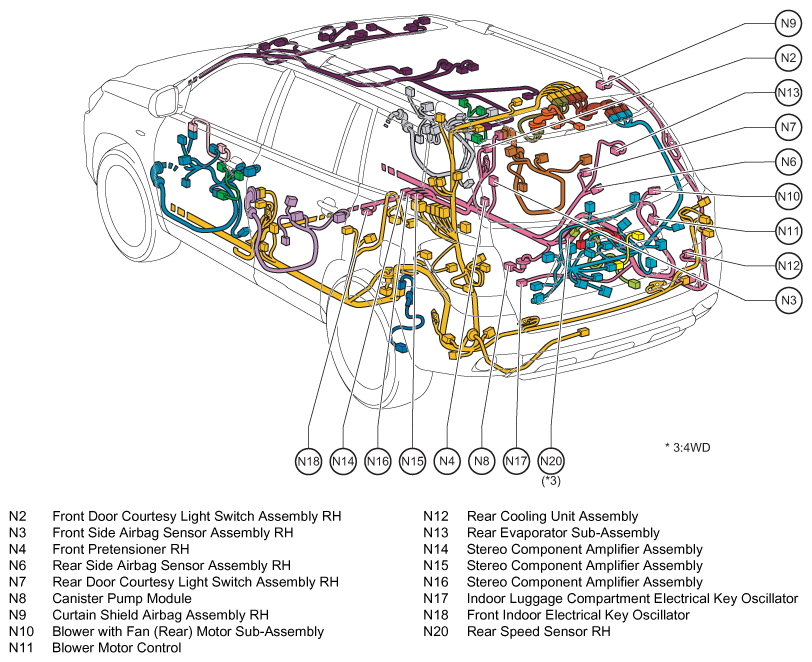

Fig 2: Body Parts (2 Of 4)
G07608372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

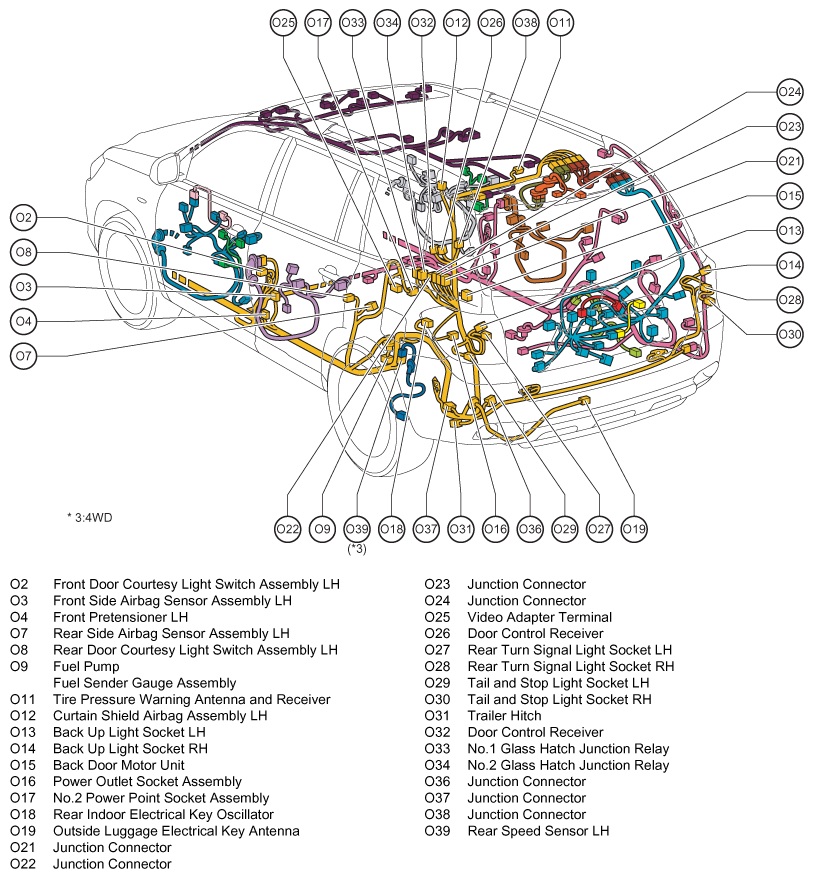

Fig 3: Body Parts (3 Of 4)
G07608373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

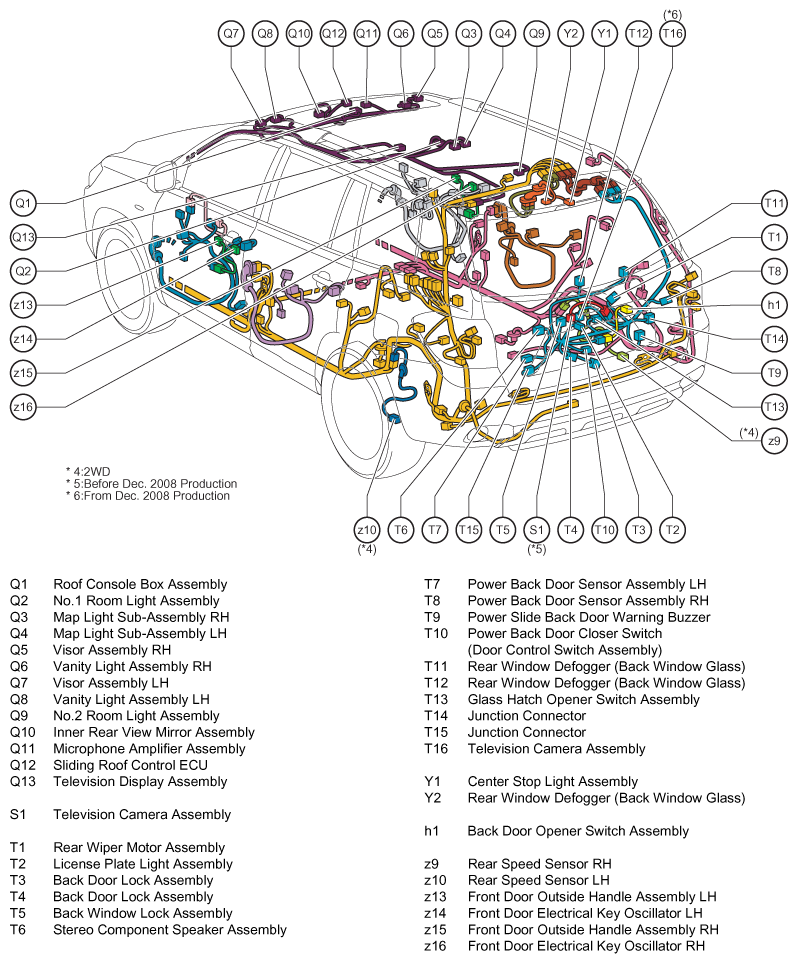

Fig 4: Body Parts (4 Of 4)
G07608374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
