Electrical Wiring Routing: Antenna

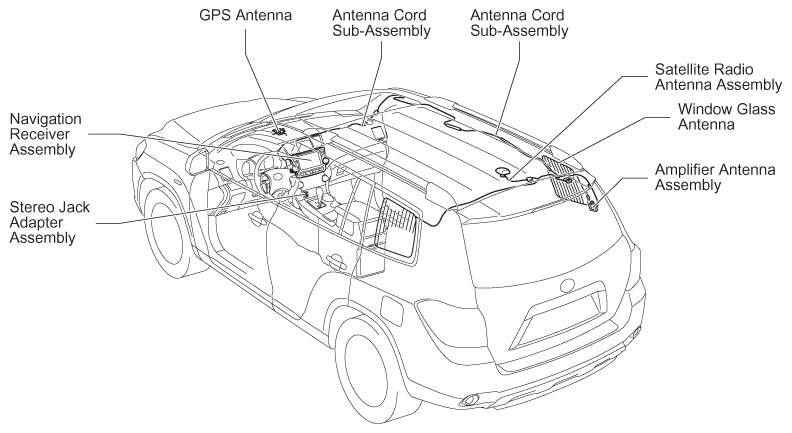

Fig 1: Locating Wire Harnesses Points (Antenna)

G07608386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
