Connector Joining Wire Harness, Wire Harness, and Ground Point Locations: [1AR-FE]

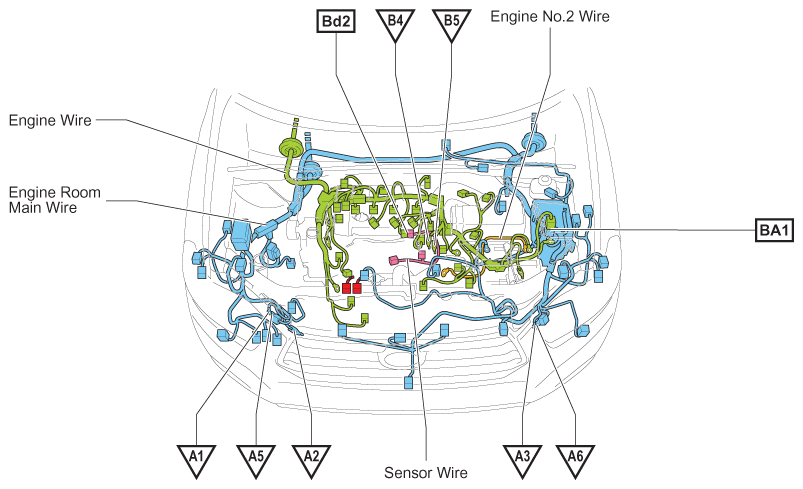

Fig 1: Locating Wire Harnesses And Ground Points (1AR-FE)

G07608378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
