REAR DRIVE SHAFT (for 4WD): Components

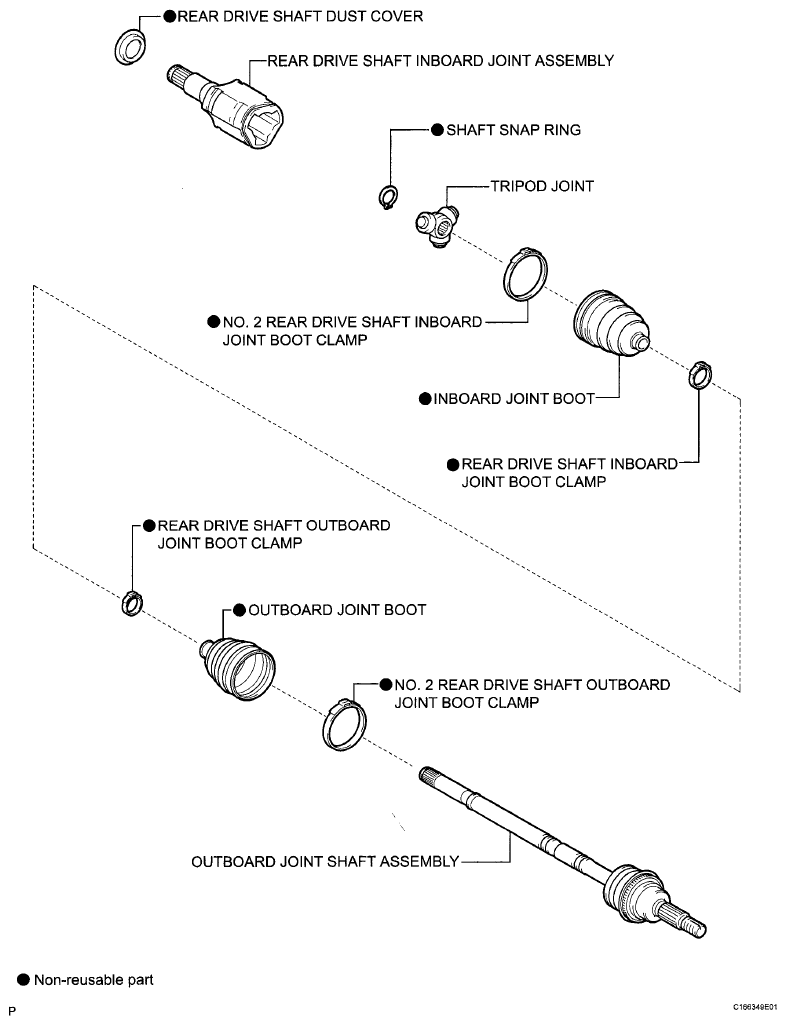

Fig 1: Rear Drive Shaft Replacement Components With Torque Specifications (For 4WD) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

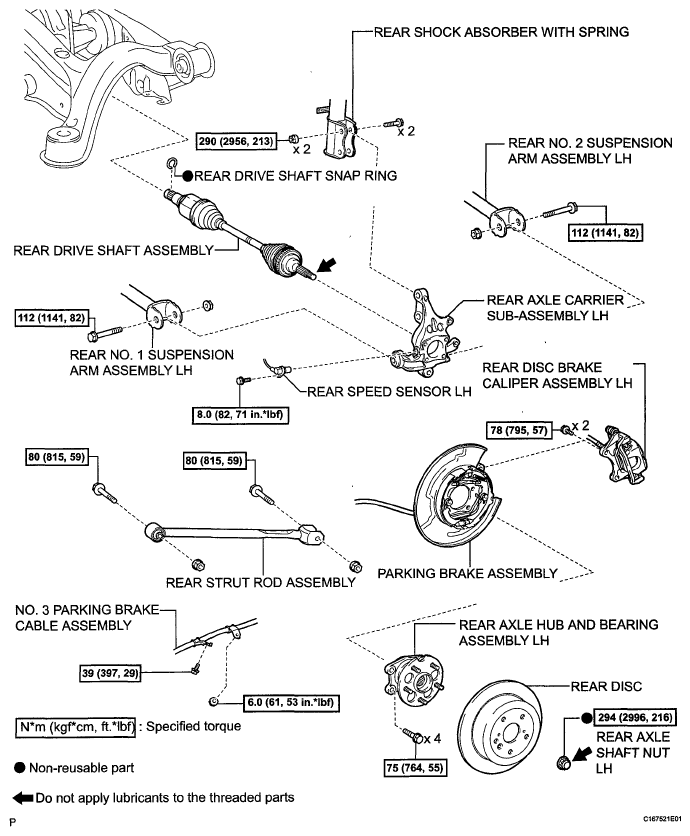

Fig 2: Rear Drive Shaft Replacement Components With Torque Specifications (For 4WD) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
