FRONT DRIVE SHAFT (for 1AR-FE): Components

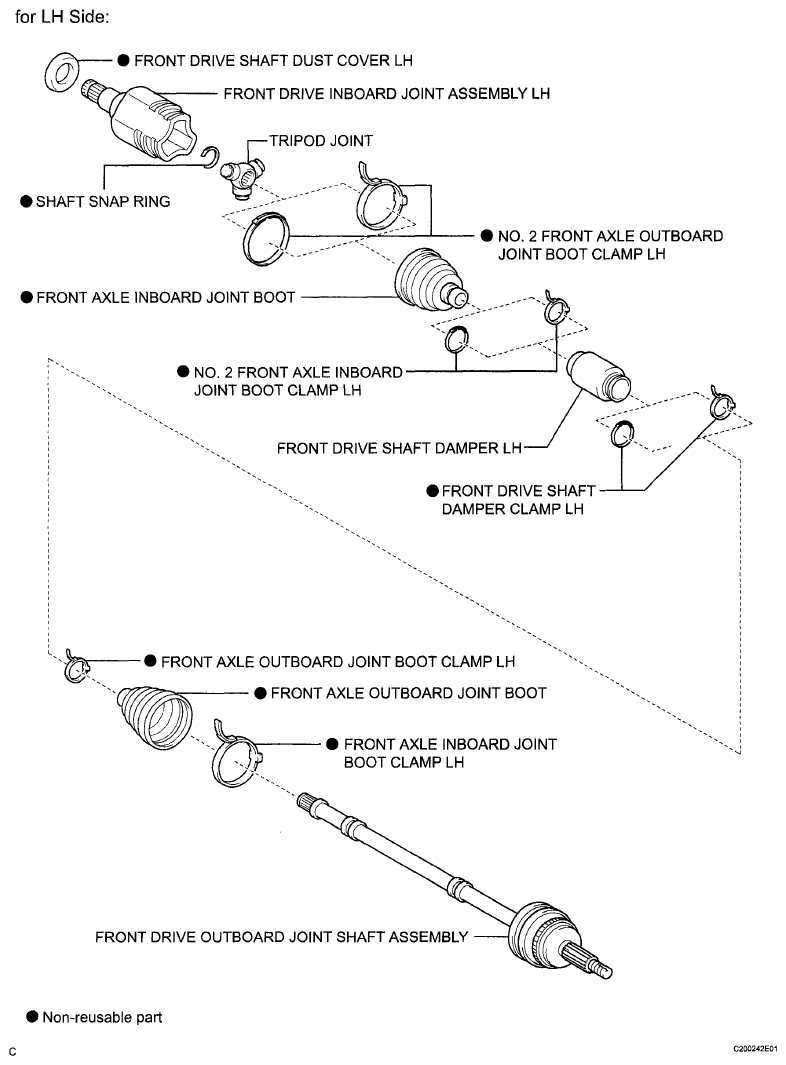

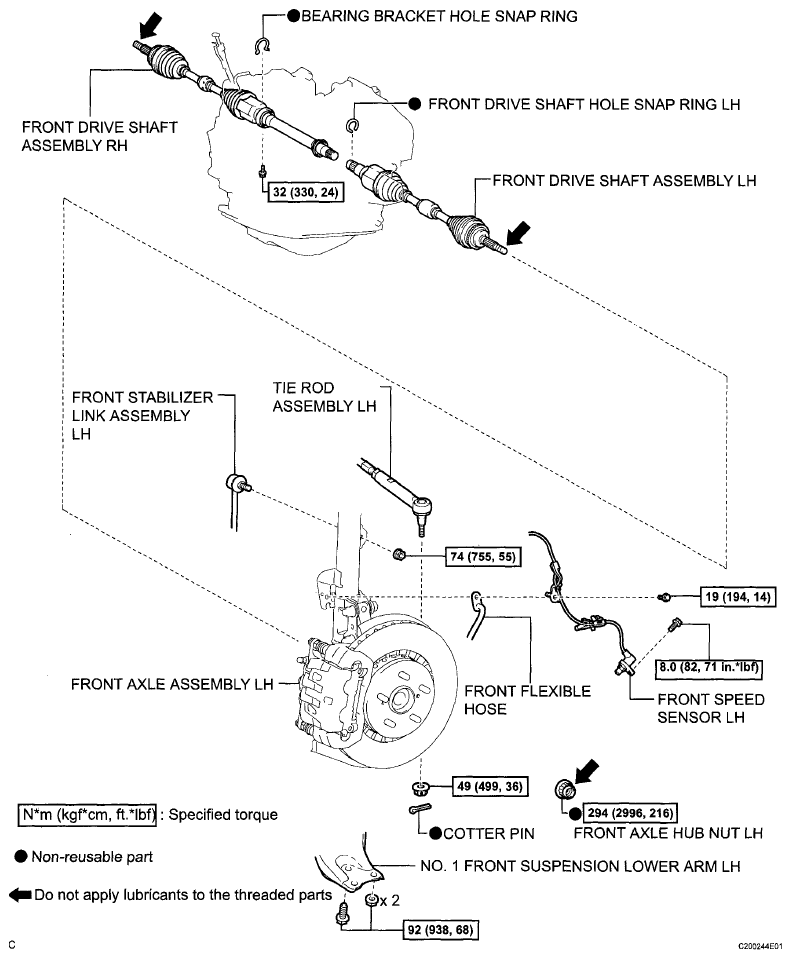

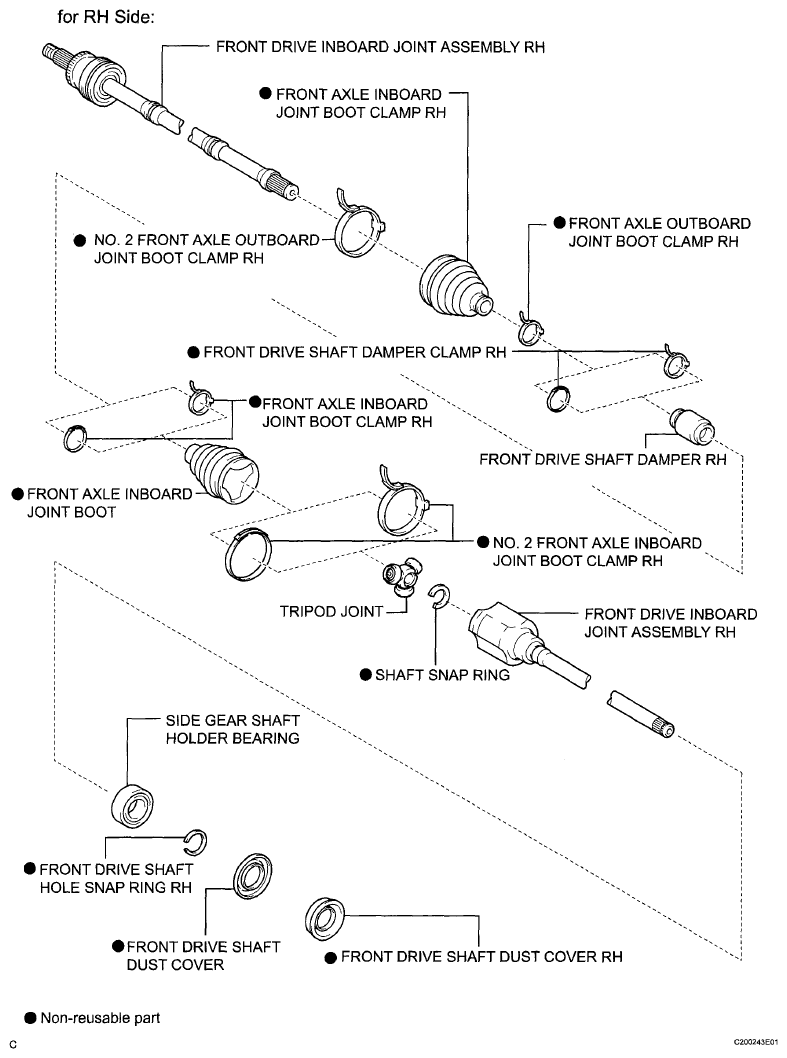

Fig 1: Front Drive Shaft Replacement Components With Torque Specifications (For 1AR-FE) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Drive Shaft Replacement Components With Torque Specifications (For 1AR-FE) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Drive Shaft Replacement Components With Torque Specifications (For 1AR-FE) (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Drive Shaft Replacement Components With Torque Specifications (For 1AR-FE) (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
