Parking Brake Pedal: Components

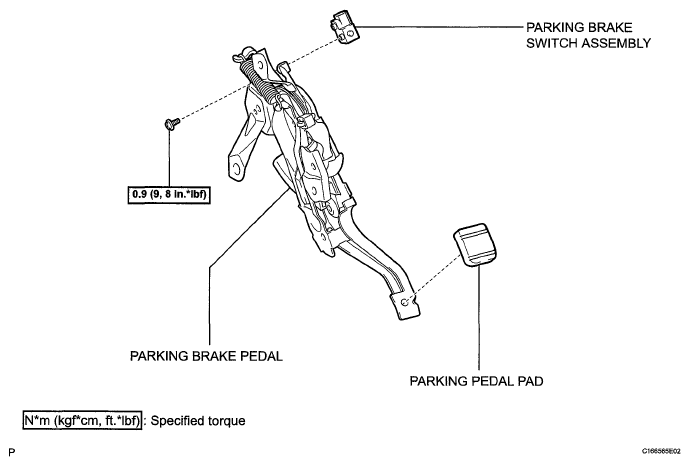

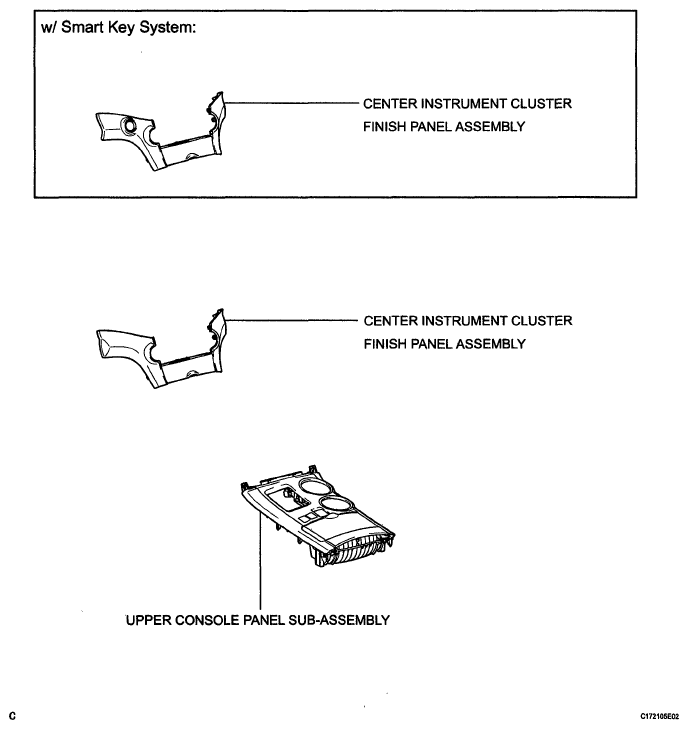

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

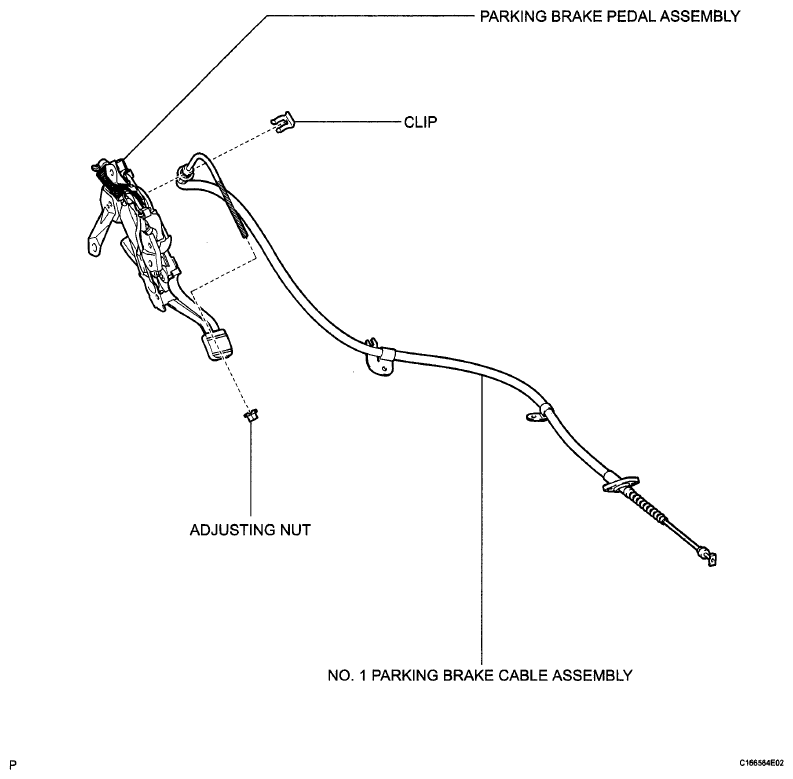

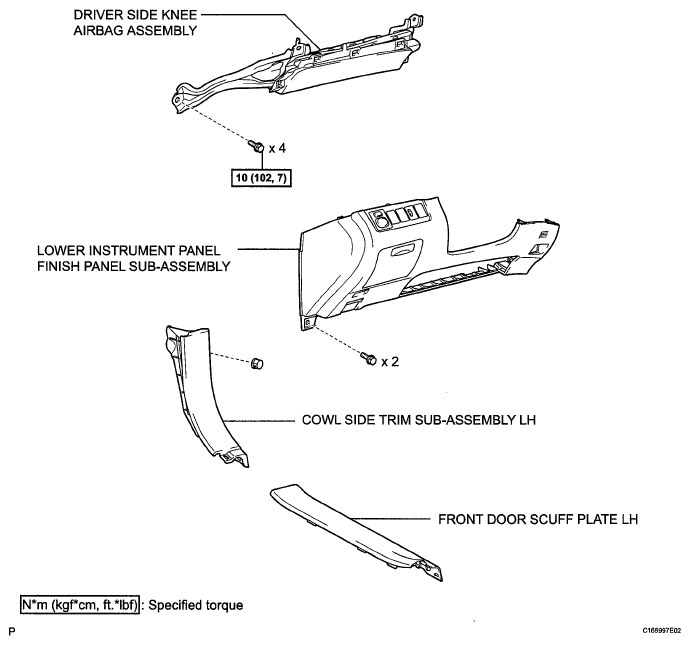

Fig 2: Parking Brake Pedal Replacement Components With Torque Specifications (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

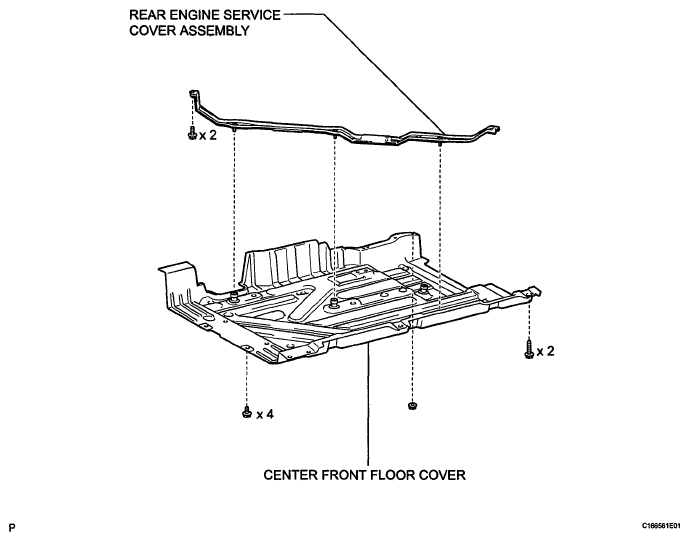

Fig 3: Parking Brake Pedal Replacement Components With Torque Specifications (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

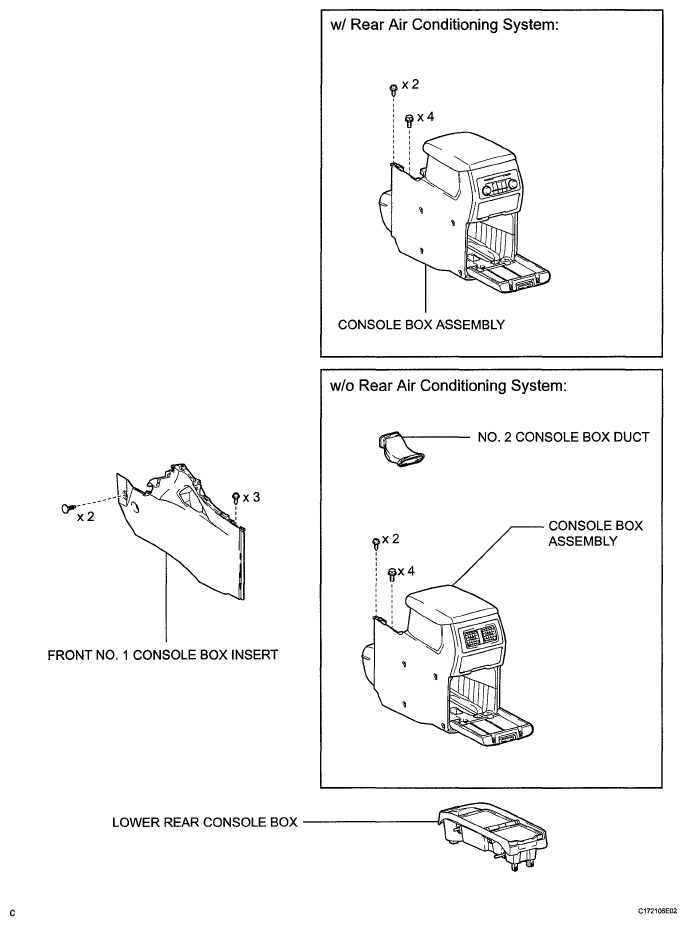

Fig 4: Parking Brake Pedal Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

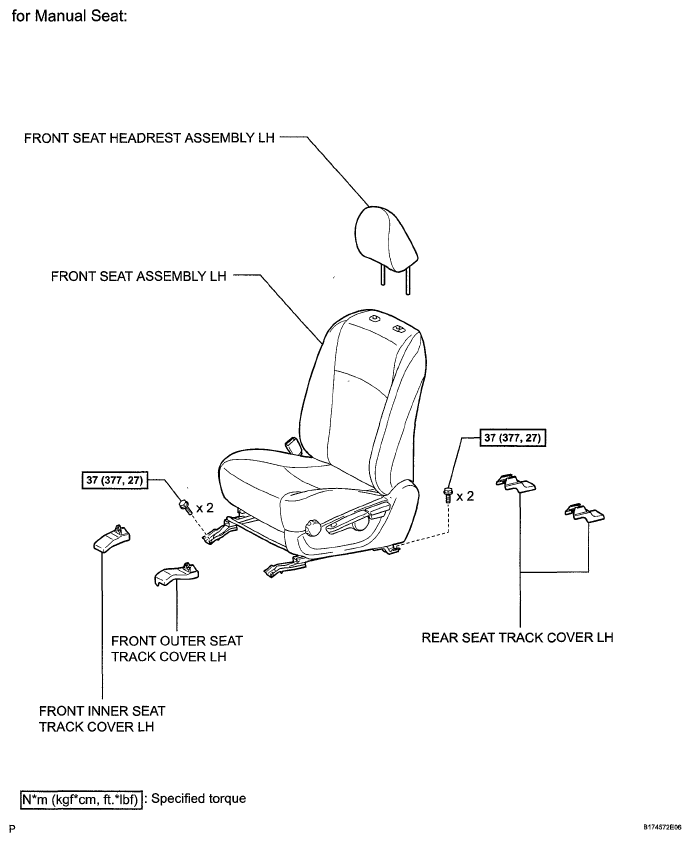

Fig 5: Parking Brake Pedal Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

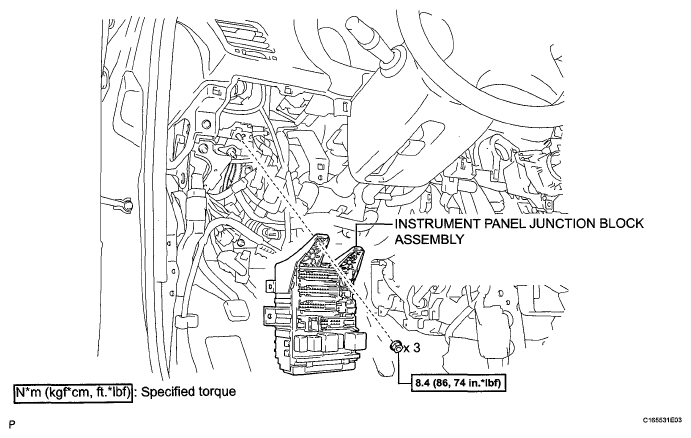

Fig 6: Parking Brake Pedal Replacement Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

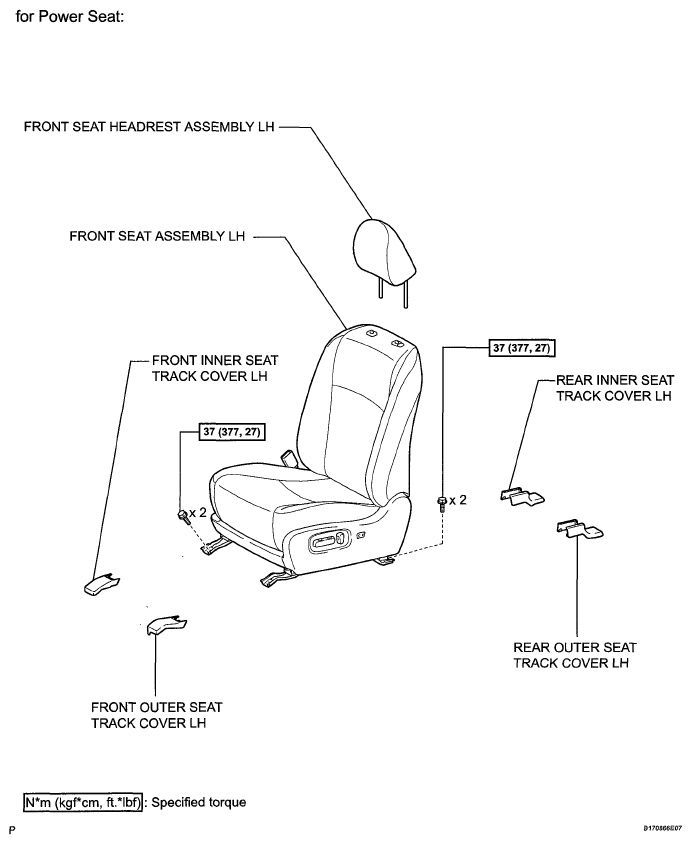

Fig 7: Parking Brake Pedal Replacement Components With Torque Specifications (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Parking Brake Pedal Replacement Components With Torque Specifications (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Parking Brake Pedal Replacement Components With Torque Specifications (9 Of 12)

Fig 10: Parking Brake Pedal Replacement Components With Torque Specifications (10 Of 12)

Fig 11: Parking Brake Pedal Replacement Components With Torque Specifications (11 Of 12)

Fig 12: Parking Brake Pedal Replacement Components With Torque Specifications (12 Of 12)
