Parking Brake Cable: Components

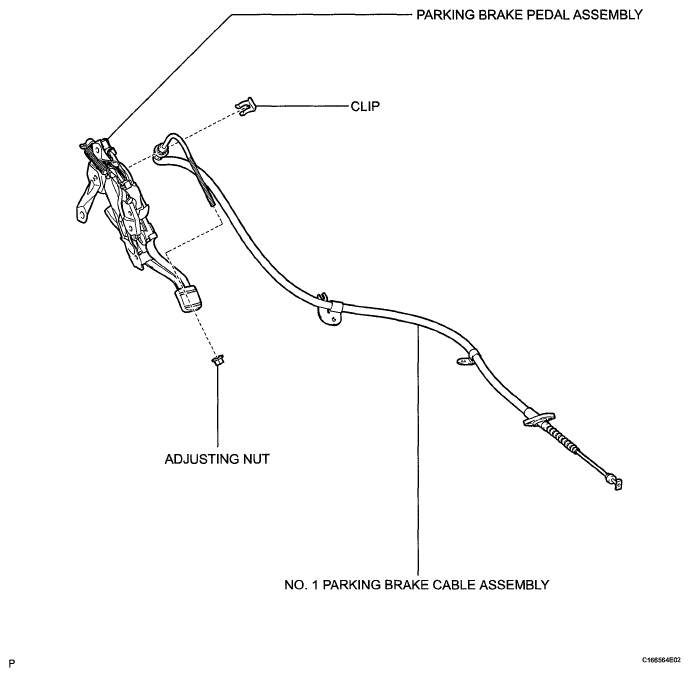

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (10 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

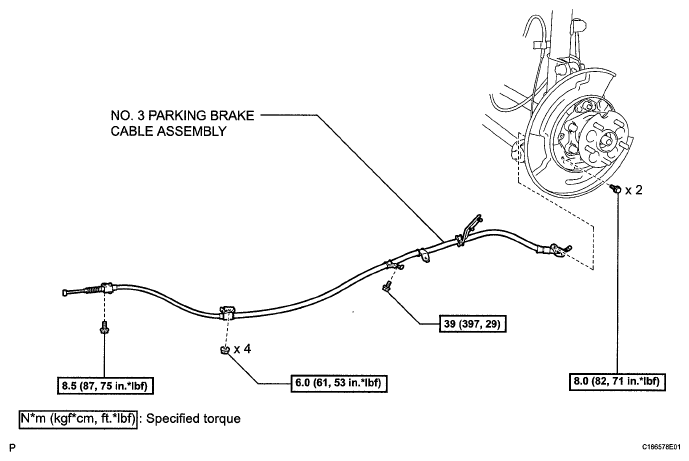

Fig 2: Parking Brake Cable Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

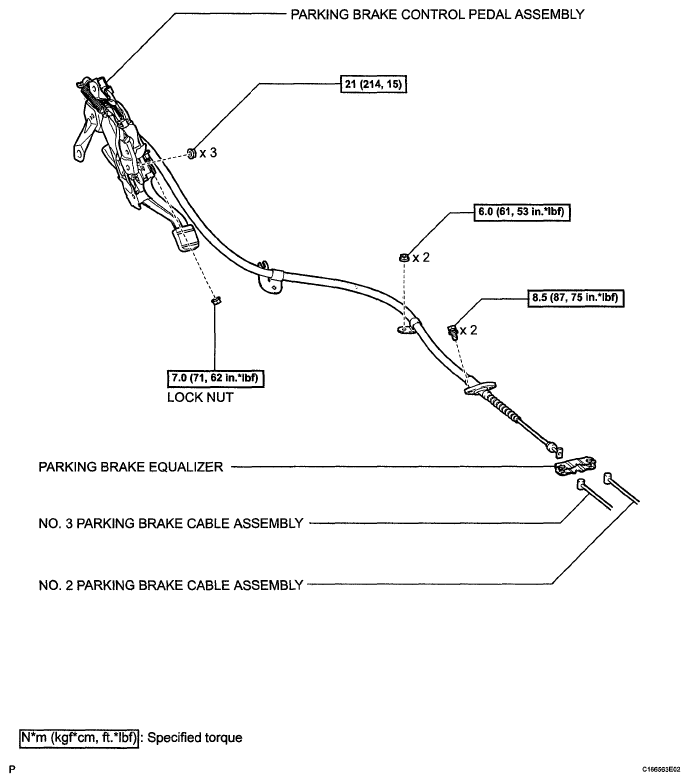

Fig 3: Parking Brake Cable Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

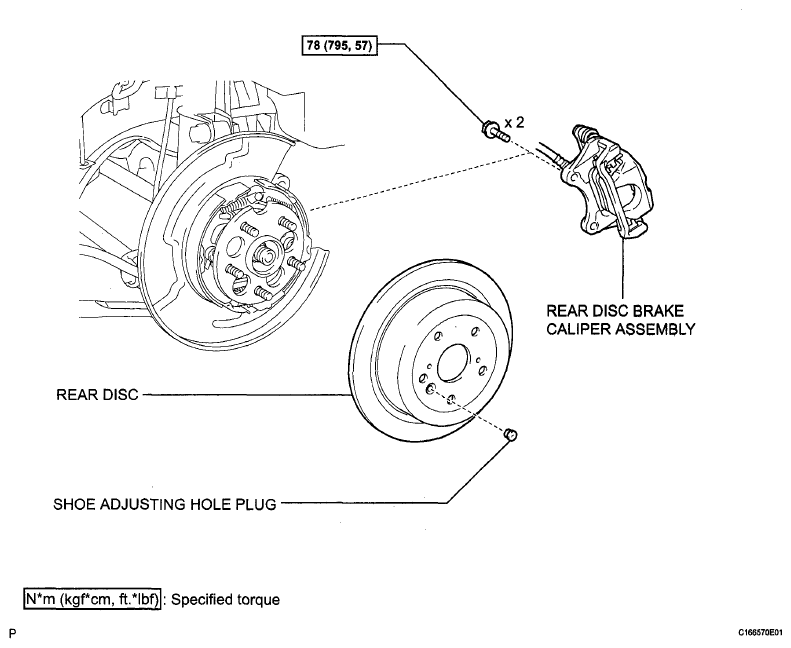

Fig 4: Parking Brake Cable Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

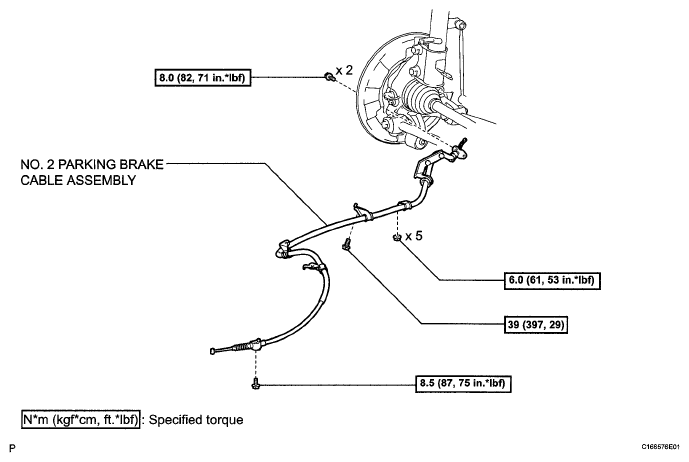

Fig 5: Parking Brake Cable Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Parking Brake Cable Replacement Components With Torque Specifications (6 Of 8)

Fig 7: Parking Brake Cable Replacement Components With Torque Specifications (7 Of 8)

Fig 8: Parking Brake Cable Replacement Components With Torque Specifications (8 Of 8)
