Home >> Toyota >> 2009 >> Highlander Limited, FWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes - Mechanical (Except Hybrid) >> VACUUM SWITCHING VALVE (for 1AR-FE) >> Components

VACUUM SWITCHING VALVE (for 1AR-FE): Components

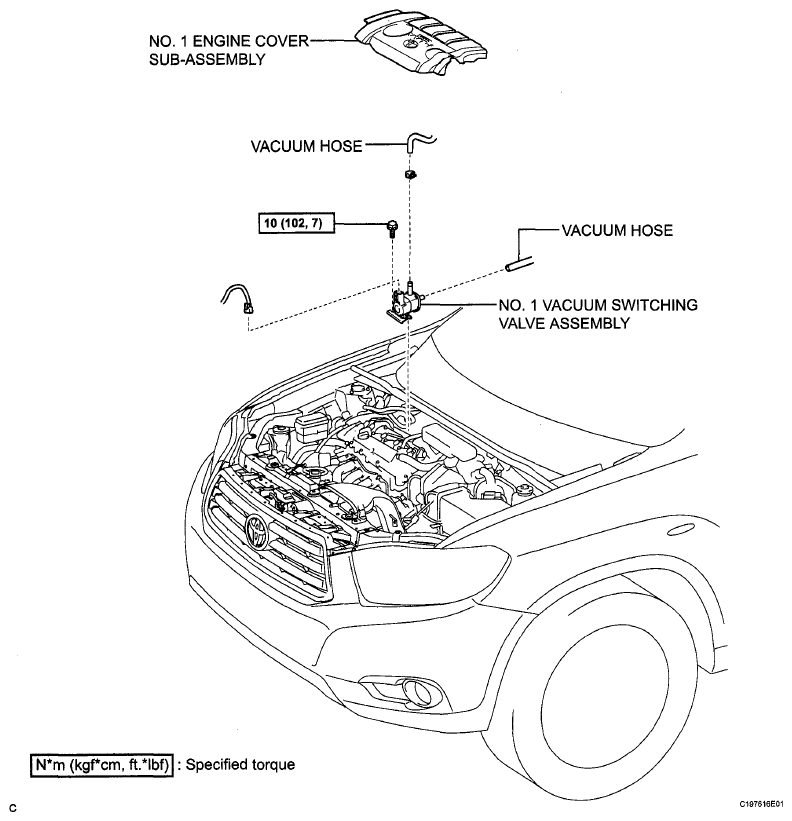

Fig 1: Vacuum Switching Valve (1AR-FE) Replacement Components With Torque Specifications

G06116802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
