Rear Brake Pad, Brake Caliper & Brake Rotor: Components

Fig 1: Rear Brake Replacement Components With Torque Specifications (1 Of 2)
G05417990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

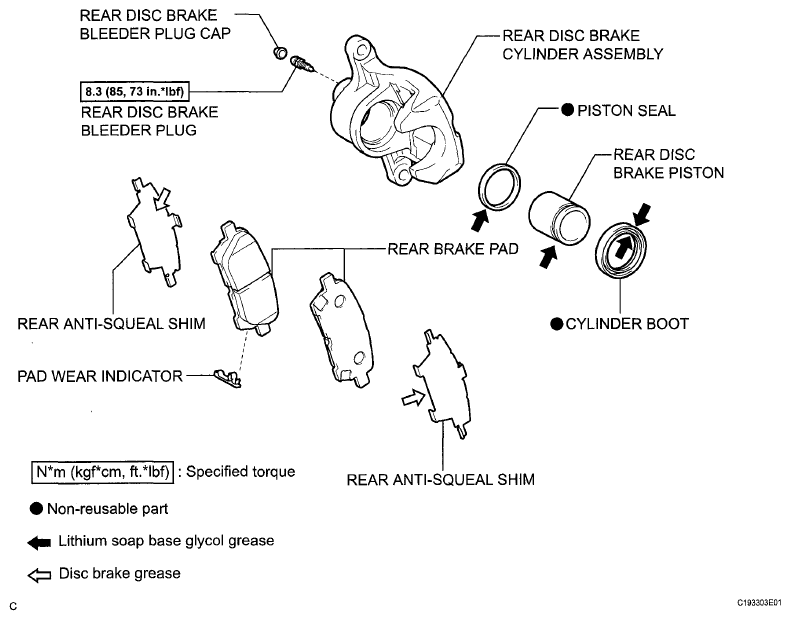

Fig 2: Rear Brake Replacement Components With Torque Specifications (2 Of 2)
G06116858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
