EJECTOR TUBE (for 1 AR-FE): Installation

INSTALL EJECTOR TUBE
1. Connect the 4 vacuum hoses to the ejector tube to install it.
  NOTE: Install the ejector tube in the correct direction.

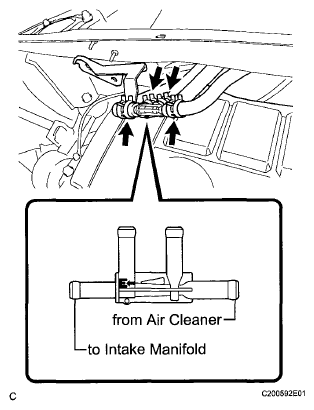

  Fig 1: Connecting Vacuum Hoses To Ejector Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the hose clamp bracket to the outer cowl top panel sub-assembly with the 2 nuts.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  Fig 2: Locating Ejector Tube Nuts
