EJECTOR TUBE (for 1 AR-FE): Inspection

INSPECT EJECTOR TUBE
1. Inspect that the ejector tube has no deformation or cracks.

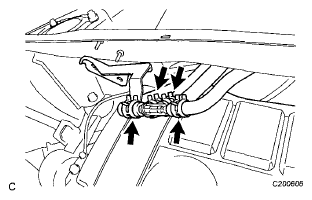

  Fig 1: Locating Ejector Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

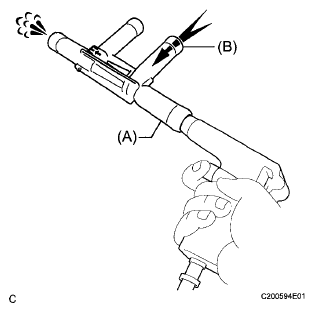

2. Check that suction occurs at the port (B) when applying compressed air into the port (A). If any of the defects is found, replace the ejector tube with a new one.

  Fig 2: Checking Suction Occurs Port
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
