EJECTOR TUBE (for 1 AR-FE): Components

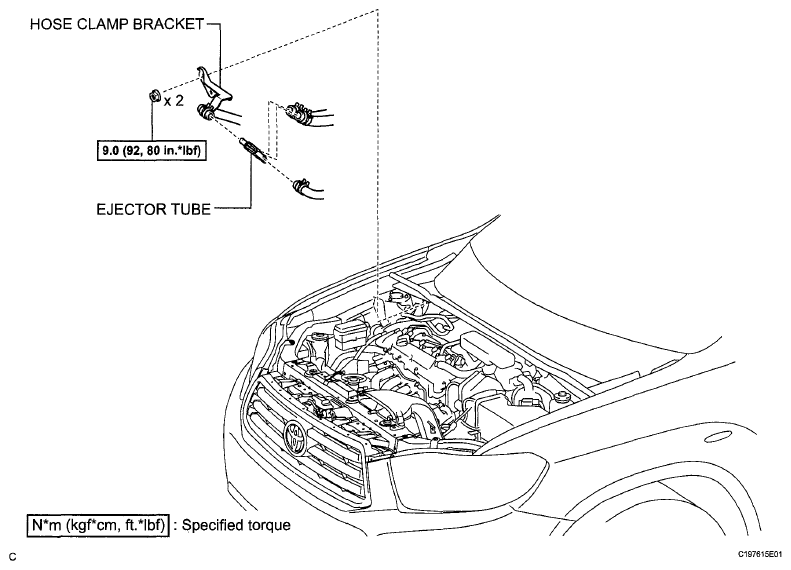

Fig 1: Ejector Tube (1 AR-FE) Replacement Components With Torque Specifications

G06116796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
