Brake Master Cylinder: Components

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 4)
G06120138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Booster Replacement Components With Torque Specifications (2 Of 6)
G05417914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

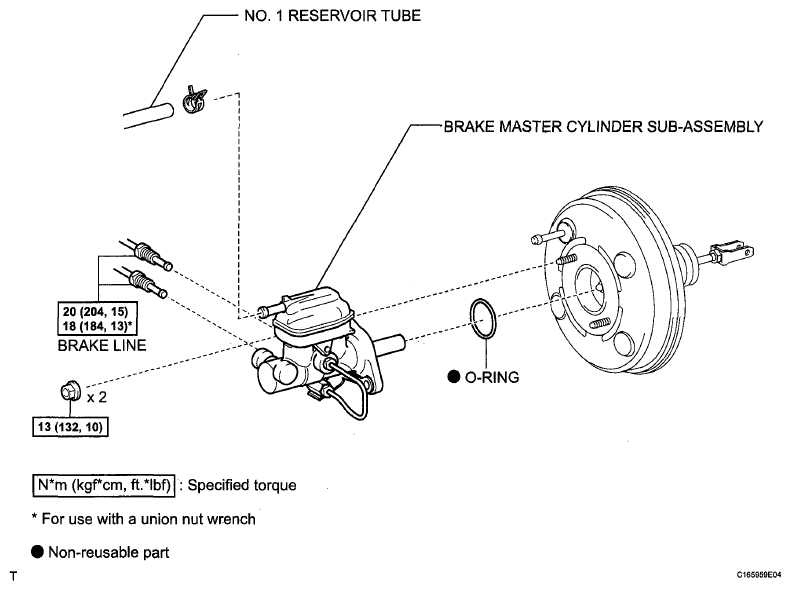

Fig 3: Brake Booster Replacement Components With Torque Specifications (4 Of 6)
G06116754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

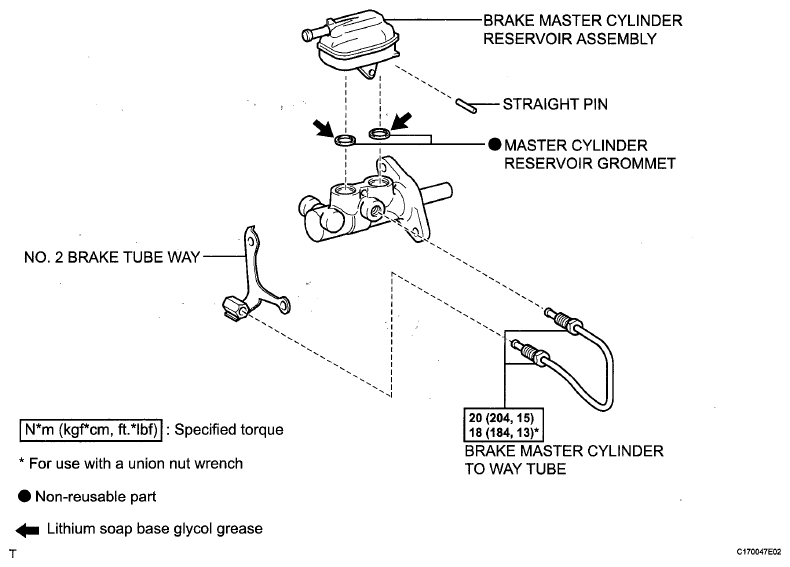

Fig 4: Brake Master Cylinder Replacement Components With Torque Specifications (4 Of 4)
G06116755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
