Brake Booster: Components

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 4)
G06120138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Booster Replacement Components With Torque Specifications (2 Of 6)
G05417914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

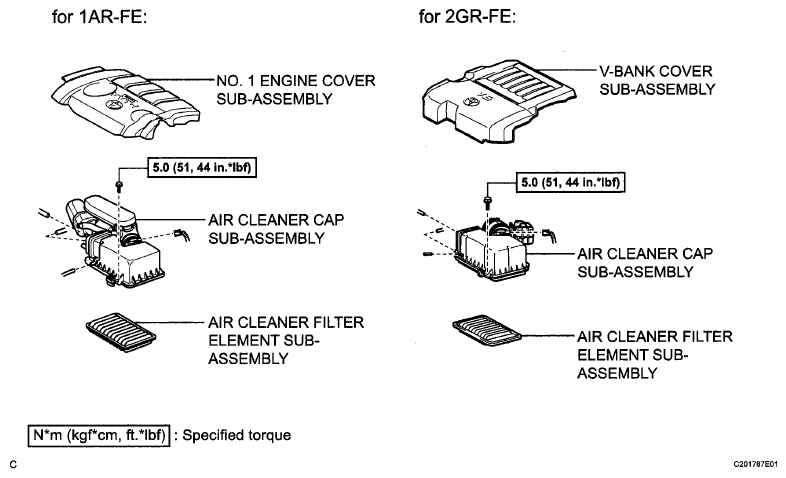

Fig 3: Brake Booster Replacement Components With Torque Specifications (3 Of 6)
G06116771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Brake Booster Replacement Components With Torque Specifications (4 Of 6)
G06116754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

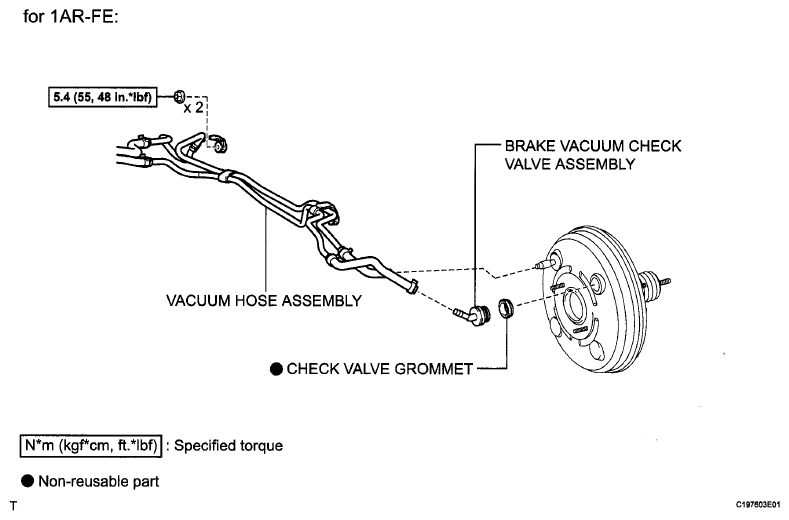

Fig 5: Brake Booster Replacement Components With Torque Specifications (5 Of 6)
G06116773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

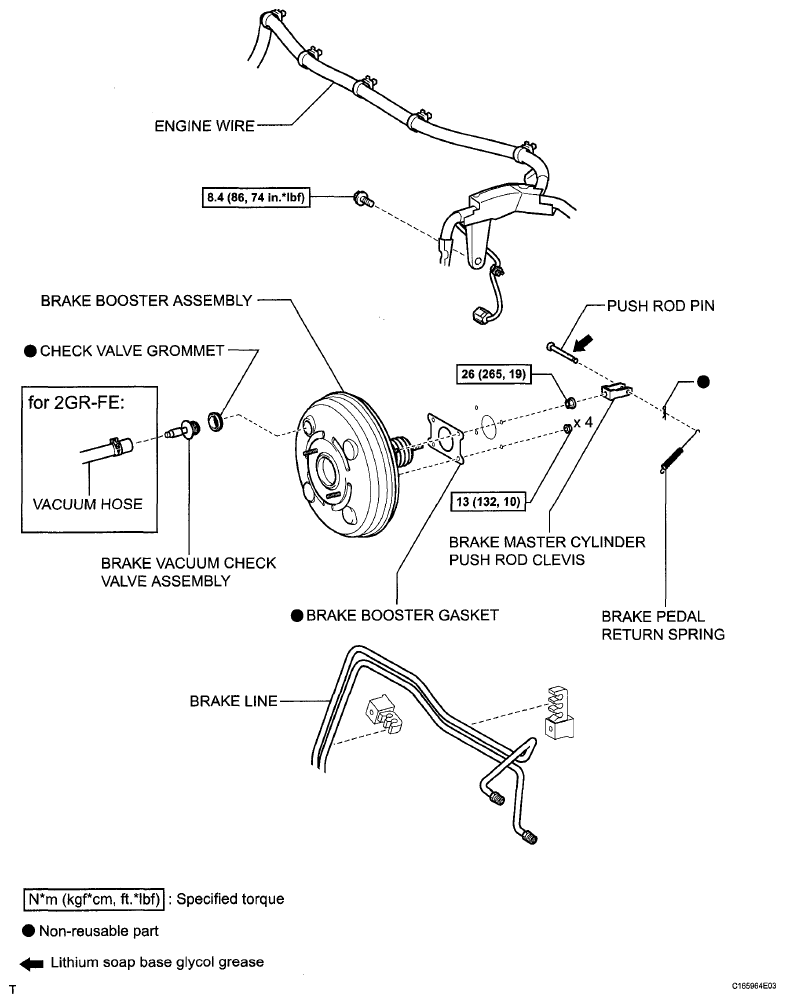

Fig 6: Brake Booster Replacement Components With Torque Specifications (6 Of 6)
G06116774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
