REAR NO. 1 SEAT ASSEMBLY (for LH Side): Disassembly: Reassembly

  1. INSTALL REAR SEAT CUSHION SPRING ASSEMBLY
    1. Using a T45 "TORX" socket wrench, install the rear seat cushion spring assembly with the 4 bolts and 2 bushes.

      Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

    Fig 1: Identifying Rear Seat Cushion Spring Assembly And Bolts
    G06113539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR SEAT HOOK
    1. Engage the claw to install the rear seat hook.
    Fig 2: Installing Rear Seat Hook
    G06113541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 REAR SEAT RECLINING CONTROL CABLE
    1. Engage the claw.
    2. Engage the rear seat hook.
    3. Engage the 4 cable clamps to install the No. 2 rear seat reclining control cable.
    Fig 3: Identifying No. 2 Rear Seat Reclining Control Cable, Rear Seat Hook And Claws
    G06113537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 REAR SEAT RECLINING CONTROL CABLE (w/ Remote Folding Function)
    1. Install the clamp.
    2. Engage the 2 clamps.
    3. Engage the 6 cable clamps to install the No. 1 rear seat reclining control cable.
    Fig 4: Locating No. 1 Rear Seat Reclining Control Cable And Clamp
    G06113536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 2 REAR SEAT COVER
    1. Install the No. 2 rear seat cover.
    Fig 5: Installing No. 2 Rear Seat Cover
    G06113535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR SEAT CUSHION SIDE COVER
    1. Engage the claw.
    2. Install the rear seat cushion side cover with the 2 screws.
    Fig 6: Locating Rear Seat Cushion Side Cover And Screws
    G05421677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR NO. 2 SEATBACK COVER
    1. Engage the claw.
    2. Install the rear No. 2 seatback cover with the 2 screws.
    Fig 7: Identifying Separate Type Rear No. 1 Seatback Cover
    G06113546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR NO. 1 SEAT SHOULDER BELT COVER
    1. Engage the guide.
    2. Engage the claw to install the rear No. 1 seat shoulder belt cover.
  9. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY  (See INSTALLATION )
    Fig 8: Identifying Rear No. 1 Seat Shoulder Belt Cover And Guide
    G06113532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL BELT SUPPORT PLATE
    1. Engage the 3 claws to install the belt support plate.
    Fig 9: Identifying Belt Support Plate And Claws
    G06121942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL SEPARATE TYPE REAR NO. 1 SEATBACK COVER
    1. Using hog ring pliers, install the separate type rear No. 1 seatback cover with 10 new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.
    Fig 10: Installing Separate Type Rear No. 1 Seatback Cover And Hog Rings
    G05421684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR NO. 1 SEATBACK COVER WITH PAD
    1. Engage the hooks to install the rear No. 1 seatback cover with pad.
    Fig 11: Locating Rear No. 1 Seatback Cover With Pad
    G05421685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY RH
    1. Engage the 2 claws to install the rear No. 1 seat headrest support assembly RH.
    Fig 12: Identifying Rear No. 1 Seat Headrest Support Assembly RH And Claws
    G06113528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY LH
    1. Engage the 2 claws to install the rear No. 1 seat headrest support assembly LH.
    Fig 13: Identifying Rear No. 1 Seat Headrest Support Assembly LH
    G06113552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY
    1. Engage 2 guides.
    2. Engage the 2 clips.
    3. Engage the 19 claws to install the rear seatback board carpet assembly as shown in the illustration.
    Fig 14: Identifying Rear Seatback Board Carpet Assembly And Clips
    G06113553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR SEATBACK LOCK ASSEMBLY
    1. Install the rear seatback lock assembly with the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

    Fig 15: Identifying Rear Seatback Lock Assembly And Bolts
    G06113525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL REAR SEATBACK LOWER LOCK BEZEL
    1. Install the rear seatback lower lock bezel with the 2 screws.
      Fig 16: Identifying Rear Seatback Lower Lock Bezel And Screws
      G06113555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the snap to install the rear seat track handle as shown in the illustration.
      Fig 17: Installing Rear Seat Track Handle
      G06113556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 4 claws.
    4. Install the rear center seat outer belt cover with the screw.
  18. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY  (See INSTALLATION )
  19. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Connect the rear seat lock control cable as shown in the illustration.
      Fig 18: Identifying Rear Center Seat Outer Belt Cover And Screw
      G06113522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

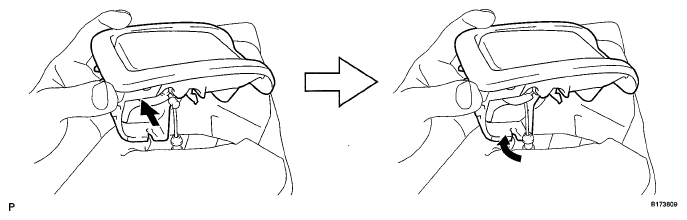

      Fig 19: Connecting Rear Seat Lock Control Cable
      G05421694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guide.
    3. Install the rear seat lock control lever sub-assembly with the 2 screws.
    Fig 20: Identifying Rear Seat Lock Control Lever Sub-Assembly
    G06113520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL REAR SEAT LOCK STRIKER COVER
    1. Engage the guide.
    2. Engage the claw to install the rear seat lock striker cover.
    Fig 21: Identifying Rear Seat Lock Striker Cover And Claw
    G06113560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL REAR SEATBACK COVER
    1. Engage the 4 claws to install the rear seatback cover.
    Fig 22: Identifying Rear Seatback Cover And Claw
    G05421697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL TONNEAU COVER HOOK HOLDER
    1. Install the 2 tonneau cover hook holders with the 2 screws.
    Fig 23: Identifying Tonneau Cover Hook Holders And Screws
    G06113517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL REAR SEAT ARMREST ASSEMBLY
    1. Install the rear seat armrest assembly with the bolt.

      Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

    Fig 24: Identifying Rear Seat Armrest Assembly And Bolt
    G05421658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL NO. 1 SEAT ARMREST CAP
    1. Engage the 2 claws to install the No. 1 seat armrest cap.
  25. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY  (See INSTALLATION )
    Fig 25: Identifying No. 1 Seat Armrest Cap And Claws
    G05421700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL REAR SEAT RECLINING INNER COVER
    1. Engage the guide.
    2. Install the rear seat reclining inner cover with the screw.
    Fig 26: Identifying Rear Seat Reclining Inner Cover And Guide
    G06113514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL SEAT TRACK UPPER RAIL COVER
    1. Engage the claw.
    2. Install the seat track upper rail cover with the screw.
    Fig 27: Identifying Seat Track Upper Rail Cover And Claw
    G06113513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL RECLINING ADJUSTER INSIDE COVER LH
    1. Engage the guide to install the reclining adjuster inside cover LH.
    Fig 28: Identifying Reclining Adjuster Inside Cover LH
    G06113512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL REAR SEAT NO. 1 RECLINING COVER
    1. Engage the 2 guides.
    2. Engage the claw.
    3. Install the rear seat No. 1 reclining cover with the screw.
    Fig 29: Identifying Rear Seat No. 1 Reclining Cover
    G06113511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL NO. 1 REAR SEAT COVER (for Rear Side)
    1. Engage the 2 hooks to install the No. 1 rear seat cover.
    Fig 30: Locating No. 1 Rear Seat Cover And Hooks
    G06113510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL NO. 1 REAR SEAT COVER (for RH Side)
    1. Engage the 2 hooks to install the No. 1 rear seat cover.
    Fig 31: Locating No. 1 Rear Seat Cover And Hooks
    G06113509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL NO. 1 REAR SEAT COVER (for LH Side)
    1. Engage the 4 hooks to install the No. 1 rear seat cover.
    Fig 32: Installing No. 1 Rear Seat Cover And Hooks
    G06113508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL SEPARATE TYPE REAR NO. 1 SEAT CUSHION COVER
    1. Using hog ring pliers, install the separate type rear No. 1 seat cushion cover with 11 new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.
    Fig 33: Installing No. 1 Seat Cushion Cover And Hog Rings
    G05421705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL REAR NO. 1 SEAT CUSHION COVER WITH PAD
    1. Using hog ring pliers, install 3 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

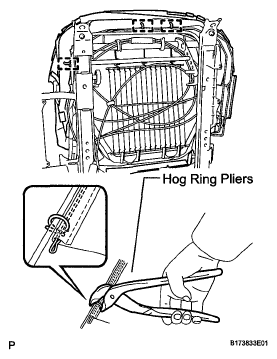

      Fig 34: Installing Rear No. 1 Seat Cushion Cover With Pad
      G05421706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 12 hooks.
      Fig 35: Locating Rear No. 1 Seat Cushion Cover Hooks
      G06113505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 3 buttons.
      Fig 36: Locating Rear No. 1 Seat Cushion Cover Buttons
      G06113504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using hog ring pliers, install 2 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
    5. Install the 2 hooks.

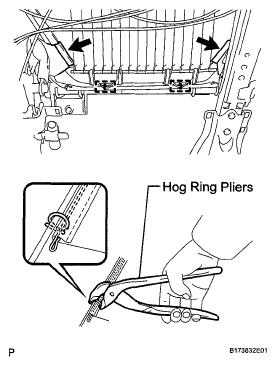

      Fig 37: Installing Hog Rings Using Hog Ring Pliers
      G05421708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Engage the 2 hooks to install the rear No. 1 seat cushion cover with pad.
    Fig 38: Identifying Rear No. 1 Seat Cushion Cover With Pad And Hooks
    G05421648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL REAR SEAT FRONT CUSHION MOULDING
    1. Install the rear seat front cushion moulding with the screw.
    Fig 39: Identifying Rear Seat Front Cushion Moulding And Screws
    G06113501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL REAR SEAT LOCK ASSEMBLY
    1. Install the rear seat lock assembly with the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

    Fig 40: Identifying Rear Seat Lock Assembly And Bolts
    G06113500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL NO. 2 REAR SEAT BEZEL COVER
    1. Temporarily install the No. 2 rear seat bezel cover as shown in the illustration.
    2. Engage the 2 guides.
    3. Install the rear seat bezel cover with the screw.
    Fig 41: Locating No. 2 Rear Seat Bezel Cover
    G05421711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL REAR SEAT CUSHION UNDER COVER
    1. Engage the guide.
    2. Engage the claw to install the rear seat cushion under cover.
    Fig 42: Identifying Rear Seat Cushion Under Cover
    G05421712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL REAR SEAT 3 POINT TYPE COVER ASSEMBLY
    1. Engage the 2 claws to install the rear seat 3 point type cover assembly.
    Fig 43: Identifying Rear Seat Point Type Cover Assembly
    G06113582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL REAR SIDE SEAT BAND SUB-ASSEMBLY
    1. Install the rear side seat band sub-assembly.
    Fig 44: Identifying Rear Side Seat Band Sub-Assembly
    G06113496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL NO. 2 SEAT LEG COVER
    1. Install the No. 2 seat leg cover with the 5 screws.
    Fig 45: Identifying No. 2 Seat Leg Cover With Screws
    G06113584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL REAR SEAT NO. 2 LEG SIDE COVER
    1. Engage the 2 claws to install the rear seat No. 2 leg side cover.
    Fig 46: Identifying Rear Seat No. 2 Leg Side Cover And Claws
    G06113494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL CENTER PROTECTOR COVER
    1. Temporarily install the center protector cover.
    2. install the rear side seat band sub-assembly with the screw.
      Fig 47: Identifying Rear Side Seat Band Sub-Assembly And Screws
      G06113493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the claw and guide.
    4. Install the center protector cover with the screw.
    Fig 48: Identifying Claw And Guide
    G06113492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL SEAT ADJUSTER COVER CAP
    1. Engage the 2 claws to install the seat adjuster cover cap.
    Fig 49: Identifying Seat Adjuster Cover Cap And Claws
    G06113588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL SEAT ADJUSTER COVER CAP
    1. Engage the 2 claws to install the seat adjuster cover cap.
    Fig 50: Identifying Seat Adjuster Cover Cap And Claws
    G06113589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL REAR SEAT CUSHION MOULDING RH
    1. Engage the 6 claws.
    2. Install the rear seat cushion moulding RH with the screw.
    Fig 51: Installing Rear Seat Cushion Moulding RH And Claws
    G05421643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSTALL SEAT ADJUSTER COVER CAP
    1. Engage the 2 claws to install the seat adjuster cover cap.
    Fig 52: Identifying Seat Adjuster Cover Cap And Claws
    G06113591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL REAR SEAT CUSHION MOULDING LH
    1. Engage the guide.
    2. Engage the 5 claws.
    3. Install the rear seat cushion moulding LH with the screw.
    Fig 53: Identifying Rear Seat Cushion Moulding LH, Guide And Claws
    G06113592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE
    1. Install the No. 1 reclining adjuster release handle with the 3 screws.
    Fig 54: Installing No. 1 Reclining Adjuster Release Handle And Screws
    G06113486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL REAR SEAT RECLINING UPPER COVER
    1. Engage the 3 claws to install the rear seat reclining upper cover.
    Fig 55: Identifying Rear Seat Reclining Upper Cover And Claws
    G05421718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
