Back Door: Components

Fig 1: Back Door Replacement Components With Torque Specifications (1 Of 5)
G05422262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Back Door Replacement Components With Torque Specifications (2 Of 5)
G05422263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

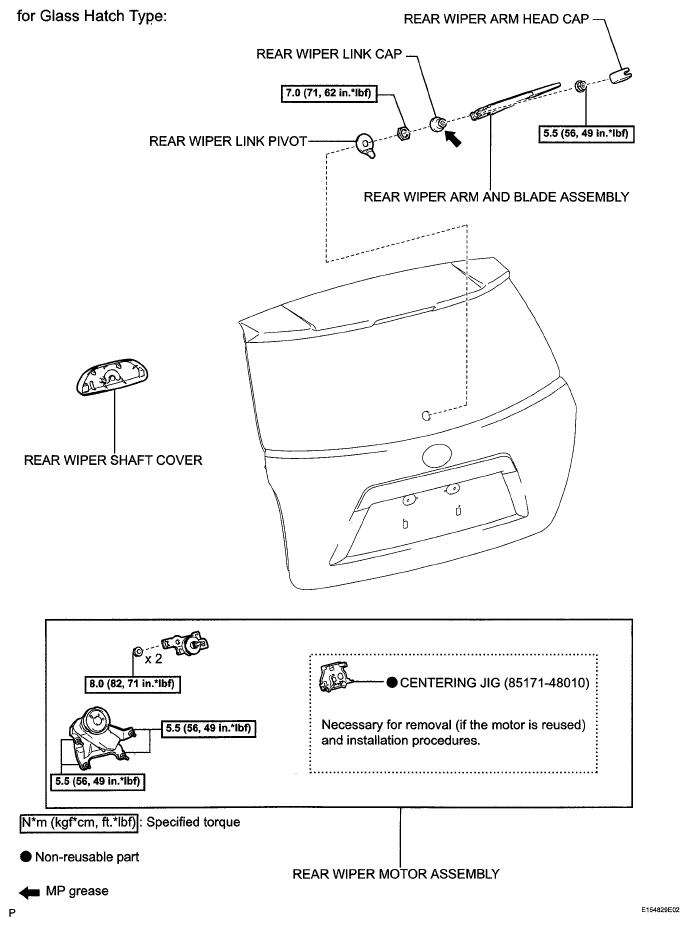

Fig 3: Back Door Replacement Components With Torque Specifications (3 Of 5)
G05627141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

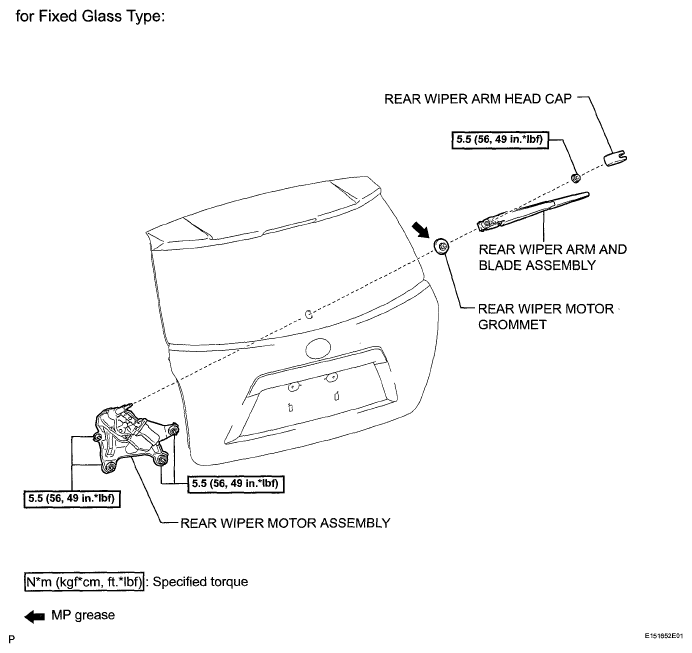

Fig 4: Back Door Replacement Components With Torque Specifications (4 Of 5)
G05627435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Back Door Replacement Components With Torque Specifications (5 Of 5)
G05422266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
