DTC B2251 Back Door Closer Switch Malfunction: Wiring Diagram

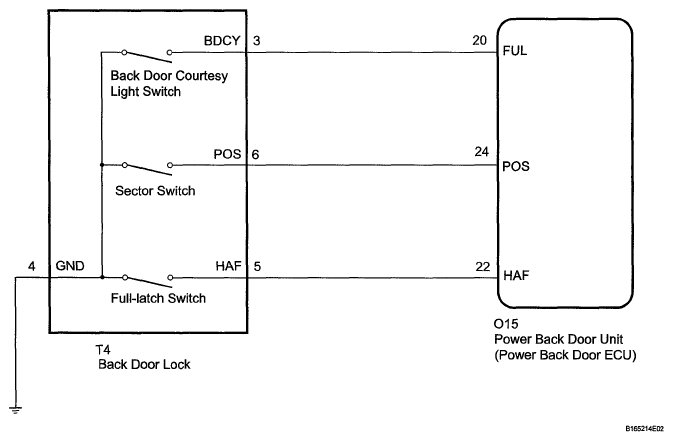

Fig 1: Back Door Closer Switch Malfunction - Wiring Diagram

G05422015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
