Parts Location

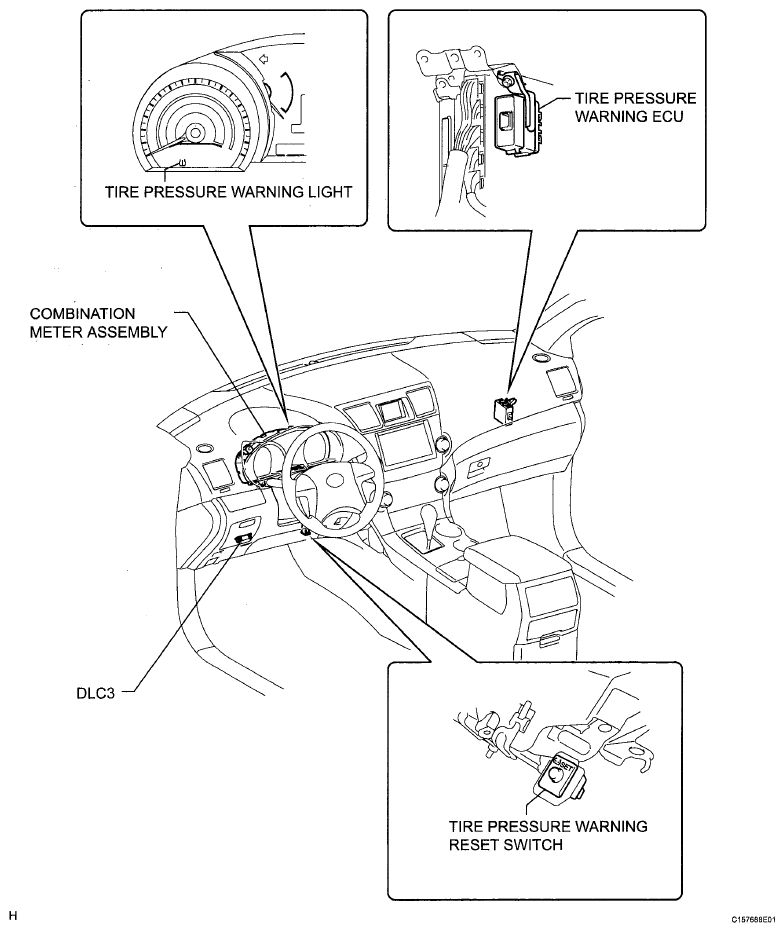

Fig 1: Identifying Tire Pressure Warning System Parts Location (1 Of 2)
G06120454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

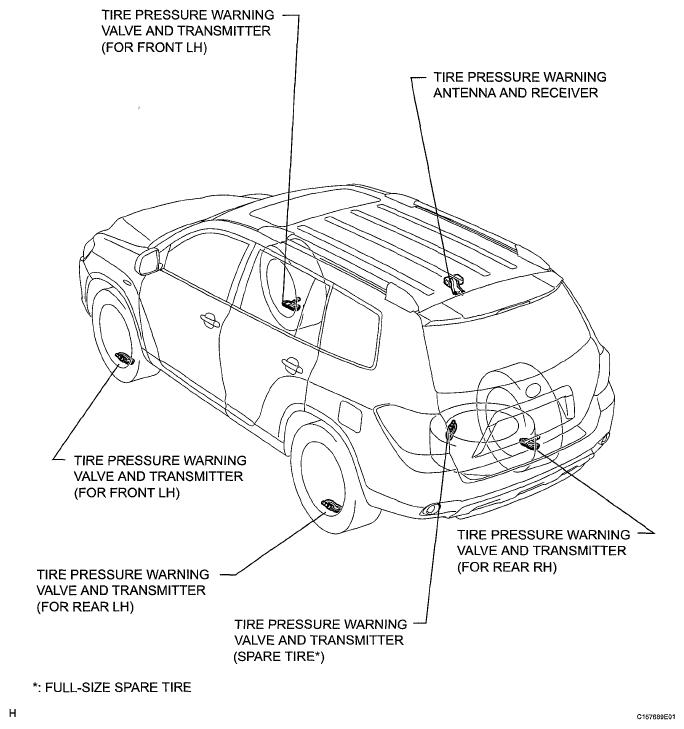

Fig 2: Identifying Tire Pressure Warning System Parts Location (2 Of 2)
G05417567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
