DTC C2191/91 Vehicle Speed Signal Error (Test Mode DTC): Wiring Diagram

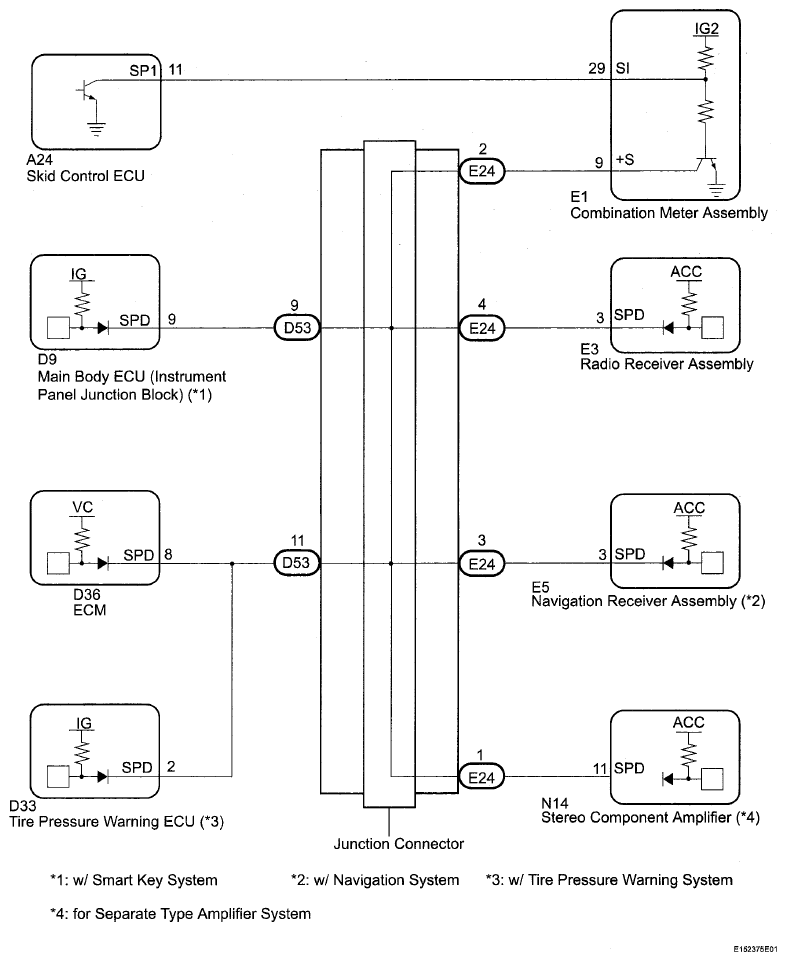

Fig 1: Vehicle Speed Signal - Wiring Diagram

G06120483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
