Inspection Procedure

NOTE:
  • When replacing the tire pressure warning ECU, read the transmitter IDs stored in the old ECU using Techstream and write them down before removal.
  • It is necessary to perform initialization (See INITIALIZATION ) after registration (See REGISTRATION ) of the transmitter IDs into the tire pressure warning ECU if the ECU and/or any of the valve and transmitters have been replaced.
  1. IDENTIFY TRANSMITTER NOT RECEIVED
    1. Set the tire pressure to the appropriate specified values (See TIRE PRESSURE WARNING SYSTEM ).
    2. Turn the ignition switch off.
    3. Connect Techstream to the DLC3.
    4. Turn the ignition switch on (IG) and turn the tester on.
    5. Enter the following menus: Chassis/Tire Pressure Monitor/Data List.
    6. Check the values by referring to the table below.

      Tire Pressure Monitor

      TESTER DISPLAY REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ID1 Tire Inflation Pressure ID1 tire inflation pressure/
      min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0kgf/cm2 , -14 psi)
      max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
      ID2 Tire Inflation Pressure ID2 tire inflation pressure /
      min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure 1 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
      ID3 Tire Inflation Pressure ID3 tire inflation pressure /
      min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
      ID4 Tire Inflation Pressure ID4 tire inflation pressure /
      min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 ,-14 psi)
      max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
      ID5 Tire Inflation Pressure ID5 tire inflation pressure /
      min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 ,-14 psi)
      max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
      HINT:
      (1) It may take about 2 or 3 minutes until the values are displayed.
    7. Rapidly reduce the tire pressure for each wheel by at least 40 kPa (0.4 kgf/cm2 , 5.8 psi) within 30 seconds.
    8. Check the DATA LIST.
      NOTE:
      • It takes about 2 or 3 minutes to display the updated tire pressure data.
      • When the "ID Tire Inflation Pressure" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270°. Then rapidly release the tire pressure and recheck the data.
      • Record the "ID Tire Inflation Pressure" data transmitter ID that corresponds to each tire.
    9. After confirming that the "ID Tire Inflation Pressure" data for one tire (ID1 to ID5) has changed, repeat this procedure one by one. Identify the transmitter not received.

    Result

    RESULT REFERENCE

    Condition Proceed to
    One or more of transmitters abnormal A
    All normal B

    B: END

    A: Go to next step

  2. CHECK TRANSMITTER ID
    1. Turn the ignition switch off.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch on (IG) and turn the tester on.
    4. Enter the following menus: Chassis/Tire Pressure Monitor/Data List.
    5. Check the values by referring to the table below.

      Tire Pressure Monitor

      TESTER DISPLAY REFERENCE

      Tester Display Measurement Item/Display Normal Condition Diagnostic Note
      Registered ID1 Code Registered ID1 code/
      min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID1 is displayed *: Displayed only when the ID No. is not registered.
      Registered ID2 Code Registered ID2 code/
      min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID2 is displayed *: Displayed only when the ID No. is not registered.
      Registered ID3 Code Registered ID3 code/
      min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID3 is displayed *: Displayed only when the ID No. is not registered.
      Registered ID4 Code Registered ID4 code/
      min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID4 is displayed *: Displayed only when the ID No. is not registered.
      Registered ID5 Code Registered ID5 code/
      min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID5 is displayed *: Displayed only when the ID No. is not registered.
    6. Check the ID number on the identified transmitter by removing it from the tire and wheel.

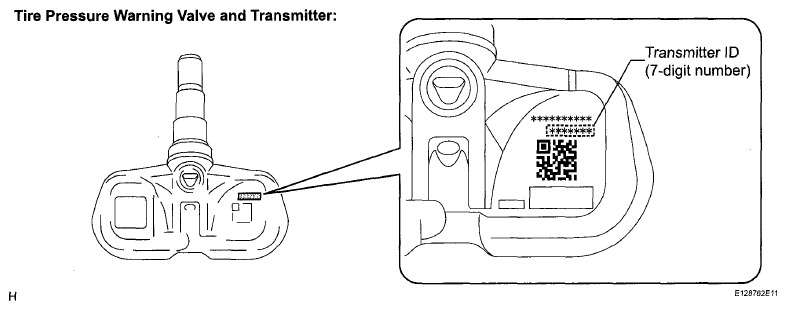

      Fig 1: Identifying 7-Digit Number Transmitter ID
      G06120459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Confirm that the ID number on the transmitter and recorded transmitter ID match.

    Result

    RESULT REFERENCE

    Result Proceed to
    Match A
    Do not match B

    B: Go to step  4

    A: Go to next step

  3. REPLACE TIRE PRESSURE WARNING VALVE AND TRANSMITTER
    1. Replace the tire pressure warning valve and transmitter (See REMOVAL ).
  4. REGISTRATION OF TRANSMITTER ID
    1. Perform registration (See REGISTRATION ).
  5. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
  6. CONFIRM TIRE INFLATION PRESSURE (DATA LIST)
    1. Turn the ignition switch off.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch on (IG) and turn the tester on.
    4. Enter the following menus: Chassis/Tire Pressure Monitor/Data List.
    5. Check the values by referring to the table below.

    Tire Pressure Monitor

    TESTER DISPLAY REFERENCE

    Tester Display Measurement Item/Range Normal Condition Diagnostic Note
    ID1 Tire Inflation Pressure ID1 tire inflation pressure/
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure /-100 kPa (-1.0kgf/cm2 ,-14psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    ID2 Tire Inflation Pressure ID2 tire inflation pressure /
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 ,-14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    ID3 Tire Inflation Pressure ID3 tire inflation pressure /
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 , -14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    ID4 Tire Inflation Pressure ID4 tire inflation pressure /
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 , -14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    ID5 Tire Inflation Pressure ID5 tire inflation pressure /
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 , -14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    HINT:
    • (1) It may take about 2 or 3 minutes until the values are displayed.
    • When the "ID Tire Inflation Pressure" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270°. Then rapidly release the tire pressure and recheck the data.

    Result

    RESULT REFERENCE

    Result Proceed to
    Tire pressure values are not displayed. A
    All tire pressure readings are equal to specified values. B

    B: END

    A: Go to next step

  7. REPLACE TIRE PRESSURE WARNING ANTENNA AND RECEIVER
    1. Replace the tire pressure warning antenna and receiver (See TIRE PRESSURE WARNING RECEIVER (W/ ANTENNA) ).
  8. CONFIRM TIRE INFLATION PRESSURE (DATA LIST)
    1. Turn the ignition switch off.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch on (IG) and turn the tester on.
    4. Enter the following menus: Chassis/Tire Pressure Monitor/Data List.
    5. Check the values by referring to the table below.

    Tire Pressure Monitor

    TESTER DISPLAY REFERENCE

    Tester Display Measurement Item/Range Normal Condition Diagnostic Note
    ID1 Tire Inflation Pressure ID1 tire inflation pressure/
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 , -14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    ID2 Tire Inflation Pressure ID2 tire inflation pressure /
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 , -14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    ID3 Tire Inflation Pressure ID3 tire inflation pressure /
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 ,-14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    ID4 Tire Inflation Pressure ID4 tire inflation pressure /
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 ,-14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537f5 kPa (5,4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    ID5 Tire Inflation Pressure ID5 tire inflation pressure /
    min.: Absolute pressure/0 kPa (0 kgf/cm2 , 0 psi), Relative pressure/-100 kPa (-1.0 kgf/cm2 ,-14 psi)
    max.: Absolute pressure/637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure/537.5 kPa (5.4 kgf/cm2 , 78 psi)    		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.(1)
    HINT:
    • (1) It may take about 2 or 3 minutes until the values are displayed.
    • When the "ID Tire Inflation Pressure" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270°. Then rapidly release the tire pressure and recheck the data.

    Result

    RESULT REFERENCE

    Result Proceed to
    All tire pressure readings are equal to specified values. A
    Tire pressure values are not displayed. B

    B: REPLACE TIRE PRESSURE WARNING ECU  (See REMOVAL )

    A: END
