Tire Pressure Warning Ecu: Components

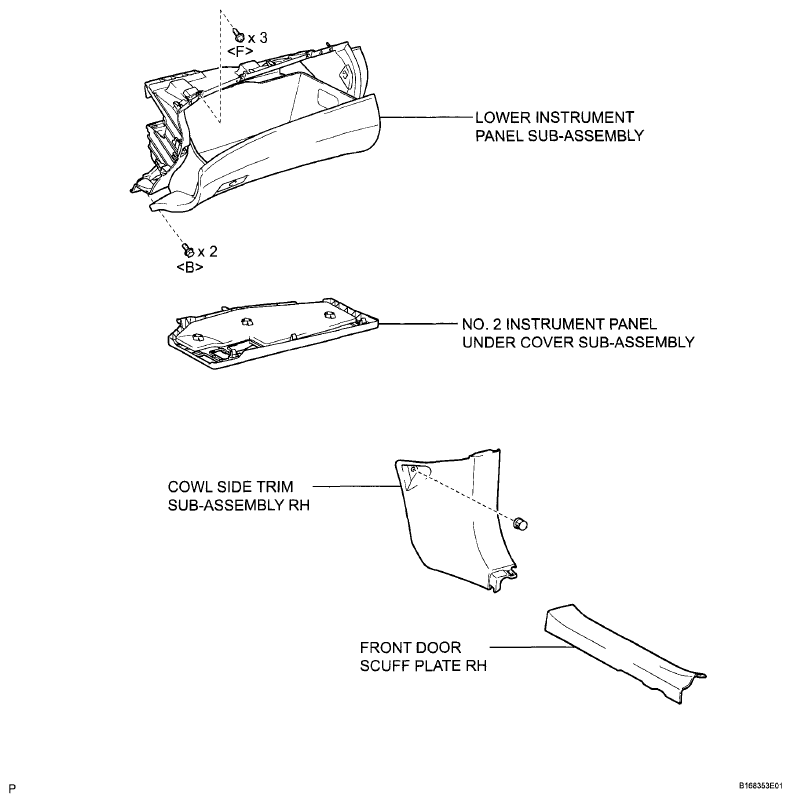

Fig 1: Tire Pressure Warning ECU Replacement Components With Torque Specifications (1 Of 2)
G06120512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

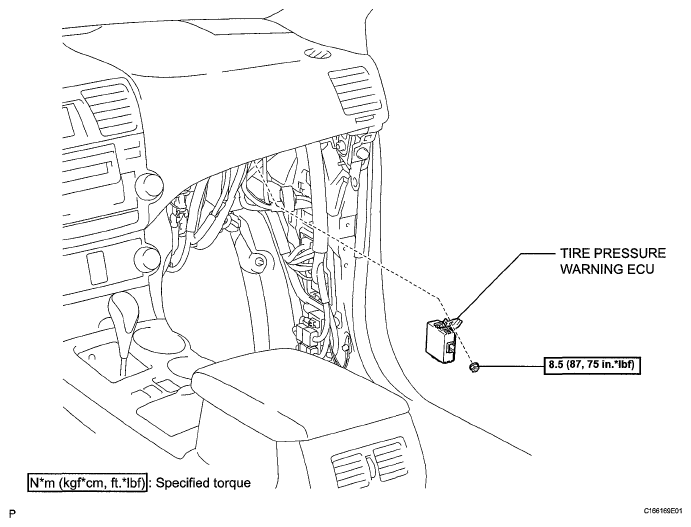

Fig 2: Tire Pressure Warning ECU Replacement Components With Torque Specifications (2 Of 2)
G05417625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
